Intelligent Fire Alarm Control Panel Addressable Fire Master Panel Security Host LPCB EN54 CE approved

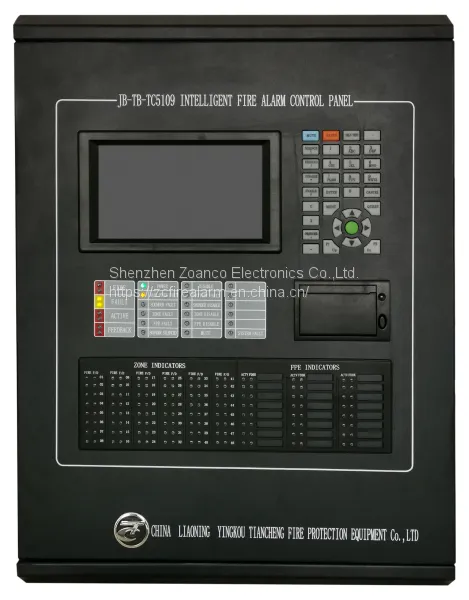

Intelligent Fire Alarm Control Panel 1-4Loops for your options

▪ Color menu display

▪ Intelligent bus control mode; max 255 addressable points

per loop, max 4 loops, max 48 zones

▪ Loop card type design:1-4 loop card can be seledted

▪ Glass fuse per loop

▪ Black box function

▪ Independent controlling password for the specially needed

gas recharging units

▪ Self-design loop protocol

▪ Wall-mounted structure, compact and exquisite

▪ Language: simplified Chinese and English

▪ Approvals：LPCB（EN54-2/4） CE

Technical Specifications

Mains supply AC230V (50HZ),Voltage range: +10%～-15%

Standby battery 12V/12AH sealed lead acid battery *2

LCD screen size 7-inch color LCD screen

Operating Environment Temperature: -5°C～+50°C;Relative Humidity: ≤95%, non-condensing

Capacity 1020 addressable points

Communication Interface RS232、RS485、CAN、USB

Dimension (L×W×H) 420mm×140mm×560mm

Output Five output. Fault output. 24V power output. Loop output
