Home > Products > Conventional call point/button/bell > Addressable sounder strobe Intelligent Sound Buzzer Fire Protection Audible and Visual Alarm LPCB EN54 CE approved

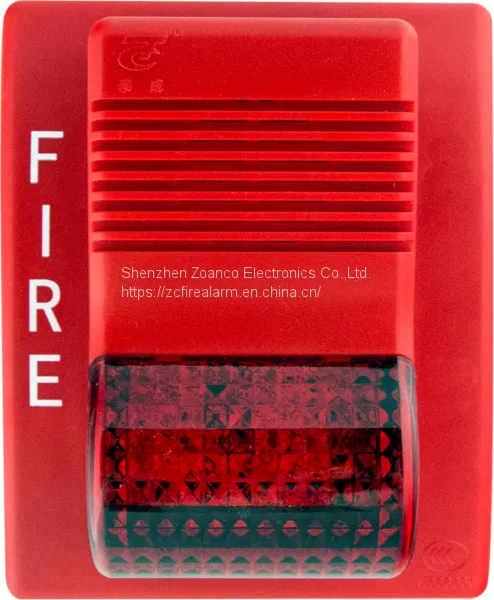

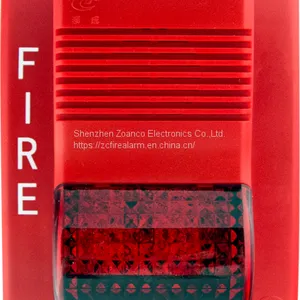

Addressable sounder strobe Intelligent Sound Buzzer Fire Protection Audible and Visual Alarm LPCB EN54 CE approved
USD $8.50 - $9.00
/ Piece
100 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- shenzhen
- T/T PayPal Other
- 7 days
You May Like
-
Conventional Photoelectric Smoke& Heat Detector Multi Sensor Fire Alarm Heat Smoke Detector
-
Conventional Smoke Detector Fire Alarm System Sensor Smoke Alarm DC24V Probe Detector
-
Conventional Heat Detector 2 wired Temperature Sensor Fixed Temperature Heat Alarm
-
4 wired Ultraviolet Flame Detector with Relay Output UV Flame Alarm Sensor with Waterproof Shell
-
New Arrivel Mini Smoke Detector S832 With Relay Output 4 Wire Smoke Alarm Can Adsorption Metal Cabinet
-
Push in Pull Down Call Point Manual Call Point Fire Alarm Button DC24v for conventional fire alarm system
Product Details
| Brand Name | TC | Place of Origin | China | |
| Model Number | TCSG5266 |
Product Description
Addressable sounder strobe Intelligent Sound Buzzer Fire Protection Audible and Visual Alarm LPCB EN54 CE approved
▪ Installed in public places
▪ A kind of audio and visual alarm device used to warn people in field
when fire occurs
▪ Four wires:non-polarized signal two-wire, and non-polarized
DC24V power two-wire
▪ Built-in microprocessor
▪ Self-diagnostic function
▪ Electronically coding
▪ Approvals：LPCB（EN54-3） CE
Technical Specification
Operating voltage Loop: 24V (16V～28V);Power: DC24V (DC19V～DC28V)
Standby current Loop: ≤0.2mA;Power: ≤0.5mA
Active current Loop: ≤1.5mA;Power: ≤50mA
Operating Environment
Indoor (Non-residential);Temperature: -10°C～+50°C;
Relative Humidity: ≤95%（40±2°C）
Sound level 80dB～115dB (A weighted)
Pitch shift periodic 3.5S～4.5S
Basic flashing frequency 1Hz～2Hz
Weight 200g
Dimension (L×W×H) 115mm×55.3mm×140mm
