Conventional 4 zones Fire Alarm Control Panel Security Alarm control panel Fire Host

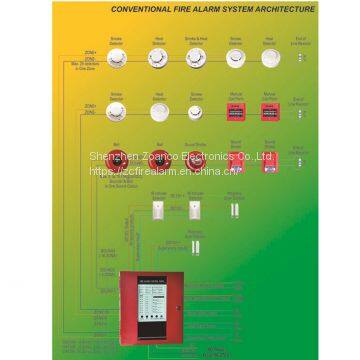

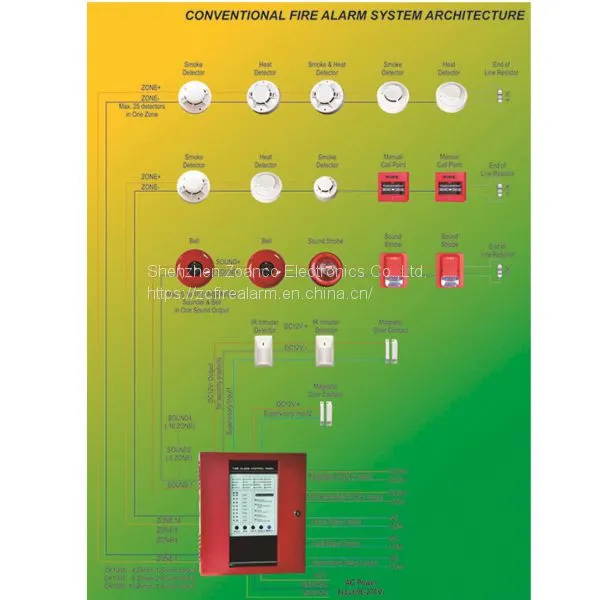

The PANEL is a 4-zone to 16-zone FACP (Fire Alarm Control Panel), which uses conventional input devices.
The panel accepts water flow devices, two-wire smoke detectors, four-wire smoke detectors, pull stations and

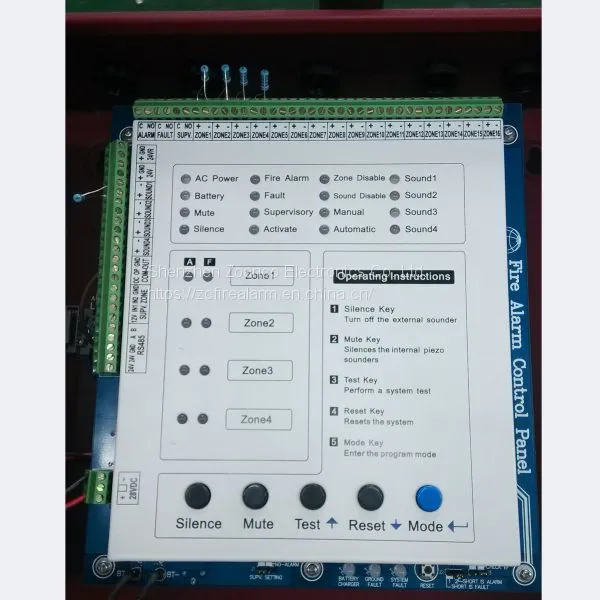

other normally-open contact devices. Outputs include four Notification Appliance Circuits (NAC, SOUND1-4),
three standard Form-A relays (alarm, trouble and supervisory) and an EIA-485 port to interface with remote
annunciators and optional remote relay modules. The FACP is field programmable via the panel keypad. It also
supervises all wiring, AC voltage and battery level.
1.1 Product Features
4,8,16 Class B Initiating Device Circuits (IDCs)
✓ All zones accept conventional detectors and any normally open contact device
Four Class B Notification Appliance Circuits (NACs)
One Form-A Alarm Relay
One Form-A Trouble Relay
One Form-A Supervisory Relay
3.0 amps of system power
Max 30 conventional detectors in one zone.
Auto/Manual mode setting enable walk test.
Each Zone can be disabled,
Sound output can be disabled.
Manual active sound output enabled.
Able to report short and broken circuit of detection zones.
Designed with standby batteries and space provision for two sealed lead-acid batteries.
Testing and disable functions.
Can connect max 32 repeater panels by RS485 communication port
Dimensions : 14.57" (37 cm) long X 17.32" (44 cm) high X 3.94"(10cm).
Weight: 6.6kg (without battery).
