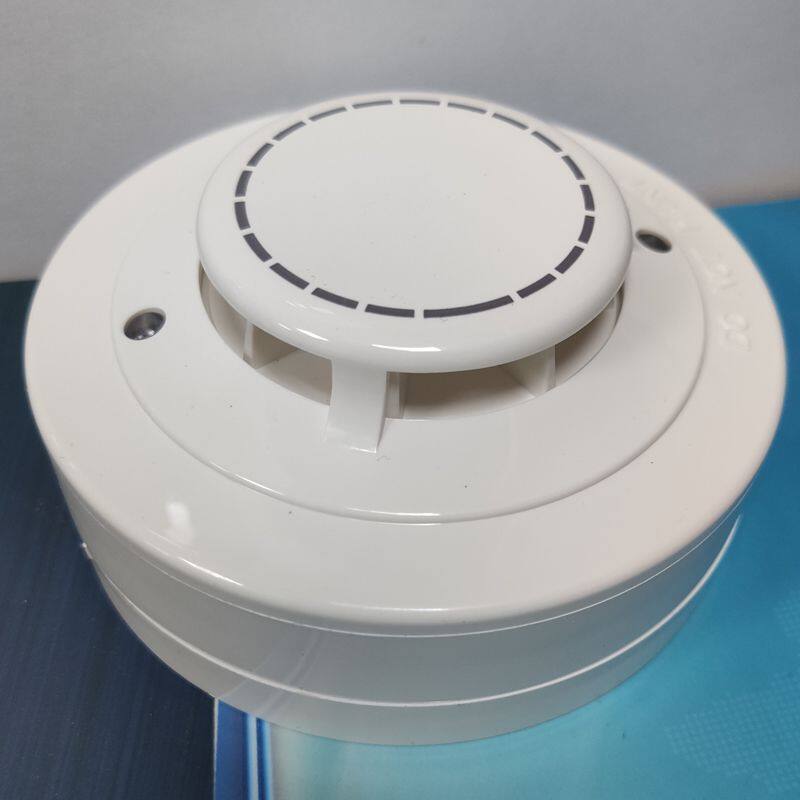

Conventional Smoke Detector Fire Alarm System Sensor Smoke Alarm DC24V Probe Detector
1. GENERAL DESCRIPTION
The detectors are photo-electronic detector uses a state of-the-art
optical sensing chamber. This detector is designed to provide open
area protection and to be used with most conventional fire alarm
panel.
Two LEDs on each detector provide local 360° visible alarm
indication. They flash every six seconds indicating that power is
applied and the detector is working properly. The LEDs latch on in
alarm. LEDs will be off when a trouble condition exists indicating
that the detector sensitivity is outside the listed limit. The alarm can
be reset only by a momentary power interruption.
The detector that initiated the alarm condition will have its red LED
and relays latched until reset by panel.
2. SPECIFICATIONS
Operating Voltage Range: 9 to 28 VDC Volts Non-polarized
Standby Current: ≤60μA@24VDC
Maximum Alarm Current (LED on): ≤30mA@24VDC
(1K Ohm current-limiting resistance)
Operating Humidity Range: ≤95%RH(40°C±2°C) Relative Humidity, Non-condensing
Operating Temperature Range: -10°C to 50°C (14°F to 122°F)
Smoke Alarm Sensitivity: 0.15-0.3dB/m
Temperature Alarm Class: A2R, 57°C (135°F)(only for with heat detector)
Height: 48 mm installed in Base
Diameter: 99 mm
