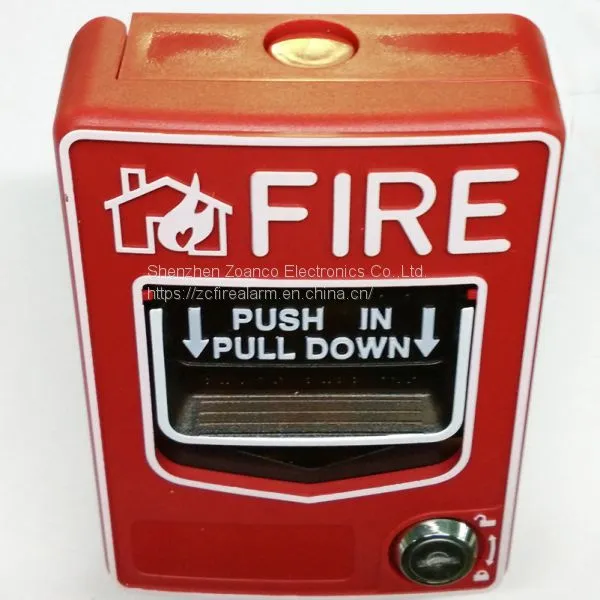

Push in Pull Down Call Point Conventional Manual Call Point Fire Alarm Button DC24v for conventional fire alarm system

Push in Pull Down Call Point Conventional Manual Call Point Fire Alarm Button DC24v for conventional fire alarm system

GENERAL DESCRIPTION

The conventional manual call point designed for

conventional fire alarm system for reporting fire or

emergency condition by its PUSH IN/PULL DOWN

handle latches. One 470 ohm resistor is used on the PCB

board between Zone+ and Zone- when the switch inside

is closed. So the conventional manual call point is only

used with conventional fire alarm control panel, it is

forbidden to be used to other system.

OPERATION

The manual call points provide a textured finger-hold

area that includes Braille text. In addition to PUSH IN

and PULL DOWN text, there are arrows indicating how

to operate the station, provided for non-English-speaking

people.

Pushing in and then pulling down on the handle activates

the normally-open alarm switch. Once latched in the

down position, the word “ACTIVATED” appears at the

top in bright yellow, with a portion of the handle

protruding at the bottom as a visible flag.

Resetting the station is simple: insert the key, twist one

quarter-turn, then open the station’s front cover, causing

the spring-loaded operation handle to return to its original

position. The alarm switch can then be reset to its normal

(non-alarm) position manually (by hand) or by closing the

station’s front cover, which automatically resets the

switch.

SPECIFICATIONS

Operating Voltage Range: 9 to 28VDC Volts

Alarm Resistance 470ohm/1W

Operating Humidity Range: 10% to 93% Relative Humidity, Non-condensing

Operating Temperature Range: -10°C to 50°C (14°F to 122°F)

Dimensions: Length 140mm, Width 105mm, Depth 45mm

Weight: Net Weight 220g
