700kw Hot Oil Boiler Thermic Fluid Heater Thermal Oil Furnace for concrete elements curing

700kw Hot Oil Boiler Thermic Fluid Heater Thermal Oil Furnace for concrete elements curing

thermal capacity:350kw-1400KW

Working pressure:0.8-1.0 MPA

Outlet temperature:320 C

Available fuel:natural gas, coke oven gas, bio-gas，liquefied petroleum gas, diesel, heavy oil, light oil, crude oil

Available industries:Petroleum, chemical, chemical fiber, pharmaceutical, textile printing and dyeing, building materials, wood processing, vegetable oil processing and other industries

Thermal oil boiler is a package type forced circulation fuel (gas) fired boiler, the heated area adopts compact structure and it is composed of internal,intermediate and external( or internal and external)disc coil tube, inner tube is the heating surface, while middle surface,outer surface and outer surface of inner tube constitute a convection heating surface. Fuel combusts in the combustion chamber that is composed of inner coil tube,then heat will be released, afterabsorbing most of the heat through radiation heating surface,high temperature gas enters into the convection heating surface and exchange heat,in the end,low temperature gas will be discharged from gas duct outlet,then it will be eliminated directly the atmosphere from smokestack.

Diagram of thermal oil boiler

All thermal oil boilers are assembly structure which is easy for installation by just connecting system device by pipes. Intelligent system control of thermal oil fluid haters makes boiler operation easier and more simple. Controller with imitation screen display has auto igniting, burning, circulation pumps control, alarm, etc. functions. hot oil boiler|the

Technical Parameters:

Performance characteristics:

1. High Quality and Reliable Oil Gas Burner.

High combustion efficiency and environmental protection.

2. Excellent coil design.

The spiral pipes are made of small diameter multi-head steel tubes, good thermal expansibility, low stress, safe and reliable.

3. Large Diameter Furnace.

Large radiation heating area, increase thermal efficiency and reduce the NOx emission.

4. High Thermal Efficiency.

1) Adopts three pass heating system, improve the heat utilization efficiency.

2) Uses aluminium silicate board for heat preservation, high thermal shielding efficiency.

3) By equipping with economizer, make full use of the heat of flue gas.

5. High Quality boiler auxiliaries and multiple safety protection devices.

(pressure controller, pressure transmitter, water level alarm, safety valve, etc.)

6. Excellent Automatic System.

Adopts PLC full automatic intelligent control system, to ensure the safe operation.

7. Convenient Maintenance

1)There are maintenance holes on the boiler, convenient for boiler internal installation, inspection and clean.

2)The explosion proof equipment has the fire sight glass and inspection gallery, it is convenient for furnace checking and maintaining.

Application

Thermal Oil boiler Can Be Used For the following Industry:

1.Petrochemical industry: Polymerization, Condensation, Distillation, Concentration, Evaporation, Melting, Dehydrogenation

2.Chemical Industry: Polymerization, Condensation, Distillation, Concentration, Evaporation, melting

Plastic Rubber Industry: Mixing, Hot Pressing, Extrusion Calendering, Internal Mixing, Open Rolling, Vulcanization Molding, Tentering, Mold Heating, Heat Preservation

3.Oil Industry: Decomposition of oil, Deodorization, Fatty Acid Distillation, Lipidation

4.Textile Industry: Heating Setting, Hot Melt Extrusion for Pharmaceutical Industry; Preparation, Configuration, Disinfection

5.Coating Industry: Paint Baking, Drying, High Temperature Curing

6.Construction Industry: Asphalt Dissolution, Paint Heating, Decorative Material Heating, Waterproof Material, Linoleum Product

7.Food Industry: Vegetables Dehydrating, Food Baking, Rice & flour  drying

8.Air Conditioning Industry: Heating for Industrial and Civil Building Heating

9.Other Industries: Paper Industry, Cardboard Industry, Leather Drying and Shaping, Other Drying

 10.Building materials industry: road bitumen heating, gypsum board drying, heating bitumen concrete, concrete elements curing, drying equipment. and other industries.

FAQ

What is the highest temperature that thermal oil heater could achieve?

thermal oil heater can reach as high as 330℃, and working under low pressure (<1.0MPa)

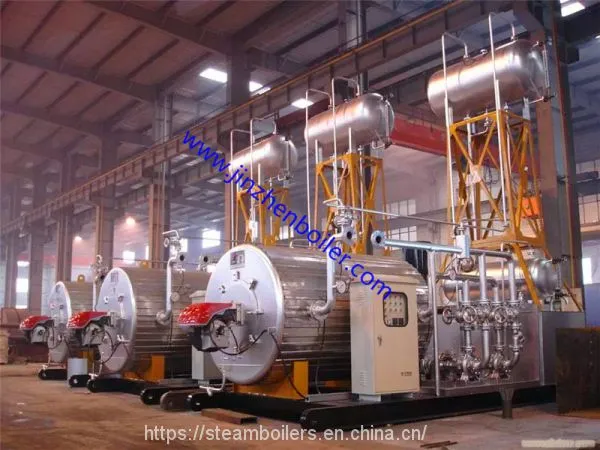

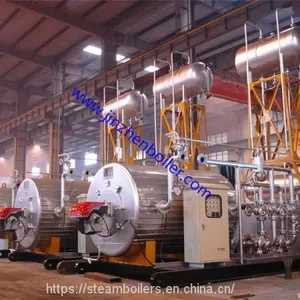

YY(Q)W series horizontal type oil gas fired thermal fluid heater.

What are the heat-resistance temperature of grate and furnace?

The heat resistance temperature of grate is related to the grate material, the highest temperature could be as high as 1100℃, and the lower temperature could be 700℃.

The highest heat resistance temperature of furnace could be about 1700℃~1800℃.

What is conduction oil/ hot oil / heat transfer fluid?

Conduction oil has a high boiling point, it usually used for the industries that need the temperature of 150~350℃, to instead of steam. The hot oil has the advantages of high transfer efficiency, fast heat transfer, and good thermal stability.

What about the maintenance?

I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
