AREMA 136lb 136RE TR68 Steel Rail

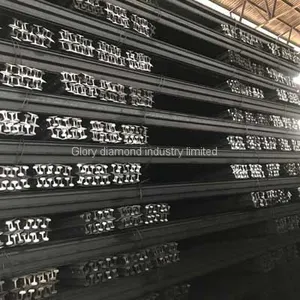

AREMA 136lb 136RE TR68 Steel Rail thumbnail-1
AREMA 136lb 136RE TR68 Steel Rail photo-1
US$ 600 - 640 MOQ: 5 Tons
Key Specifications
Get Latest Price
Brand Name:
GLORY RAIL
Place of Origin:
China
Model Number:
TR68
Contact Supplier Request Quote Chat Now
Glory Diamond Industry Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name GLORY RAIL
Place of Origin China
Model Number TR68
Length 5m~12m
Type Heavy Rail
Weight 67.50kg/m
Application Railway Rail
Standard AISI
Grade 55Q
Secondary Or Not Non-secondary
Bolt Hole Diameter TR68 rail
Head Width 74.60mm
Web Thickness 17.50mm
Bottom Width 152.4mm
Rail Heigth 185.70mm

AREMA 136lb 136RE TR68 Steel Rail

Glory Rail can supply all kinds of steel rails, including light rail, heavy rail, like American AREMA 136lb 136RE TR68 steel rail, crane rail with different standards and specifications.

AREMA 136lb 136RE TR68 steel rail is mainly used as railway rails, crane rail, undergound mining tracks, plant, port, etc. Glory Rail could offer American standard rails, including AREMA 115RE rail, AREMA 119RE rail, AREMA 132RE rail, AREMA 133RE rail, AREMA 136RE rail, AREMA 140RE steel rail, AREMA 141RE rail., etc.

Specification:

Size: AREMA 136lb rail, AREMA 136RE rail. TR68 rail

Length: 12m~25m or other length according to customers’ requirement

Material: High Strength, Intermediate, Standard

Standard: AREMA

Materials:

Standards

AREMA 2016

 Type of Rail C


%

 Si


%

 Mn


%

 P


%

S

%
Chemical Composition

High Strength

Carbon

 0.74-0.86 0.10-0.60 0.75-1.25 0.020 MAX

0.020 MAX

Low Alloy

 0.72-0.82 0.10-1.00 0.70-1.25 0.020 MAX

0.020 MAX

Intermediate

Carbon

 0.74-0.86 0.10-0.60 0.75-1.25 0.020 MAX

0.020 MAX
Low Alloy

0.72-0.82

0.10-1.00

0.70-1.25

0.020 MAX

0.020 MAX

Standard

Carbon

 0.74-0.86 0.10-0.60 0.75-1.25 0.020 MAX

0.020 MAX

Low Alloy

 0.72-0.82 0.10-0.50 0.80-1.10 0.020 MAX

0.020 MAX

Standards

AREMA 2016

 Type of Rail Yield Strength


N/mm2

 Tensile Strength


N/mm2

 Elongation


%

Brinell Hardness

HBW

Mechanical Properties

High Strength

Carbon

828 MIN

 1179 MIN 10 MIN

370 MIN

Low Alloy

Intermediate

Carbon

724 MIN

 1069 MIN 10 MIN

350 MIN

Low Alloy

552 MIN

 1014 MIN 8 MIN

325 MIN

Standard

Carbon

511 MIN

 983 MIN 10 MIN

310 MIN

Low Alloy

AREMA Rail

…………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………

steel rail drawing

GLORY RAIL steel rail drawing

Standard: AREMA Rail

Size Rail height(mm)


A

 Bottom Width(mm)


B

 Head Width(mm)


C

 Web Thickness(mm)


t

 Weight(kg/m)
90lb


90ARA-A (TR45)

 142.9 130.2 65.10 14.30 44.65
100lb  100RE 152.40 136.50 68.30 14.30 50.34
115lb    115RE (TR57) 168.30 139.70 69.10 15.90 56.90
119lb    119RE 173.10 139.70 67.50 15.90 58.86
132lb   132RE 180.90 152.40 76.20 16.60 65.58
133lb   133RE 179.39 152.40 76.20 17.46 66.10
136lb   136RE (TR68) 185.70 152.40 74.60 17.50 67.50
141lb    141RE 188.91 152.40 77.79 17.46 69.94

……………………………………………………………………………………………………………………………………………………………………………………………

In order to better serve the different needs of customers, our technical team is available to provide advice and support, helping every customer to optimize their rail selections to minimize life cycle costs. We supply suitable rail parts, like fish plates, rail clips, bolts and nuts. We supply rail processing, like 45 degree mitre cut, welding process, milling process, special profile processing, etc. Our engineer help customer to design railroad line according to requirements, and build mining railroad line and crane moving line. The technical support provided by Glory Rail can ensure that every rail we deliver provides optimum performance throughout its service life.

If you are interested in this products, pls feel free to contact us, we will give you the quote  in the shortest possible time!


Product Tags: steel rail , 136RE TR68 Steel Rail , TR68 rail , heavy rail , TR68 Steel Rail , 136lb Steel Rail
