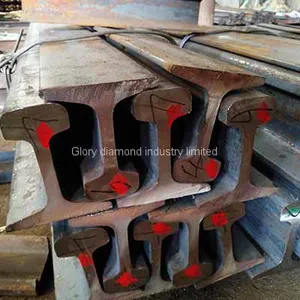

ASCE30 Steel Rail Price in China
- 1000 Ton / Tons per Month
- TIANJIN
- T/T
- TR-40 Any Pole Assembly 600V 40 Amp Terminal Block Din Rail Connector
- LED Lighting module Accessories companies looking for distributor
- TF-10 Din Rail Mounted Feed Through 10mm 53A Terminal Block
- TD-025 Din Rail Mounted Double Level 25 Amp Audio Cable Connector
- TC-202-A Thermocouple 600V 20A 2 Pin Ceramic Connector Block
- TE-010 35mm Din Rail Mounted Krone 10 Amp Terminal Block Connector
Product Details
Brand Name: | GLORY RAIL | Place of Origin: | China | Model Number: | ASCE30 |
Length: | 6m~12m | Type: | Light Rail | Weight: | 15.2kg/m |
Application: | Railway Rail | Standard: | AISI | Grade: | 55Q |
Secondary Or Not: | Non-secondary | Bolt Hole Diameter: | ASCE25 | Head Width: | 42.86mm |
Web Thickness: | 8.33mm | Bottom Width: | 79.37mm | Rail Heigth: | 79.37mm |
Product Description
ASCE30 Steel Rail Price in China
Glory Rail can supply all kinds of steel rails, including light rail, like American standard ASCE30 steel rail, heavy rail, crane rail with different standards and specifications.
ASCE30 steel rail is mainly used for light crane, mining tracks, plant, port, railway, etc. Glory Rail could offer American standard rails, including ASCE25 rail, ASCE30 rail, ASCE40 rail, ASCE50 rail, ASCE60 rail, etc.
Specification:
Size: ASCE30 steel rail
Length: 12m~25m or other length according to customers’ requirement
Material: Q235B, 55Q, U71Mn
Standard: ASTM A1
Q235B | Mechanical property | Chemical composition(%) | |||||||||
Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
MPa ≥ | kg/mm² ≥ | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | |||
235 | 24 | 375-460 | 38-47 | 26% | 0.12-0.22 | 0.35 | 0.30-0.70 | 0.045 | 0.045 |
…………………………………………………………………………………………………………………………………………………………
55Q | Mechanical property | Chemical composition(%) | |||||||||
Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
MPa ≥ | kg/mm² ≥ | MPa ≥ | kg/mm² ≥ | min | HBW ≥ | ≤ | ≤ | ||||
685 | 69 | 197 | 0.50-0.60 | 0.15-0.35 | 0.60-0.90 | 0.040 | 0.040 |
…………………………………………………………………………………………
U71Mn | Mechanical Property | Chemical Composition | ||||||||||||
Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | Cr | Ni | Cu | |||
MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | ≤ | ≤ | ||||
≥880 | 9% | 0.65-0.76 | 0.15-0.35 | 1.10-1.40 | 0.030 | 0.030 | 0.25 | 0.25 | 0.25 |
