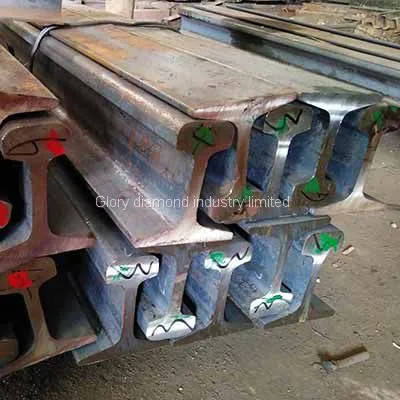

40LBS Steel Rail ASCE40 Steel Rail Price
Glory Rail can supply all kinds of steel rails, including light rail, like American standard ASCE40 steel rail, heavy rail, crane rail with different standards and specifications.
ASCE40 steel rail is mainly used for light crane, mining tracks, plant, port, railway, etc. Glory Rail could offer American standard rails, including ASCE25 rail, ASCE30 rail, ASCE40 rail, ASCE50 rail, ASCE60 rail, etc.
Specification:
Size: ASCE40 steel rail
Length: 12m~25m or other length according to customers’ requirement
Material: Q235B, 55Q, U71Mn
Standard: ASTM A1
Materials:
………
| Q235B | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
|
MPa ≥ |
kg/mm² ≥ |
MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | |||
| 235 | 24 | 375-460 | 38-47 | 26% | 0.12-0.22 | 0.35 | 0.30-0.70 | 0.045 | 0.045 | ||
…………………………………………………………………………………………………………………………………………………………
| 55Q | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
|
MPa ≥ |
kg/mm² ≥ |
MPa ≥ |
kg/mm² ≥ |
min |
HBW ≥ |
≤ | ≤ | ||||
| 685 | 69 | 197 | 0.50-0.60 | 0.15-0.35 | 0.60-0.90 | 0.040 | 0.040 | ||||
…………………………………………………………………………………………
| U71Mn | Mechanical Property | Chemical Composition | ||||||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | Cr | Ni | Cu | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | ≤ | ≤ | ||||
| ≥880 | 9% | 0.65-0.76 | 0.15-0.35 | 1.10-1.40 | 0.030 | 0.030 | 0.25 | 0.25 | 0.25 | |||||
ASCE Rail
…………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………
GLORY RAIL steel rail drawing
Standard: ASTM A1 ASCE Rail
| Size |
Rail height(mm) A |
Bottom Width(mm) B |
Head Width(mm) C |
Web Thickness(mm) t |
Weight(kg/m) |
| ASCE25 | 69.85 | 69.85 | 38.1 | 7.54 | 12.2 |
| ASCE30 | 79.37 | 79.37 | 42.86 | 8.33 | 15.2 |
| ASCE40 | 88.9 | 88.9 | 47.6 | 9.90 | 19.84 |
| ASCE50 | 98.43 | 98.43 | 54.00 | 11.11 | 24.855 |
| ASCE60 | 107.95 | 107.95 | 60.33 | 12.3 | 30.1 |
| ASCE70 | 117.48 | 117.48 | 61.91 | 13.1 | 34.5 |
| ASCE80 | 127.00 | 127.00 | 63.50 | 13.89 | 39.82 |
| ASCE85 | 131.76 | 131.76 | 65.09 | 14.29 | 42.3 |
……………………………………………………………………………………………………………………………………………………………………………………………
In order to better serve the different needs of customers, our technical team is available to provide advice and support, helping every customer to optimize their rail selections to minimize life cycle costs. We supply suitable rail parts, like fish plates, rail clips, bolts and nuts. We supply rail processing, like 45 degree mitre cut, welding process, milling process, special profile processing, etc. Our engineer help customer to design railroad line according to requirements, and build mining railroad line and crane moving line. The technical support provided by Glory Rail can ensure that every rail we deliver provides optimum performance throughout its service life.
If you are interested in this products, pls feel free to contact us, we will give you the quote in the shortest possible time!
