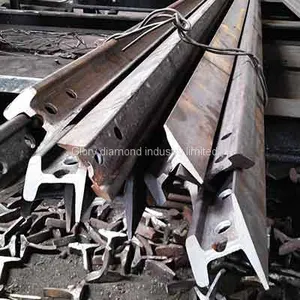

China Supplier ASCE80 Steel Rail
- 1000 Ton / Tons per Month
- TIANJIN
- T/T
- TR-40 Any Pole Assembly 600V 40 Amp Terminal Block Din Rail Connector
- LED Lighting module Accessories companies looking for distributor
- TF-10 Din Rail Mounted Feed Through 10mm 53A Terminal Block
- TD-025 Din Rail Mounted Double Level 25 Amp Audio Cable Connector
- TC-202-A Thermocouple 600V 20A 2 Pin Ceramic Connector Block
- TE-010 35mm Din Rail Mounted Krone 10 Amp Terminal Block Connector
Product Details
Brand Name: | GLORY RAIL | Place of Origin: | China | Model Number: | ASCE80 |
Length: | 5m~12m | Type: | Heavy Rail | Weight: | 39.82kg/m |
Application: | Railway Rail | Standard: | AISI | Grade: | 55Q |
Secondary Or Not: | Non-secondary | Bolt Hole Diameter: | ASCE80 | Head Width: | 63.5mm |
Web Thickness: | 13.89mm | Bottom Width: | 127mm | Rail Heigth: | 127mm |
Product Description
China Supplier ASCE80 Steel Rail
Glory Rail can supply all kinds of steel rails, including light rail, heavy rail, like American standard ASCE80 steel rail, crane rail with different standards and specifications.
ASCE80 steel rail is mainly used as crane rail, undergound mining tracks, plant, port, railway, etc. Glory Rail could offer American standard rails, including ASCE25 rail, ASCE30 rail, ASCE40 rail, ASCE50 rail, ASCE60 rail, ASCE70 steel rail, ASCE80 steel rail., etc.
Specification:
Size: ASCE80 steel rail
Length: 12m~25m or other length according to customers’ requirement
Material: Q235B, 55Q, U71Mn
Standard: ASTM A1
Materials:
………
Q235B | Mechanical property | Chemical composition(%) | |||||||||
Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
MPa ≥ | kg/mm² ≥ | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | |||
235 | 24 | 375-460 | 38-47 | 26% | 0.12-0.22 | 0.35 | 0.30-0.70 | 0.045 | 0.045 |
…………………………………………………………………………………………………………………………………………………………
55Q | Mechanical property | Chemical composition(%) | |||||||||
Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
MPa ≥ | kg/mm² ≥ | MPa ≥ | kg/mm² ≥ | min | HBW ≥ | ≤ | ≤ | ||||
685 | 69 | 197 | 0.50-0.60 | 0.15-0.35 | 0.60-0.90 | 0.040 | 0.040 |
…………………………………………………………………………………………
U71Mn | Mechanical Property | Chemical Composition | ||||||||||||
Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | Cr | Ni | Cu | |||
MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | ≤ | ≤ | ||||
≥880 | 9% | 0.65-0.76 | 0.15-0.35 | 1.10-1.40 | 0.030 | 0.030 | 0.25 | 0.25 | 0.25 |
ASCE Rail
…………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………
Standard: ASTM A1 ASCE Rail
Size | Rail height(mm) A | Bottom Width(mm) B | Head Width(mm) C | Web Thickness(mm) t | Weight(kg/m) |
ASCE25 | 69.85 | 69.85 | 38.1 | 7.54 | 12.2 |
ASCE30 | 79.37 | 79.37 | 42.86 | 8.33 | 15.2 |
ASCE40 | 88.9 | 88.9 | 47.6 | 9.90 | 19.84 |
ASCE50 | 98.43 | 98.43 | 54.00 | 11.11 | 24.855 |
ASCE60 | 107.95 | 107.95 | 60.33 | 12.3 | 30.1 |
ASCE70 | 117.48 | 117.48 | 61.91 | 13.1 | 34.5 |
ASCE80 | 127.00 | 127.00 | 63.50 | 13.89 | 39.82 |
ASCE85 | 131.76 | 131.76 | 65.09 | 14.29 | 42.3 |
……………………………………………………………………………………………………………………………………………………………………………………………
In order to better serve the different needs of customers, our technical team is available to provide advice and support, helping every customer to optimize their rail selections to minimize life cycle costs. We supply suitable rail parts, like fish plates, rail clips, bolts and nuts. We supply rail processing, like 45 degree mitre cut, welding process, milling process, special profile processing, etc. Our engineer help customer to design railroad line according to requirements, and build mining railroad line and crane moving line. The technical support provided by Glory Rail can ensure that every rail we deliver provides optimum performance throughout its service life.
If you are interested in this products, pls feel free to contact us, we will give you the quote in the shortest possible time!
