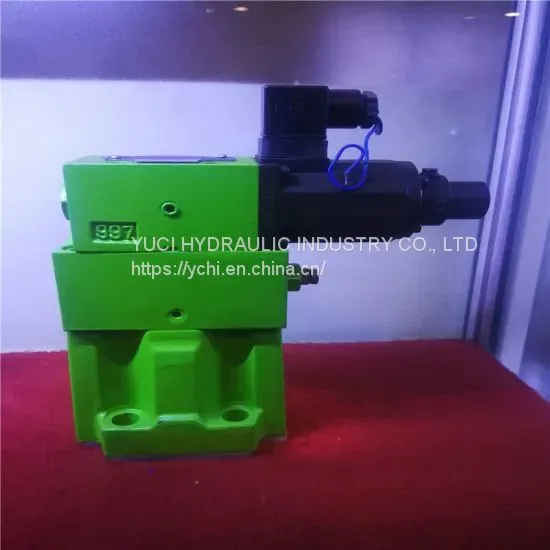

Help CenterTy-4wrae6 Proportional Hydraulic Directional Valve-Position Monitoring Electromagnetic Reversing Valve
Related Products
-
Hydraulic Superimposed Check Valve Made in China With Best RateUS$ 15 - 55MOQ: 1 Piece -
Hydraulic Superimposed Hydraulic Control Check Valve-Superimposed Hydraulic Control Check ValveUS$ 15 - 55MOQ: 1 Piece
-
Hydraulic Superimposed Pilot Relief Valve-Balance Valve (pressure Relief Valve)US$ 15 - 55MOQ: 1 Piece
-
Hydraulic Superimposed Linear Pressure Reducing ValveUS$ 15 - 55MOQ: 1 Piece
-
Hydraulic Superimposed Linear Pressure Reducing ValveUS$ 15 - 55MOQ: 1 Piece
Proportional valve is a direct hydraulic control valve between ordinary hydraulic valve and electro-hydraulic servo valve. It can make its output proportional to the control input and realize the remote control of hydraulic parameters. It can also be used as a signal conversion and amplification element in the closed-loop control system.
MODEL INSTRUCTION
| Name | Model examples | Specifications | function | flow |
| Direct operated proportional directional valve | TY-4WRAE6E1 15/2XF1V | 6/10 | E/E1/EAW/W1/WA |
6:07/15/30 10:30/60 |
| Pilot proportional directional valve | TY-4WRZE16E1 100/7XF1V | 15/25 | E/E1/E3/EAW/W1/W3/WA |
16:100/15 25:220/325 |
| High frequency proportional directional valve | TY-4WRPEH10C50L/2XF1M | 6/10 | C/C1/C3C4/C5 |
6:02/04/12/15/24/25/40 10:50/100 |
TECHNICAL FEATURE
01.Simple structure, small size, easy to assemble and disassemble
02.Simple structure, small size, easy to assemble and disassemble
03.Continuous signal adjustment
04.High control precision, small hysteresis, fast dynamic response and strong anti-wear ability
05.Without spool position detection, cost-effective
SPECIFICATION
| Model | Maximum working pressure(MPa) | Use flow range (L/min) |
| TY-4WRAE6 | 31.5 | 42 |
| TY-4WRAE10 | 31.5 | 75 |
| TY-4WRZE16 | 35 | 460 |
| TY-4WRZE25 | 35 | 870 |
| TY-4WRPEH6 | 31.5 | 40 |
| TY-4WRPEH10 | 31.5 | 100 |
APPLICATION AREA
Direct-acting proportional directional valve is mainly used for open-loop control of hydraulic systems of steelworks, metallurgical industry hydraulic systems, engineering machinery, sanitation machinery, coal mines and amusement equipment.
