contact Double infrared Ex flame detector relay output 2IR flame Sensor explosion-proof
Product Overview

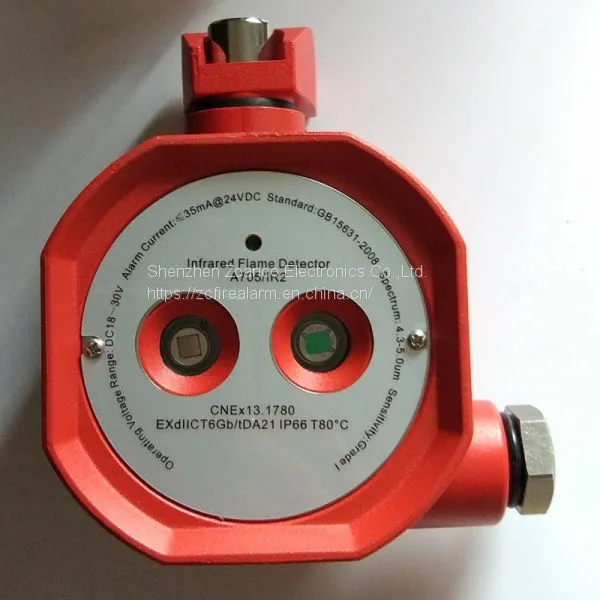

1.Product model:A705/IR2
2.Purpose and scope of application:
3.Flame detector suitable for explosion-proof place
Standard:
GB 15631-2008 "special fire detector" provisions.
GB 3836.2-2010 "explosive environment second
part: by flameproof shell" d "protection equipment"
provisions
Specification
O p erating Voltage Range: 18 ~ 30Vdc
Standby Current: ≤25mA
Alarm Current: ≤35mA
Detection Angle: ≥90°
Detection Distance: ≥25m
Relay Contact Load: 3A@30Vdc
Operating Temperature Range:
-10°C-55°C
Operating Humidity Range: 0 ~ 95%RH
Explosion Proof: EXdⅡCT6 Gb
Ingress Protection: IP66
Product Size: ∅91X100mm
Installation Dimension: 35mmX47mm
Please feel free to contact me for more details
