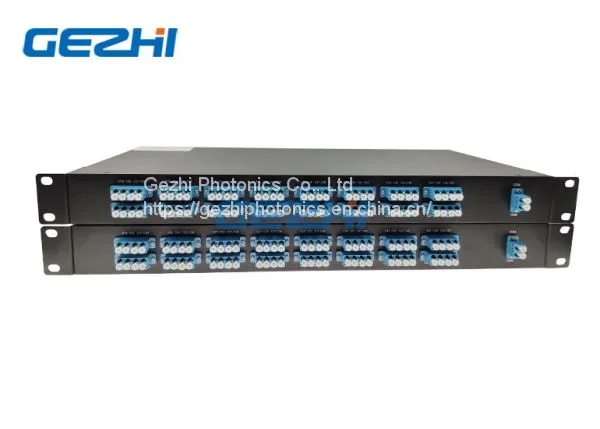

GEZHI offers a full range of Thermal/Athermal AWG products, including 50GHz, 100GHz and 200GHz Thermal/Athermal AWG. Here we present the generic specification for the 41-channel 100GHz Gaussian Athermal AWG (41 channel AAWG) MUX/DEMUX component supplied for use in DWDMsystem.
Athermal AWG (AAWG) have equivalent performance to standard Thermal AWG(TAWG) but require no electrical power for stabilization. They can be used as direct replacements for Thin Film Filters(Filter type DWDM module) for cases where no power is available.
Feature | Applications |
|
|
Specifications
| Items | SPEC |
| Channel spacing | ITU 100GHz |
| Channel numbers | 32CH or 40CH |
| Channel Passband (nm) | ±0.1 |
| 1dB Bandwidth (nm) | >0.24 |
| Insertion Loss (including connector loss) | <3.5dB |
| Uniformity (dB) | <1.0 |
| Ripple (dB) | <0.5 |
| Adjacent Channel Isolation (dB) | >30 |
| Non-Adjacent Channel Isolation (dB) | >40 |
| Total Channel Isolatiom (dB) | >33 |
| PDL (dB) | <0.5 |
| Return Loss (dB) | >40 |
| PMD (ps) | <0.5 |
| Operating Temperature (℃) | -5~65 |
| Storage Temperature (℃) | -40~85 |
| Fiber Type | SMF-28e |
| Packaging Dimension(mm) | 19inch 1U Chassis, 431.5*250*44mm |
Ordering Information
| AWG | X | XX | X | XX | X | XX |
| Channel Spacing | Number of Channels | Configuration | 1st Channel | Package Type | In/Out Connector | |
| 1=100GHz | 32=32Channel 40=40 Channel 44=44 Channel 48=48 Channel
| S=Single Fiber D=Dual Fiber | 21=Ch21 …… 34=Ch34 …… 50=Ch50 …… | RU=19” 1U Rackmount | 0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC S=Specify |
