2x4 Multimode 850nm Fiberoptic Switches
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
GEZHI or OEM
Place of Origin:
China
Model Number:
GZ-FSW-D1x2
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2x2 Cross Fiber Optic SwitchesNegotiableMOQ: 1 Piece -
2x4 Fibre Optical Switches Duplex 1x2 Opto-Mechanical In Relay Hub ModuleNegotiableMOQ: 1 Piece
-
Single Pole Double Throw Fiber Optic A/B SwitchNegotiableMOQ: 1 Piece
-
Single Mode 1x8 MEMS Optical Switches Mini 850nm For DWDM NetworksNegotiableMOQ: 1 Piece
-
Mini 1x4 OptoMechanical Fiber Optical SwitchNegotiableMOQ: 1 Piece
Brand Name
GEZHI or OEM
Place of Origin
China
Model Number
GZ-FSW-D1x2

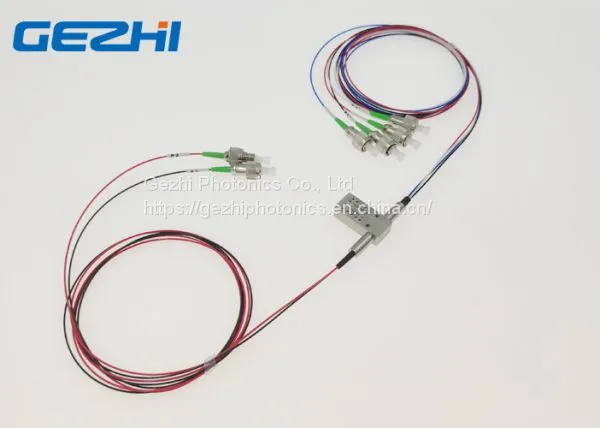

2x4 Multimode 850nm Fiberoptic Switches
GEZHI 2x4 Multimode 850nm Fiberoptic Switches connects optical channels by redirecting an incoming optical signal into a selected output fiber. The 2x4 Multimode 850nm Fiberoptic Switches offers ultra-high reliability and fast switching speed as well as bi-directional performance. The 2x4 Multimode 850nm Fiberoptic Switches are true switching solution for optical networking applications.
Features |
Applications |
|
|
Specification
| Parameters | GZ-FSW-D1×2 | ||
| Wavelength Range | nm | 850±40/1300±40 | 1260～1650 |
| Operating avelength | nm | 850/1300 | 1310/1490/1550/1625/1650 |
| Insertion Loss | dB | Typ:1.0 Max:1.5 | Typ:1.0 Max:1.5 |
| Return Loss | dB | MM≥30 SM≥50 | |
| Crosstalk | dB | MM≥35 SM≥55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Power Supply | v | 3.0 or 5.0 | |
| Lifetime | times | ≥107 | |
| Switch Time | ms | ≤8 | |
| Transmission Power | mW | ≤500 | |
| Operating Temperature | ℃ | -20～+70 | |
| Storage Temperature | ℃ | -40～+85 | |
| Weight | g | 16 | |
| Dimension | mm | (L)27.0×(W)12.0×(H)8.2 | |
Order Information
GZ-FSW-D1x2-X-XX-X-X-X-XX-X-XX
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
0=None FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC STP=ST/PC STA=ST/APC LP=LC/PC LA=LC/APC |
Optical Route
| Status A | Status B |
|
|
|
Pins
| Type | State | Optical Route | Electric Drive | Status Sensor | ||||||
| D1×2 | Pin 1 | Pin 5 | Pin 6 | Pin 10 | Pin 2-3 | Pin 3-4 | Pin 7-8 | Pin 8-9 | ||
| Latching | A | P1-P2 | -- | -- | GND | V+ | Close | Open | Open | Close |
| P1’-P2’ | ||||||||||
| B | P1-P3 | V+ | GND | -- | -- | Open | Close | Close | Open | |
| P1’-P3’ | ||||||||||
| Non-latching | A | P1-P2 | -- | -- | -- | -- | Close | Open | Open | Close |
| P1’-P2’ | ||||||||||
| B | P1-P3 | V+ | -- | -- | GND | Open | Close | Close | Open | |
| P1’-P3’ | ||||||||||
Dimension
