Dual 88-CH 50GHz Flat-Top AWG DWDM Mux Demux with 1% Tap Monitor

Dual 88-CH 50GHz Flat-Top AWG DWDM Module Mux/Demux with 1% Tap Monitor

GEZHI AWG DWDM is by silica-on-silicon planar technology. The AWG chips GEZHI Photonics used for DWDM Mux/Demux are targeted for Long-Haul, Metro and access applications, where outstanding optical performance and low cost are paramount.

GEZHI offers a full range of DWDM Mux/Demux(Dense Wavelength devision multiplexer) and Optical Add Drop Multiplexer (OADM) units to suit all kinds applications and network solutions, such as: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV.

The channel spacing for DWDM is 1.6/0.8/0.4 nm (200GHz/100 GHz/50 GHz grid). This small channel spacing allows to transmit simultaneously much more information

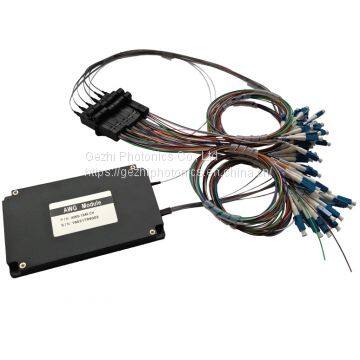

Thermal Arrayed Waveguide Grating (TAWG) DWDM Modules are designed for use within the C-band release of DWDM system. To decrease the power dissipation of the devices in different environmental conditions, the AWG package is special designed with selection of reliable thermal plastic with low thermal conduction, and the AWG operating temperature is controlled by using foil resist heater or Peltier TEC with thermistor temperature sensor.

Mechanical Details for Housing ( Using Aluminum Box)

Note: Please, note that the drawings shown here only show the dimensions and do not the specific configuration of the module.

Front Panel Details



A Common port:

• LC, SC, ST and FC connectors available.

B Monitor port:

• Connects measurement/monitoring equipment, such as power meters or network analyzers, to the module outputs. When finished monitoring, disconnect the instruments and the network is left undisturbed

• LC, SC, ST and FC connectors available.

• Tap percentage is 5% as default, 1%, 2%, 3%, or 10% available on request.

C Express port:

• Enables the cascading of two DWDM mux/demux modules, doubling the channel capacity on the common fiber link.

• Isolation is less than 15dB as default, 16dB ~40dB available on request.

• LC, SC, ST and FC connectors available.

D Standard port 1310nm:

• Allows a legacy 1310nm signal to pass. That is to say, it can carry LR optics, LX optics etc.

• LC, SC, ST and FC connectors available.

E Mux/Demux port for specific ITU-Grid channels:

• LC, SC, ST and FC connectors available.
