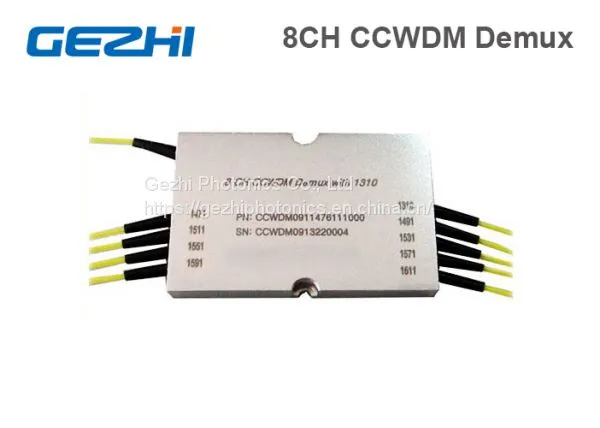

8CH CCWDM Module Compact Coarse Wavelength Division Multiplexer
Mini CCWDMs (Compact Coasrse Wavelength Division Multiplexers) are offered in a compact, space-saving design ideal for tray-mount applications. Mini CCWDMs are available with an upgrade port. It's new technology from GEZHI Photonics. Compare normal CWDM module, the size is more compactable.
and low inserion loss&High Isolation.
Coarse Wavelength Division Multiplexing (CWDM) networks need multiplexer/demultiplexer (MUX/DEMUX) modules to combine and split the multi-wavelength optical signals. These modules are generally called CWDM MUX/DEMUX. Coupled with highly reliable passive optics (e.g., CWDM SFP/SFP+ transceiver), CWDM MUX/DEMUX modlues let operators make full use of available fiber bandwidth in local loop and enterprise architectures. GEZHI Photonics provides a series of CWDM MUX/DEMUX modules with as more as 18 channels (20nm spaced) in simplex or duplex configurations
Applications
• Access / Metro CWDM networks
• WDM PON
• Enterprise networks
Features
Compact Size
Low insertion Loss
High Demux channel Isolation
Wide pass band
Excellent enviromental stability & reliability
Premium grade components & connectivity
Telcordia GR-1221 qualified
RoHS compliant
Parameters:
| Description | Unit | Min | Typical | Max. | |||
| Optional channel loss | dB | 1.0 | 1.5 | ||||
| Pass band width | nm | 13 | 15 | ||||
| Flatness | dB | 0.3 | 0.5 | ||||
| Adjacent channel isolation | dB | 30 | 35 | ||||
| Non adjacent channel isolation | dB | 35 | 40 | ||||
| Directivity | dB | 50 | |||||
| PDL | dB | 0.2 | |||||
| PMD | ps | 0.2 | |||||
| Max. power | mw | 300 | |||||
| Pass channel insertion loss | P | dB | 1.0 | 1.5 | |||
| A | 1.5 | 2.5 | |||||
| Channel wavelength | nm |
1471 1491 1511 1531 1551 1571 1591 1611 Can be selected on request or any 4channel between 1260-1625 |
|||||
| Operating temperature | °C | -10 ~+70 | |||||
| Storage temperature | °C | -40 ~+85 | |||||
| Package | mm | 44(L)X28(W)X6(H) | |||||
8ch CCWDM Module Spectrum
Paging Dimensions :
CWDM Application on Network System
Order Information:
| CCWDM8- | XXXX- | X- | X- | XX- | X- | X |
| Wavelength | Grade | Pigtail Type | Length | connector | package | |
|
1471 1491 1611 |
P A |
0=bare fiber 1=900um loose tube 2=2mm cable 3=3mm cable |
05=0.5m 10=1.0m 15=1.5m |
0=none 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=LC 6=Others |
0=Standard 1=Special |
|
