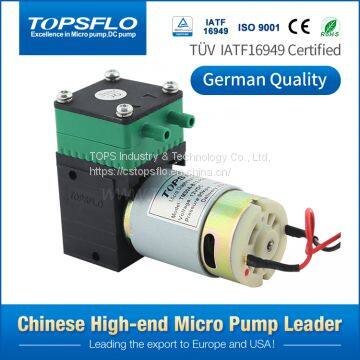

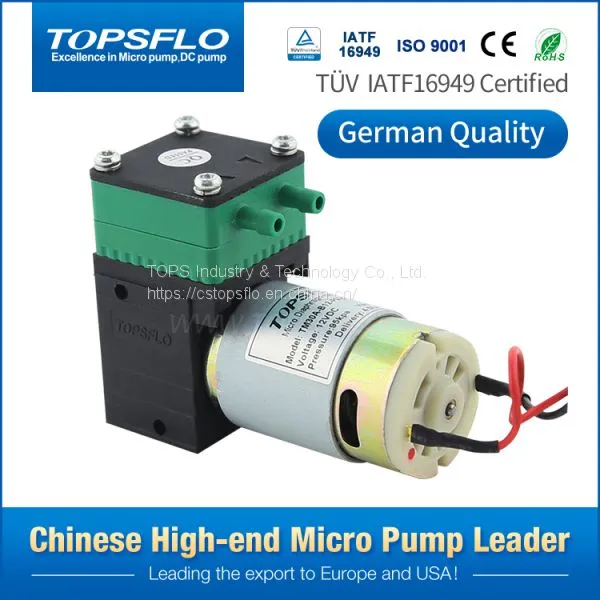

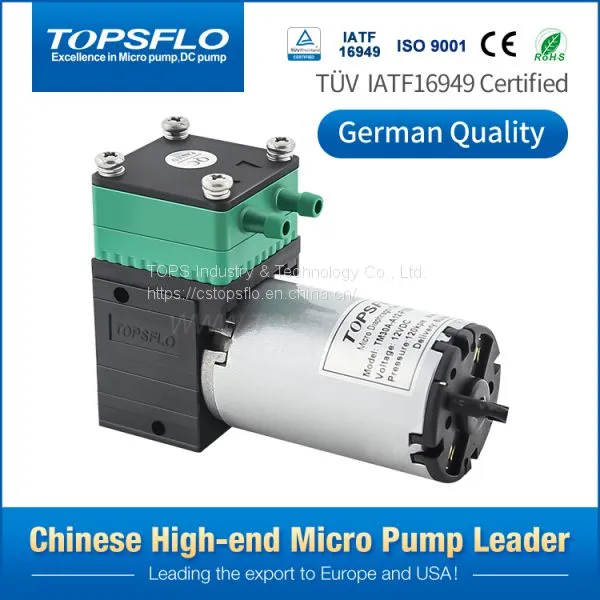

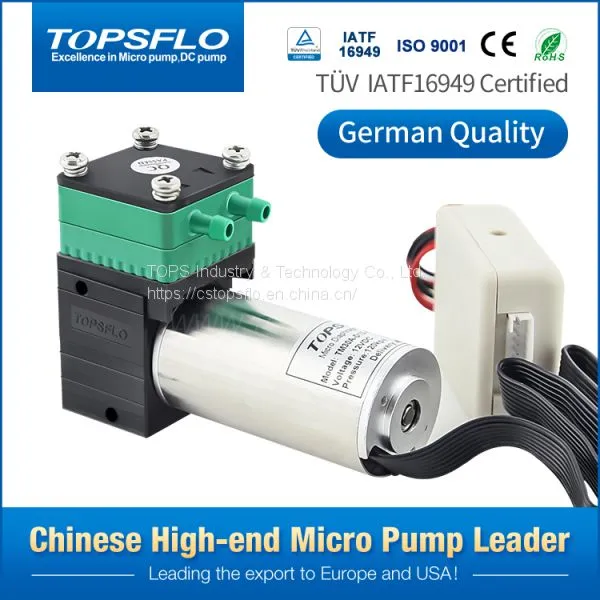

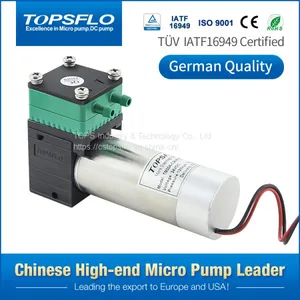

Help CenterMicro 6V 12V 24V DC Brush Quiet Battery Driven Air Diaphragm Pump for Water Purifier
Related Products
-
TOPSFLO 15000H Life Brushless Motor DC Mini High Pressure Air Compressor Pump FactoryNegotiableMOQ: 2 Pieces -
6v 12v 24v dc Mini Micro Air Pump Diaphragm PumpNegotiableMOQ: 2 Pieces
-
6V 12V 24V DC Brush Motor Mini Silent Air PumpNegotiableMOQ: 2 Pieces
-
TOPSFLO High Performance Silent FoodSaver Vacuum PumpNegotiableMOQ: 2 Pieces
-
6v 12v 24v dc Mini Micro Air PumpUS$ 33 - 40MOQ: 1 Piece
- We are high-end micro DC pumps manufacturer. Can provide customized services
- If you are interested in our products, pls feel free to contact us
Product Specification
| Model | TM30A-A | TM30A-B | TM30A-C | TM30A-D |
| Motor type | A--high performance Brush motor | B--Brush motor | C--Brushless motor | D--Brushless motor |
| Pump Assembly Rated Life | 3000hour | 1000hour | 15000hour | 15000hour |
| Gas flow | 6L/min | 4.5L/min | 4.5L/min | 4L/min |
| Rated Voltage | 12V | 6/12/24v | 6/12/24v | 6/12/24v |
| No-load Current | 0.24A | 0.4/0.24/0.15A | ||
| Media | Most gas | |||
| Max Pressure | 120kpa | |||
| Max Vacuum | -70kpa | |||
| Ambient Temperature | 41 to 158 F(5 to 70C) | |||
| Pump size | 75.5*30.4*54.6mm | 75*31.2*57.5mm | 79*31.2*57.5mm | 79*31.2*57.5mm |
| Weight | 200g | 150g | 250g | 250g |
| Inlet&Outlet | OD 4.8mm/ID 2.6mm,hose suggestion:ID 4.0mm | |||
| Materials | pump head Nylon, membrane EPDM , valve EPDM | pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM | pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM | pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM |
Wetted material options | 1.Optional membrane materials: EPDM for normal air PTFE for corrosive air,like acid, alkali air, ozone etc. 2.Optional valve materials: EPDM for normal air FPM for corrosive air, like acid, alkali, ozone,etc. | |||
TOPSFLO Diaphragm series gas pumps are the perfect combination of form and function. The use of a special diaphragm allows the pump to transfer both air and liquid efficiently. The compact lightweight unit offers optimum sizing for analytical equipment.
ADVANTAGES
♦ High pneumatic performance
♦ Compact size/high power density
♦ Uncontaminated flow – no contamination of the media due to oil-free operation
♦ Maintenance-free
♦ Long product life
♦ Low sound level
♦ Low power consumption
♦ Can operate in any orientation
APPLICATION
4. Air Quality Sampling Monitors 5. Respiration Monitors 6. Gas or Odor Leak Detectors etc..
