Help CenterSlewing Ring/Turntable Ring/Slewing Bearing RKS.061.20.0744 With External Gear 672x838.8x56mm
Related Products
-
KLKDR1000-16 Double Row Ball Slewing BearingUS$ 120 - 200MOQ: 1 Piece -
023.60.4000 Slewing Ring/Slewing Bearing/Turnable Ring With Internal Gear 4278*3772*226mmUS$ 20 - 50MOQ: 1 Piece
-
023.60.4500 Slewing Ring/Slewing Bearing/Turnable Ring With Internal Gear 4778*4222*226mmUS$ 20 - 50MOQ: 1 Piece
-
ZKLDF200 Slewing Bearing Rotary Table Bearing 300*200*45mmUS$ 20 - 50MOQ: 1 Piece
-
ZKLDF100 Slewing Bearing Rotary Table Bearing 100*185*35mmUS$ 20 - 50MOQ: 1 Piece

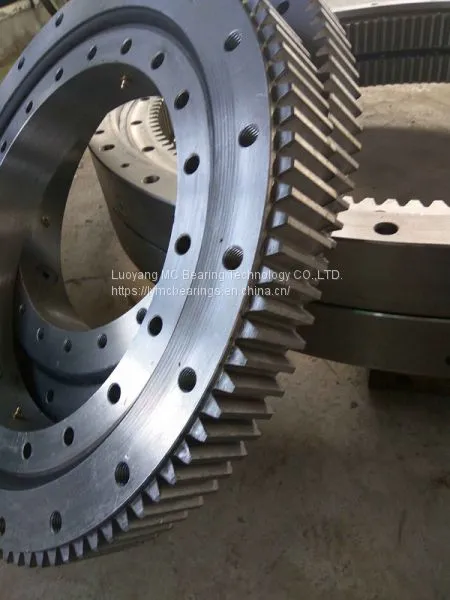

RKS.061.20.0744 Slewing bearing with external gear 672x838.8x56mm information:
Dimensions - d (inside diameter) 672 mm
Dimensions - D (outside diameter) 838.8 mm
Dimensions - B (width) 56 mm
Module:6
The number of teeth:138
Weight:59KG
RKS.061.20.0744 Single row four-point contact ball slewing bearings are simple in design. They are particularly versatile and offer many advantages for applications where there are light-tomedium axial, radial and moment loads.
RKS.061.20.0744 The outer ring and inner ring material: 42CrMo, 42CrMo4V,50Mn in accordance with EN10083
Ball material: 100Cr6 bearing steel,in accordance with EN ISO683
Geart teeth accuracy grade: in accordance with ISO1328
Oil or grease material:Lithium grease
The inner ring and outer ring Material hardness: quenching and tempering: HB229~269
Raceway case hardening :HRC55~62
RKS.061.20.0744 The package,: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case. we can assure that the bearing shipping by sea or by air.
The delivery time:25-35 days
Generally, RKS.061.20.0744 slewing bearings are large-size rolling bearings that can accommodate axial, radial and moment loads acting either singly or in combination and in any direction. They can perform both slewing (oscillating) movements as well as rotational movements.
Basically, RKS.061.20.0744 slewing bearing consists of an inner ring , an outer ring and rolling elements−balls or cylindrical rollers−that are separated by polyamide spacers .The rings, one of which usually incorporates a gear , are provided with holes to accommodate attachment bolts. The holes may be threaded.
Generally, only the raceways in the rings are hardened and precision- ground. Integral seals made of acrylonitrile- butadiene rubber (NBR) keep the lubricant in, and contaminants out of the bearing.
