Help CenterZKLDF120 Slewing Bearing Rotary Table Bearing 120*210*40mm
Related Products
-
ZKLDF100 Slewing Bearing Rotary Table Bearing 100*185*38mmUS$ 20 - 50MOQ: 1 Piece -
ZKLDF150 Slewing Bearing Rotary Table Bearing 150*240*40mmUS$ 20 - 50MOQ: 1 Piece
-
ZKLDF120 Slewing Bearing Rotary Table Bearing 120*210*40mmUS$ 20 - 50MOQ: 1 Piece
-
ZKLDF325 Slewing Bearing Rotary Table Bearing 325*450*60mmUS$ 20 - 50MOQ: 1 Piece
-
ZKLDF200 Slewing Bearing Rotary Table Bearing 200*300*45mmUS$ 20 - 50MOQ: 1 Piece
ZKLDF120 Slewing Bearing Rotary Table Bearing 120*210*40mm information:
The outer ring diameter:210mm
The inner ring diameter:120mm
The thickness diameter:40mm
dynamic load Ca（KN）:76
Static load ratingCo(Kn):315
Weight:6kg
Cage Material:Nylon/ Steel /Copper
Precision rating:P0 P2 P4
Material:50Mn/42CrMo/42CrMo4V /Customized
Package:Wooden box
Delivery Time: 3 days in stock
Slewing Bearing Type:
Single row four point contact ball slewing bearing
Single row crossed cylindrical roller slewing bearings
Double row Roller/ball combination slewing bearing
Three-Row Roller Slew Ring Bearing

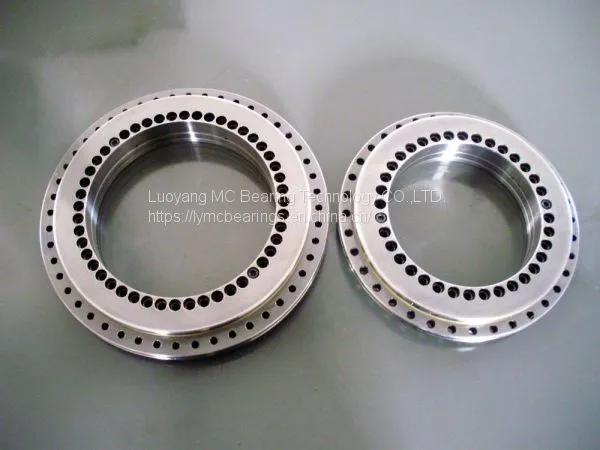

ZKLDF120 Slewing Bearing Rotary Table Bearing 120*210*40mm
Axial/radial bearing YRTM : bearing of YRTM series correspond in the double direction thrust cylindrical roller combined bearing YRT ,but are additionally fitted with a steel ruler,to control and adjust the double direction thrust cylindrical roller bearing rotation accuracy,and guarantee the machine high precision operation. Axial/radial bearings with magnetic dimensional scale play a very important role in modern industry ,especially in the machine tool industry,the rotation angle of the workpiece tend to have high requirements,which require a diagonal move with precise measurement and control.
If you interesting the type ZKLDF120 Slewing Bearing Rotary Table Bearing 120*210*40mm,welcome inquiry me freely.
