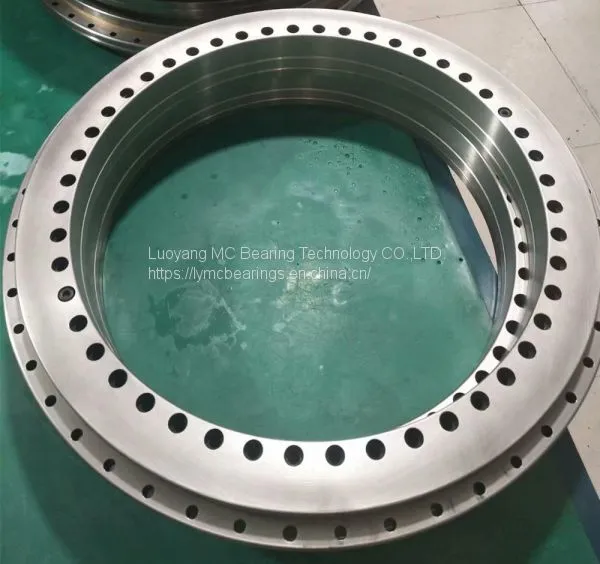

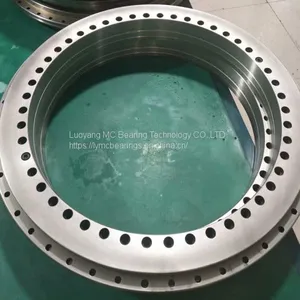

ZKLDF395 Slewing Bearing Rotary Table Bearing 395*525*65mm information:
The outer ring diameter:525mm
The inner ring diameter:395mm
The thickness diameter:65mm
dynamic load Ca（KN）:241
Static load ratingCo(Kn):1580
Weight:39kg
Cage Material:Nylon/ Steel /Copper
Precision rating:P0 P2 P4
Material:50Mn/42CrMo/42CrMo4V /Customized
Package:Wooden box
Delivery Time: 3 days in stock
Slewing Bearing Type:
Single row four point contact ball slewing bearing
Single row crossed cylindrical roller slewing bearings
Double row Roller/ball combination slewing bearing
Three-Row Roller Slew Ring Bearing
ZKLDF395 Slewing Bearing Rotary Table Bearing 395*525*65mm
Axial/radial bearing YRTM : bearing of YRTM series correspond in the double direction thrust cylindrical roller combined bearing YRT ,but are additionally fitted with a steel ruler,to control and adjust the double direction thrust cylindrical roller bearing rotation accuracy,and guarantee the machine high precision operation. Axial/radial bearings with magnetic dimensional scale play a very important role in modern industry ,especially in the machine tool industry,the rotation angle of the workpiece tend to have high requirements,which require a diagonal move with precise measurement and control.
If you interesting the type ZKLDF395 Slewing Bearing Rotary Table Bearing 395*525*65mm,welcome inquiry me freely.
