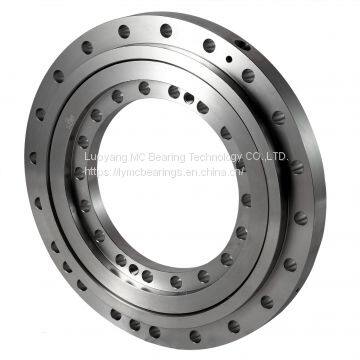

ZKLDF180 Slewing Bearing Rotary Table Bearing 180*280*43mm

ZKLDF180 Slewing Bearing Rotary Table Bearing 180*280*43mm information:

The outer ring diameter:280mm

The inner ring diameter:180mm

The thickness diameter:43mm

dynamic load Ca（KN）:85

Static load ratingCo(Kn):440

Weight:8kg

Cage Material:Nylon/ Steel /Copper

Precision rating:P0 P2 P4

Material:50Mn/42CrMo/42CrMo4V /Customized

Package:Wooden box

Delivery Time: 3 days in stock

Slewing Bearing Type:

 Single row four point contact ball slewing bearing
 Single row crossed cylindrical roller slewing bearings

ZKLDF180 Slewing Bearing Rotary Table Bearing 180*280*43mm

Axial/radial bearing YRTM : bearing of YRTM series correspond in the double direction thrust cylindrical roller combined bearing YRT ,but are additionally fitted with a steel ruler,to control and adjust the double direction thrust cylindrical roller bearing rotation accuracy,and guarantee the machine high precision operation. Axial/radial bearings with magnetic dimensional scale play a very important role in modern industry ,especially in the machine tool industry,the rotation angle of the workpiece tend to have high requirements,which require a diagonal move with precise measurement and control.

If you interesting the type ZKLDF180 Slewing Bearing Rotary Table Bearing 180*280*43mm,welcome inquiry me freely.
