Testing Machine for Mechanical Properties of Tempered Glass

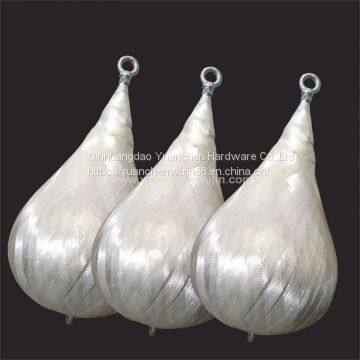

Shot Bag
1) Weight:45kg±0.1kg 46kg±0.1kg
2) Height: 330mm ± 13mm
3) Max diameter: 250mm
4) Lead sand size: 2.5mm

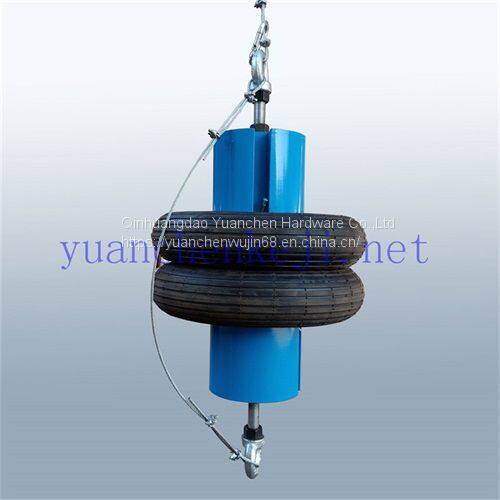

Pneumatic Tyres Impactor
Pneumatic Tyres Device for Pendulum Test of Glass In Building According to BS EN 12600
Reference standard:
BS EN 12600:2002
Glass in building - Pendulum test - Impact test method and classification for flat glass
MS 1498:2017
Safety glass in building - Specification
Technical Parameters:
Weight 50 kg ± 0.1 kg
Tire pressure: 0.35Mpa ± 0.02Mpa
Type: 3.50-R8 4PR
Impact Frame
Test Frame:
Frame Size: 1900mm*1500mm*3570mm
Samples Size: 1930mm*864mm
Lift: Electric
Release: Auto
Maximum impact height: 1200mm (customized)
Rubber Pad Width: 15mm
Rubber Pad Thickness: 3mm
Rubber Pad Hardness: Shore A50
Drop Ball Impact Test Machine
Determination of whether the safety glazing material has a certain minimum strength and cohesion under impact from a small hard object
Hardness steel ball:
a) 2260g ± 20g, diameter of approximately 82.5mm
b) 227g ± 2g, diameter of approximately 38 mm
c) 1040g ± 10g, diameter of approximately 63.5 mm
d) 508g±3g, diameter of approximately 50 mm
Frame Height: 1000mm, 5000mm, 12000mm, Customized
Automatic release and lift. Power: 220V 50Hz 580W
Supporting fixture:
a) Support Size: 350mm*350mm and 660mm*660mm (Customized)
b) Frame width 15mm
c) Steel box height 150mm
d) Rubber Gasket: thickness 3mm, width 15mm, hardness shore A50
e) Interposed sheet of rubber: thickness 3mm, hardness shore A50
Applied Test Pieces Size: 300mm*300mm 610mm* 610mm
Head-form Test Device
Head Weight: 10kg
Head Size: 500mm*932mm
Impact height: Samples size: 1100mm*500mm
Felt hat: 90g/89mm/3mm
Frame size: 1400mm*666mm*320mm

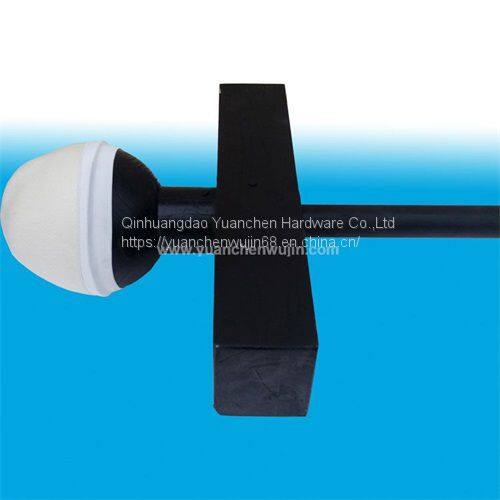

Pummel Test Device:
Hammer head diameter: 30mm
Impact Distance: Adjustable

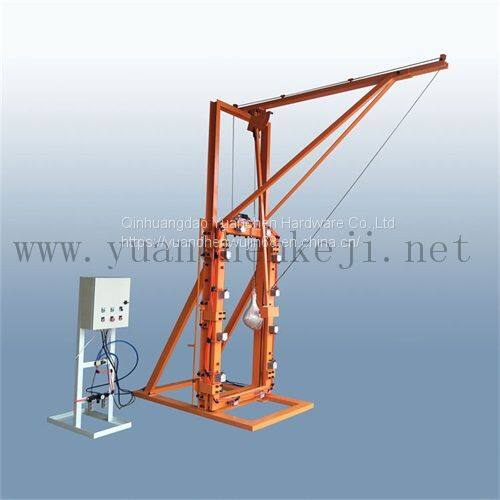

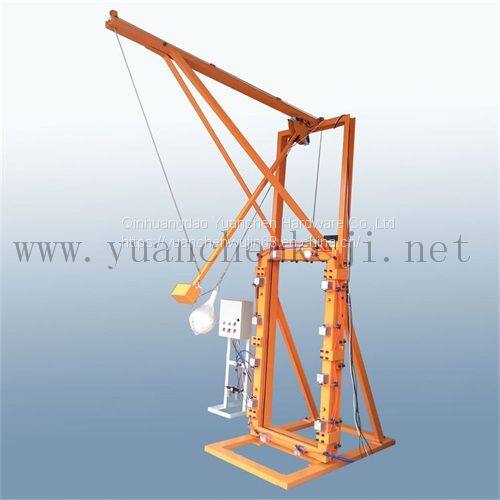

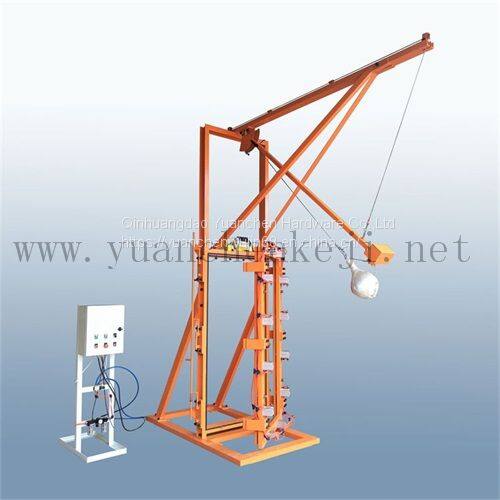

Shot Bag Impact Testing Frame:
Shot Bag 45kg/46kg
Automatic Release
Electric Lifting
Pneumatic Clamping

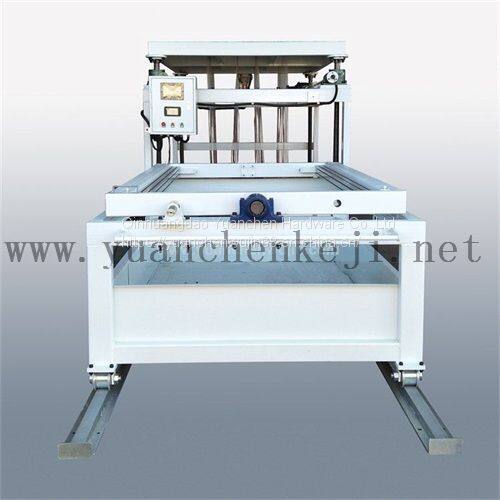

PV Load Test Equipment
Size: 6425mm*2000mm*3490mm
Samples: 1643mm*991mm~2009mm*1027mm (Customized)
Source: Sandbag
Load: 2400Pa 5400Pa 8100Pa 10000Pa (Customized)

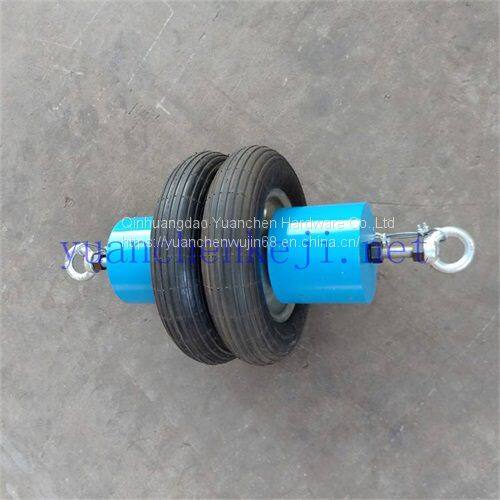

Pneumatic Tyres Device
Weight 50 kg ± 0.1 kg
Tire pressure: 0.35Mpa ± 0.02Mpa
Type: 3.50-R8 4PR
Forced Entry Resistant Glass Test Device
Axe: 810mm Long
Axe Quality: 1.80kg
Sample size: 610mm*610mm

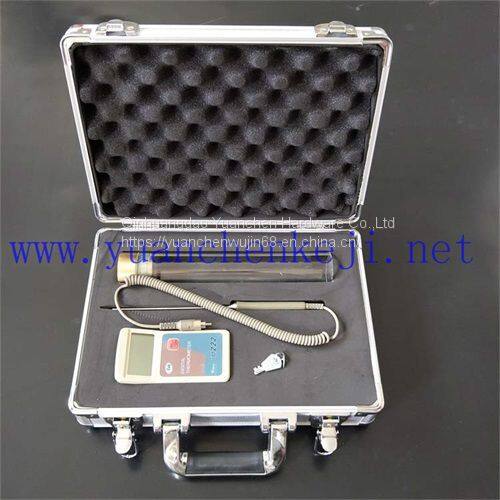

Insulating Glass Dew Point Meter
Operating temperature: -80°C ~ 100°C
Tube height: 300mm
Tube diameter: 50mm
Temperature resolution: 0.1 °C

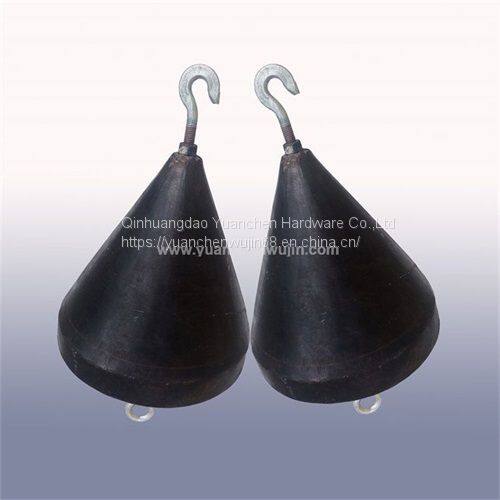

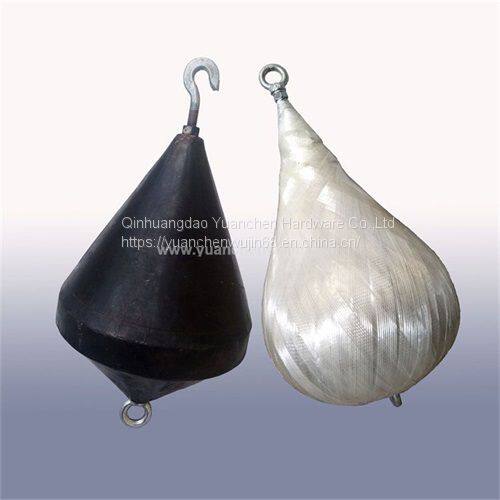

Hard/Soft Pendulum Shock Test for Lifts
Hard pendulum shock device
Height: 330± 15mm
Max diameter: 240±10mm
Weight: 10kg ± 0.1kg
Material: according to ISO standard
Filler: 3.5mm 0.25mm
Soft pendulum shock device
Height: 330mm ± 15mm
Maximum diameter: 240mm±15mm
Weight: 45kg ± 0.5kg
Material: leather bag
Filler: diameter 3.5mm ± 1mm lead sand

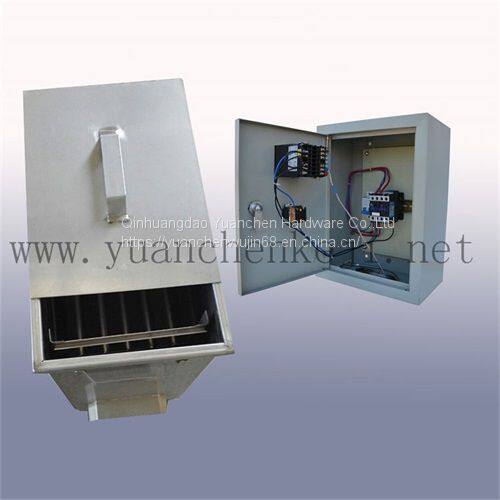

Boiling Test Device
Power: 220V 50Hz 3Kw (Customized)
Outside Size: 400mm*255mm*480mm
Inside Size: 400mm*255mm*480mm
At most 6 samples with 300mm*300mm

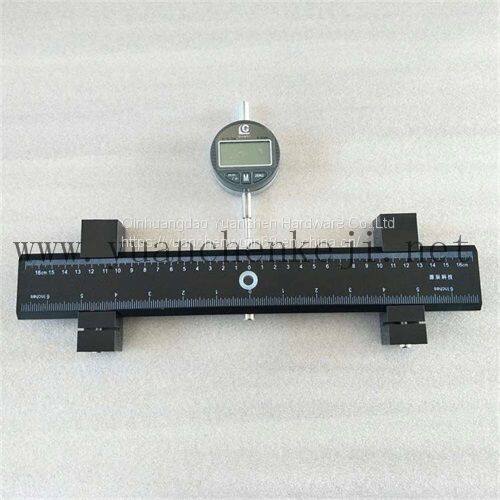

Tempered Glass Flatness Measuring Instrument
Measurement of arcuate form and wave form of toughened glass
Resolution: 0.01mm
Measuring Span: 300mm-12000 mm ( Customized)
Impactor for building Glass and Metal Guardrail

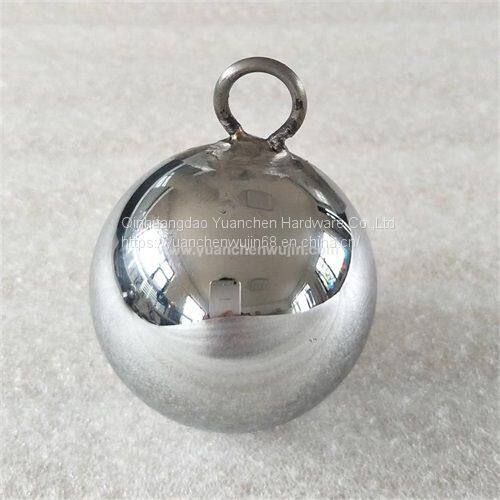

Impact Steel ball
Weight: 1040g ± 10g
Dia: 63mm

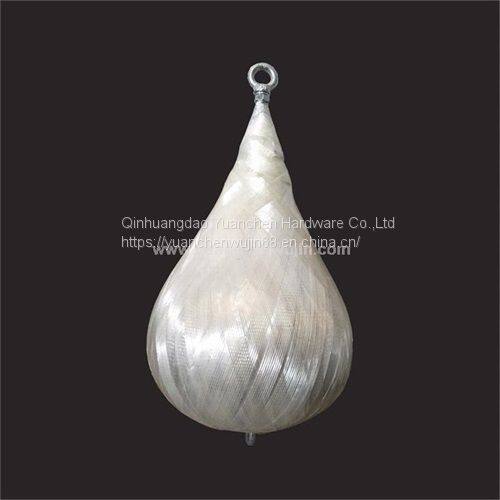

Shot bag impactor
Data:
Weight: 45kg ± 0.1kg
Height: 330mm ± 13mm
Max diameter: 250mm
Material: leather bag filling lead shot
Leather thickness: 0.15mm
Lead sand size: 2.5mm
Hard and Soft Body Impactors for Opaque Wall Components
Soft body:
Weight: 50kg
Dia: 400mm
Conical canvas bag filles with 3mm glass sphere
Hard Body:
Steel Ball 0.5 kg/50mm
Steel Ball 1 kg/62.5mm
