BS EN 12600 Pendulum Impact Testing Equipment For Glass
Reference Standard:
BS EN 12600:2002 Glass in building – Pendulum test – Impact test method and classification for flat glass
Technical Data:

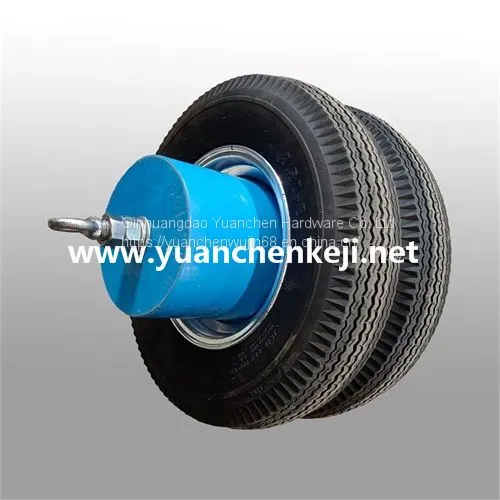

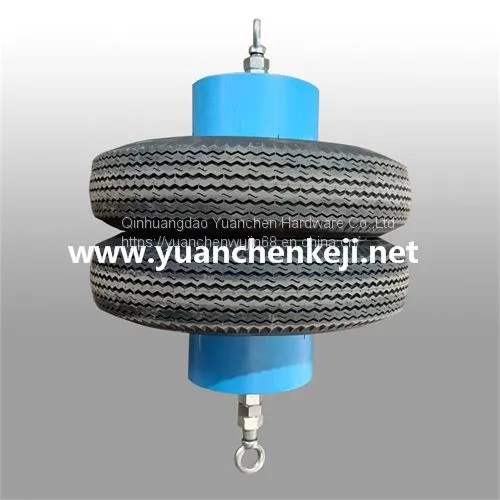

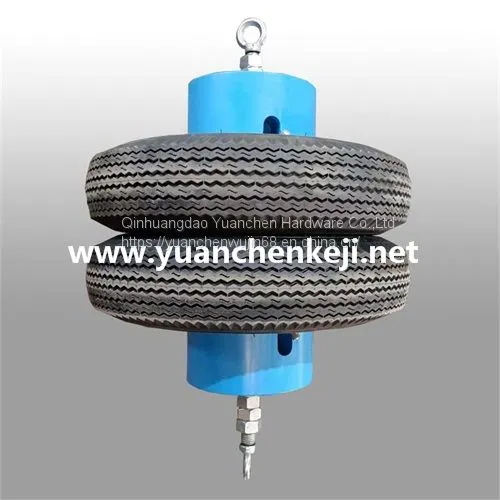

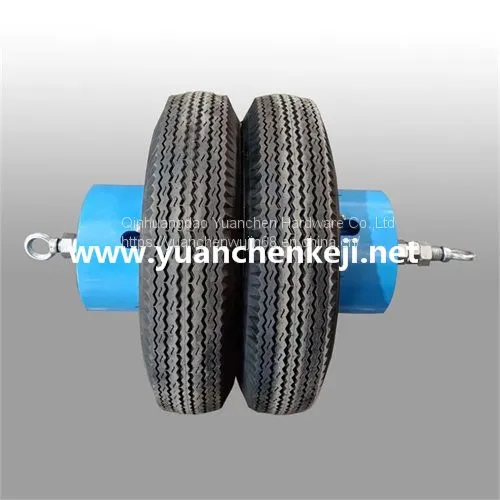

1) Pneumatic Tyres Impactor:
Weight: 50 kg ± 0.1 kg
Tyre pressure: 0.35Mpa ± 0.02Mpa
Tyre type: 3.50-R8 4PR
Sample size: 876 mm ± 2 mm * 1938 mm ± 2 mm
Inside the sample frame: 847 mm ± 5 mm * 1910 mm ± 5 mm
Impact frame footprint: 1300 mm*3900 mm*3700 mm
Lifting mode: manual, automatic optional
Impact body release mode: manual, automatic optional
2) Impact Testing Frame:
Frame Size: 1900mm*1500mm*3570mm
Samples Size: 1930mm*864mm
Lift: Electric
Release: Auto
Maximum impact height: 1200mm (customized)
Rubber Pad Width: 15mm
Rubber Pad Thickness: 3mm
Rubber Pad Hardness: Shore A50
