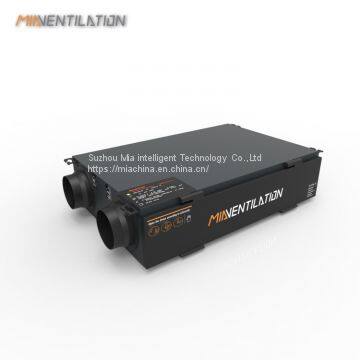

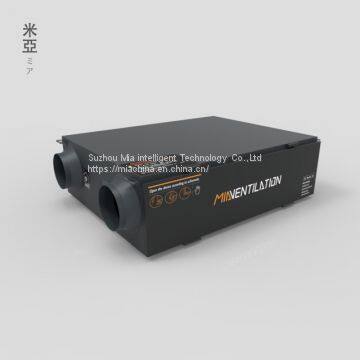

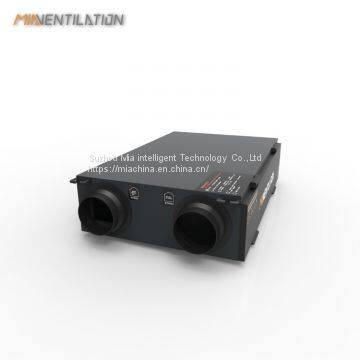

MIA 350CMH Residential External-rotor Motor Hrv/erv Heat Recovery Ventilation System

MIA 350CMH Residential External-rotor Motor Hrv/erv Heat Recovery Ventilation System thumbnail-1
MIA 350CMH Residential External-rotor Motor Hrv/erv Heat Recovery Ventilation System thumbnail-2
MIA 350CMH Residential External-rotor Motor Hrv/erv Heat Recovery Ventilation System thumbnail-3
MIA 350CMH Residential External-rotor Motor Hrv/erv Heat Recovery Ventilation System thumbnail-4
MIA 350CMH Residential External-rotor Motor Hrv/erv Heat Recovery Ventilation System thumbnail-5
MIA 350CMH Residential External-rotor Motor Hrv/erv Heat Recovery Ventilation System photo-1
MIA 350CMH Residential External-rotor Motor Hrv/erv Heat Recovery Ventilation System photo-2
MIA 350CMH Residential External-rotor Motor Hrv/erv Heat Recovery Ventilation System photo-3
MIA 350CMH Residential External-rotor Motor Hrv/erv Heat Recovery Ventilation System photo-4
MIA 350CMH Residential External-rotor Motor Hrv/erv Heat Recovery Ventilation System photo-5
US$ 250 - 350 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
MIA
Place of Origin:
China
Model Number:
MIA-AHE35NB
Contact Supplier Request Quote Chat Now
Suzhou Mia Intelligent Technology Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MIA
Place of Origin China
Model Number MIA-AHE35NB
Certification CE, ROHS
Voltage (V) 220
Power (W) 246
Installation Other, Ceiling Easy Installation
Overview
Quick Details

  • Warranty:

  • More than 5 Years

  • After-sale Service:

  • Online Technical Support

  • Project Solution Capability:

  • Graphic Design

  • Place of Origin:

  • Jiangsu, China

  • Brand Name:

  • MIA

  • Model Number:

  • MIA-AHE35NB

  • Air Flow:

  • 350CMH

  • Voltage:

  • AC 220~240V 50~60Hz

  • Power:

  • 246W

  • Heat recovery Rate:

  • 85%-88%

  • Noise:

  • 35dB(A)

  • Diameter:

  • 150mm

  • Weight:

  • 31.5kg

  • Pressure:

  • 392Pa

  • External Dimensions:

  • 880*686*260mm

  • Casing Material:

  • SGCC
Supply Ability

  • Supply Ability:

  • 8000 Set/Sets per Month

Packaging & Delivery

  • Packaging Details

  • Carton + Wooden box

  • Port

  • Shanghai port, Ningbo port, Shenzhen Port

  • Picture Example:

  • package-img



    package-img

  • Lead Time :

  • Quantity(Sets) 1 - 10 >10
    Est. Time(days) 10 To be negotiated
Product Details
Model
MIA-AHE35NB
Voltage
AC 220~240V 50~60Hz
Power
246W
Supply Air Flow
350CMH
Exhaust Air flow
350CMH
External Static Pressure
392Pa
Efficiency
85%~88%
Noise (SPL@1m)
35dB(A)
External Dimensions
880*686*260mm
Φd
150mm
Weight
31.5kg
MIA-A900
Three Speed Control +temperature and humidity display +time setting +PM2.5 display +CO2 display +APP control
MIA-6G
Three Speed Control +temperature and humidity display
+time setting
+PM2.5 display
+CO2 display
+APP control
MIA-ES900
Three Speed Control +temperature and hum display
+time setting
+PM2.5 display
+APP control
Inside Setting
Energy Recovery Exchanger Core

The PSY high thermal conductivity of molecular material, developed by Japanese DR team, has high heat recovery efficiency. It can infiltrate water molecules in the process of heat exchange; with the washable material, also can avoid the problem of bacteria and molds production.

Early Effect + Activated Carbon
The filter with composite fiber,sprayed with activated carbon powder, can ilter dust particle efficiently and the wind resistance is very small. This washable filter can be used repeatedly, greatly reduces the total cost of consumables.
High Efficiency H13 Hepa Filter (Optional)
The filter element that we use is 3M HEPA, meeting the European standard-Hl3, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.
High-voltage Electrostatic Dust Collection (Optional)
The removal rate of PM2.5 is highly to 98%, so that can effectively kill the bacteria and prevent the infection. lt's washable, also can becleaned with brush, and will not increase the using cost.
Product ranges
Selection Guide
In a room. area: S=65(m3), height: h=3(m), member: = 25 (people). calculated by the fresh air volume everyone needs,[the air volume everyone need: q=30(m3/h)]. so the total fresh air volume QI=n*q= 25*30=750(m3/h). If calculated by the fresh air changes rate, (the fresh air change rate P=4]. so the fresh air Q2=p*s*h=4*65*3= 780(m3/h);      Due to Q2>Ql. so here we take Q2 for the reference;      Combine with the products type, here we suggest MIA-AHE80N Energy Recovery Ventilation.
Select the diferent installation forms of air ventilation according to the characteristic of the bulding structure. Confirm the appropriate air volume according to the house' s use, area and containing people. Select the ventilation' s spedfication and amounts according to the confimed fesh air valume.
Product Packing
Why Choose Us
Certifications


Product Tags: Ventilation , Energy Recovery Ventilation System
