PT LED Poster Series High density digital LED media player Digital LED Poster China LED Poster
3mm; 1300 nit
Plug'N' Play
Easy move
Advertising LED Poster Features
This LED Poster Uses Ultra Slim & Light Weight Design
45mm thickness only
Entire weight less than 35kg per panel
Easily move
Plug'N' Play Digital Media Player
Zero configuration
Automatically picture and video format realized
Mulitple devices are easily controlled by cloud system
Easy Linkable and Split Design
Enable to link together to make one larger display
Normal link 6 signs to get 16:9 picture ratio
Quickly joint together and split

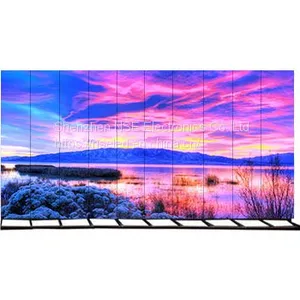

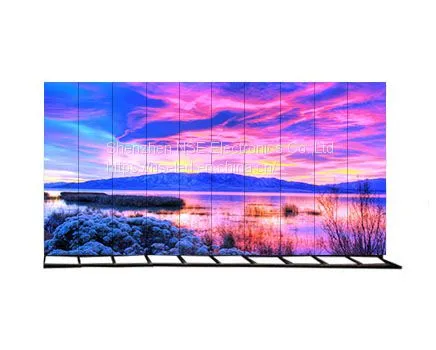

HD showing performance
By connecting 10 pcs LED poster can get 1080P high-definition LED video wall
making your ads more outstanding

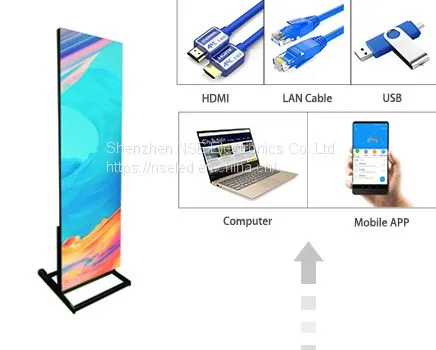

Easy Control
This LED poster can be easily control by WIFI/USB/Lan/HDMI (support PC and smart phone control)
Easy software management
Flexible Installation
Floor standing
Hanging,wall-mounted,landscape installation
Creative shapes available
This LED display is applied in various applications
Trade show,Chain stores,Luxury Shops,Convention centers,
shopping malls,meeting rooms, wedding party,airports, clubs and restaurants.
NSE Digital LED Poster Specification
The performance of this LED poster is shown below:
Model Type |
PT3 S (standard) |
PT3 L (Linkable) |
Pixel pitch |
3 mm |
3mm |
LED Type |
SMD 2121 Mat Black |
SMD 2121 Mat Black |
Pixel type(R / G / B) |
1R1G1B |
1R1G1B |
Module Pixel |
64 x 64 |
64*64 |
Module Resolution |
4,096 |
4,096 |
resolution (HxW) |
192×640 |
192*640 |
Module size |
192 x 192mm |
192*192mm |
Viewing Distance |
≥ 3 M |
≥ 3 M |
brightness |
≥ 1,000 cd/m² |
≥ 1,000 cd/m² |
Ratio |
8192:1/16384:1 |
8192:1/16384:1 |
Viewing Angle |
120° (H)/120°(V) |
120° (H)/120°(V) |
Weight |
35kg |
35kg |
Frame Size |
1930mm(H)X584mm(W)X45mm(T) |
1930mm(H)X584mm(W)X45mm(T) |
Case Material |
Aluminum |
Aluminum |
Grayscale |
16 bits RGB |
16 bits RGB |
Video frame rate |
60 Hz |
60 Hz |
Refresh rate |
> 1,200 Hz |
> 1,200 Hz |
Drive mode |
1/16 scan |
1/16 scan |
Input voltage |
AC90-240V |
AC90-240V |
Maximum Power Consumption |
600W |
600W |
Average Power Consumption |
280W |
280W |
Life Span |
≥ 100,000 Hours |
≥ 100,000 Hours |
MTBF |
≥ 10,000 Hours |
≥ 10,000 Hours |
Application |
Indoor/ Semi-Outdoor |
Indoor/ Semi-Outdoor |
Control method: |
Asynchronous(WIFI/USB/LAN) |
Asynchronous(WIFI/USB/LAN/HDMI) |
Temperature Operating (℃) |
.-40°～+75° |
.-40°～+75° |
Working Humidity |
10%–95%RH |
10%–95%RH |
Power Protection |
Over-current/Over-voltage protection |
Over-current/Over-voltage protection |
Compliance |
CE/ETL/ UL |
CE/ETL/ UL |
Joint screen qty(PCS) |
1 |
2 to 10 |
Joint gap(mm) |
Less than 3mm |
Less than 3mm |
NSE supplies LED curtain, LED poster, front access LED display, rental Type LED display, taxi top LED display, AL series manufacture in China. All the LED products from NSE are with best quality, technology and price
