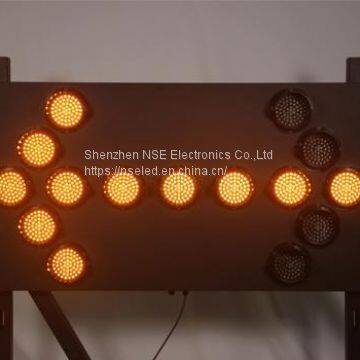

VA Series LED Arrow Board LED Traffic Display Manufacture LED Traffic Display Supplier

Name: VA Series LED Arrow Board LED Traffic Display Manufacture LED Traffic Display Supplier
Brand: NSELED
Availability: InStock

FOB Price

US$ 1 - 100 / Square Meter

1 Square Meter(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

NSELED

Place of Origin

China

Product Description

VA Series LED Arrow Board LED Traffic Display Manufacture LED Traffic Display Supplier

100mm Visor
125mm Visor
British Stanard
High Intensity Amber LEDs

LED Poster display Features

Cost effective

Adopt high brightness LED Lamp, our LED arrow sign is designed to be used for different traffic management.

Various Flash Patterns

We supply 10 different flash patterns.

Easy control on the panel

Wide Application Field

Fixed Installation

Vehicle Mounted ( With Linear Actuator)

Trailer Mounted

High Reliability

High Quality LEDs Used

IP65 Grade

12V/24V power input with Power

Proection Unit

Easy Maintenance

Smart Design

Easy replacement of cluster and control unit

inside.

LED Traffic Display Specification

Model Type	VA1400-750	VA1400-750F	VA1200-600	VA1200-600F
LED Type	5mm Round	5mm Round	5mm Round	5mm Round
Color	Amber, 590nm—592nm	Amber, 590nm—592nm	Amber, 590nm—592nm	Amber, 590nm—592nm
Cluster Diameter	125 mm	125 mm	100 mm	100 mm
Frame Size	1400mm(L)x750mm(H) x30mm (W)	1400mm(L)x750mm(H) x30mm (W)	1200mm(L)x600mm(H) X30mm (W)	1200mm(L)x600mm(H) X30mm (W)
Frame Materials	mild steel	mild steel	mild steel	mild steel
Installation Type	Fixed Installation/ Vehicle- mounted	Foldable / Vehicle- Mounted	Fixed Installation/ Vehicle-mounted	Foldable / Vehicle- Mounted
Cluster Quantity	15 PCS	15 PCS	16 PCS	16 PCS
LEDs Q'typer Cluster	40 PCS	40 PCS	40 PCS	40 PCS
Brightness	>=15000 nit	>=15000 nit	>=15000 nit	>=15000 nit
View Angle	30°(H)/30°(V)	30°(H)/30°(V)	30°(H)/30°(V)	30°(H)/30°(V)
Power Supply Input	DC12/ DC24V	DC12/ DC24V	DC12/ DC24V	DC12/ DC24V
Max Consumption	54 w	54 w	30 w	30 w
Average Consumption	18 w	18 w	15 w	15 w
Optimal Viewing Distance	1000 M	1000 M	1000 M	1000 M
Life Span	100,000 Hours	100,000 Hours	100,000 Hours	100,000 Hours
MTBF	10,000 Hours	10,000 Hours	10,000 Hours	10,000 Hours
Flashing Patterns	4-10 Channels	4-10 Channels	4-10 Channels	4-10 Channels
Temperature Operating	-40°～+75°	-40°～+75°	-40°～+75°	-40°～+75°
Working Humidity	10%–95%RH	10%–95%RH	10%–95%RH	10%–95%RH
Screen Protection	Waterproof, rust-proof, dust-proof, anti-static, anti-mildew	Waterproof, rust-proof, dust-proof, anti-static, anti-mildew	Waterproof, rust-proof, dust-proof, anti-static, anti-mildew	Waterproof, rust-proof, dust-proof, anti-static , anti-mildew
Power Protection	over-current/ over-voltage protection	over-current/ over-voltage protection	over-current/ over-voltage protection	over-current/ over-voltage protection
Panel Weight	26 kg	36 kg	20 kg	28 kg
Package	Honeybox /Wooden	Honeybox /Wooden	Honeybox /Wooden	Honeybox /Wooden
Package Dimension	1500mm(L)X800mm(H) X 60mm(W)	1500mm(L)X800mm(H) X 60mm(W)	1300mm(L)X700mm(H) X 60mm(W)	1300mm(L)X700mm(H) X 60mm(W)
Gross Weight	30 kg	42 kg	23kg	32 kg
Certificate:	CE, ROHS, ETL	CE, ROHS, ETL	CE, ROHS, ETL	CE, ROHS, ETL

NSE supply the portable LED sign, LED traffic display, which include taxi top LED display, bus LED display, LED arrow board, variable message sign(VMS), VMS trailer display,etc

If you want to know the latest information about LED Poster, please click here to visit our website.
