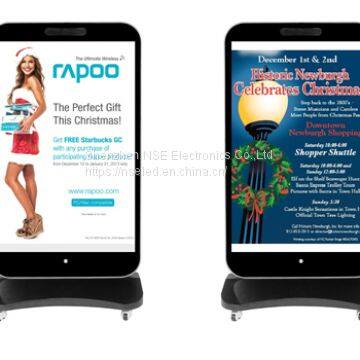

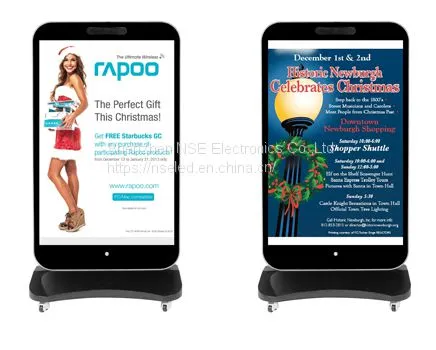

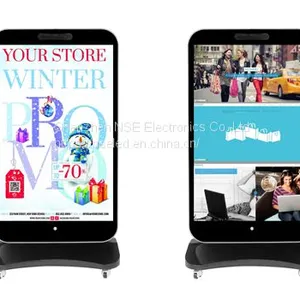

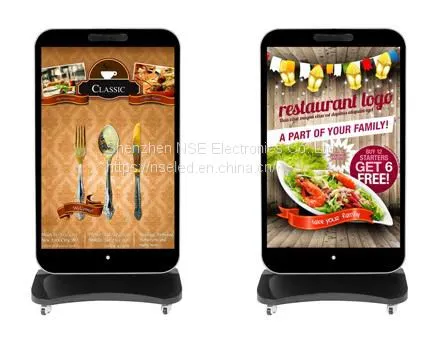

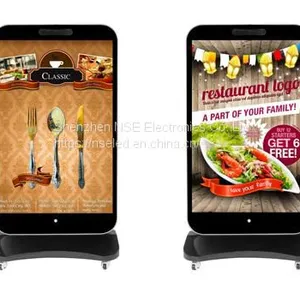

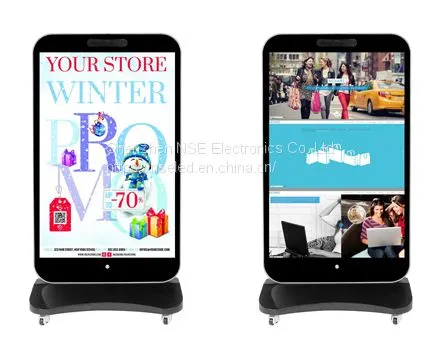

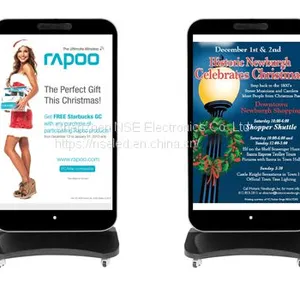

AP Series LED Poster Digital advertising LED poster LED Poster China LED Poster exporter
5mm(Outdoor),4mm(Indoor),2.5mm(Indoor) Available
Advertising LED Poster Features
Lower Power Consumption
The power consumption for a LED Poster is only 1/10 of the consumption in LCD panel. ( Comparable with same size)
Easy Move & Maintenance
Easy transportation and moved by using strong wheel.
Easy raplacement of Power supply and LED panels.
Smart Asynchronous control
Group Intelligent Control(GIC System).
Location Precise Advertising .
Advertising Management System 3G/4G/WIFI/USB control.
GPS real-time monitoring.
LED Poster Panels Specification
Parameter |
|||
Model Type |
AP5 |
AP4 |
AP2.5 |
Pixel Pitch (mm) |
5 |
4 |
2.5 |
Pixel Configuration |
1R1G1B |
1R1G1B |
1R1G1B |
LED type |
SMD 2727 |
SMD2121（Black） |
SMD2121（Black） |
Module Size（mm) |
160*160 |
256*128 |
160*80mm |
Screen Size （mm) |
32*32 |
1024*1536mm |
640*1280mm |
Screen Resolution (W*H) |
640(W)*1280(H)mm |
256*384 |
256*512 |
Frame Size（mm) |
128(W)*256(H) |
1282*1908*95 |
715*1720*95mm |
Frame Materials |
Aluminum frame / Steel base |
Aluminum frame / Steel base |
Aluminum frame / Steel base |
Cover materials |
Armored glass |
Armored glass |
Armored glass |
Working Environment |
Outdoor |
Indoor |
Indoor |
Weight |
150KG |
110 KG |
100KG |
Brightness |
6,000nits |
≥1400nit |
≥1500nit |
Scanning |
1/8 scan |
1/16 Scan |
1/32 Scan |
View Angle (50% brightness) |
H≥110°, v≥55° |
H≥110°, v≥55° |
H≥110°, v≥55° |
Viewing Distance |
3-60m |
≥4m |
≥3m |
Max Power consumption(W) |
1000 watts |
860W |
1000W |
Input Voltage |
AC 220/110±15% |
AC 220/110±15% |
AC 220/110±15% |
MTBF |
≥ 10,000 hs |
≥ 10,000 hs |
≥ 10,000 hs |
Operating Temperature |
-30 ℃ ~ +60 ℃ |
-30 ℃ ~ +60 ℃ |
-30 ℃ ~ +60 ℃ |
Operationg humidity |
10%～75% |
10%～75% |
10%～75% |
Control System |
Support Local Area Network, Internet, 3G,4G, WIFI |
Support Local Area Network, Internet, 3G, 4G,WIFI |
Support Local Area Network, Internet, 3G, 4G,WIFI |
Certificates |
UL,CE,ROHS |
We can make customized LED Poster as per request
NSE supply the portable LED sign,Taxi Top LED Display, Advertising LED Display, Rental LED Display, which include taxi top LED display, Digital Led Poster, Soft LED Module, LED Dancing Floor, Transparent LED Display,etc.
If you want to know the latest information about LED Poster, please click here to visit our website.
