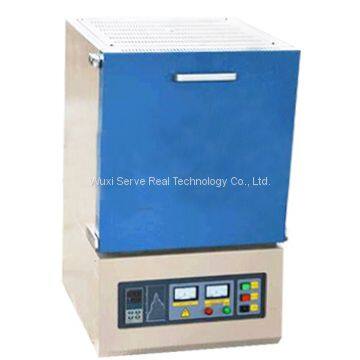

1800 Degree C muffle furnace CE Certificated
This muffle furnace hearth is made of Japan made 1900 type Alumina polycrystalline ceramics fiber, there is Alumina coatings on surface of hearth, highly improves the heat efficiency and can extend service life; Kanthal 1900 degree C quality Silicon molybdenum rod as heat element; dual layer enclosure material, advanced vacuum heat insulation technology, greatly reduced the cabinet surface temperature. B type Double platinum rhodium thermocouple, equipped with 30 segments PID intelligent temperature control system, with protection functions of over temperature, thermocouple broken, over-current; Features uniform temperature, low surface temperature, fast temperature lift/down, power saving.
Applications
Quenching, annealing, tempering of small pieces steel parts, elements analysis, sintering, melting, analysis of metal and ceramic material.
Technical specification
Furnace structure |
Double layer steel casing with double cooling fans to ensure furnace surface temperature below 50oC. |
Chamber size |
200x200x200mm(or customized) |
Overall size |
560*660*820mm |
Max. temperature |
1800Degree C(normal work temperature 1700 degree C) |
Protection |
Over-temperature and thermocouple-broken |
Temperature control |
PID automatic control and auto-tune function. 30 programmable segments for precise control |
Heating rate |
0-20oC/min |
Temperature accuracy |
+/- 1oC |
Heating element |
Kanthal super 1900 degree C quality Silicon molybdenum rod |
Working voltage |
220VAC, 50HZ |
Max. Power |
5kw |
Temperature measurement |
B type thermocouple, Temperature measurement at right behind |
Net weight |
140kg |
Furnace structure |
Vertical, bench, integration, seperated (optional) |
Door opening |
Side, upper, bottom, slide |
Standard accessories |
Crucible tongs, high temperature glove, thermocouple, pad |
Certification |
CE |
