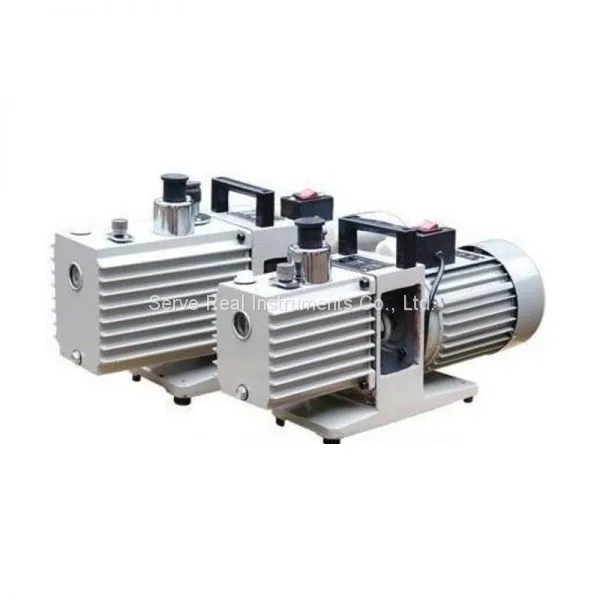

Help CenterSingle Tank Vacuum Pump for Laboratory
Related Products
Features
Compact size, light weight, low noise
Gas ballast valve to remove tiny amount of water vapor
Automatic anti-return oil double safety device
Equipped with minor-caliber adapter, KF interface
Specifications
Parameter/Model |
2XZ-0.25 |
2XZ-0.5 |
2XZ-1 |
2XZ-2 |
2XZ-4 |
|
Pumping rate m3/h(L/S) |
50（HZ） |
0.9（0.25） |
1.8（0.5） |
3.6（1） |
7.2（2） |
14.4（4） |
60(HZ) |
1.1（0.3） |
2.1（0.6） |
4.3（1.2） |
8.6（2.4） |
17.2（4.8） |
|
Limiting pressure （Pa） |
Partial pressure |
≤6×10-1 |
≤6×10-2 |
≤6×10-2 |
≤6×10-2 |
≤6×10-2 |
Ram pressure |
≤6.5 |
≤1.33 |
≤1.33 |
≤1.33 |
≤1.33 |
|
50HZ |
Revolving speed（r/min） |
1400 |
1400 |
1400 |
1400 |
1400 |
60HZ |
Revolving Speed（r/min） |
1720 |
1720 |
1720 |
1720 |
1720 |
Motor power（kw) |
0.12 |
0.18 |
0.25 |
0.37 |
0.55 |
|
Supply voltage（V) |
220 |
220/380 |
220/380 |
220/380 |
220/380 |
|
Air inlet dia（mm）（outer diameter） |
φ15 |
φ20 |
φ20 |
φ30 |
φ30 |
|
Noise（dBA） |
63 |
65 |
65 |
68 |
68 |
|
Oil volume （L） |
0.5 |
0.6 |
0.7 |
1 |
1.2 |
|
Over dimension（mm) |
403×130×240 |
447×168×260 |
469×168×260 |
514×168×282 |
565×168×282 |
|
Weight（Kg）gross /net |
16/15 |
17/16 |
18/17 |
22/20 |
24/22 |
|
