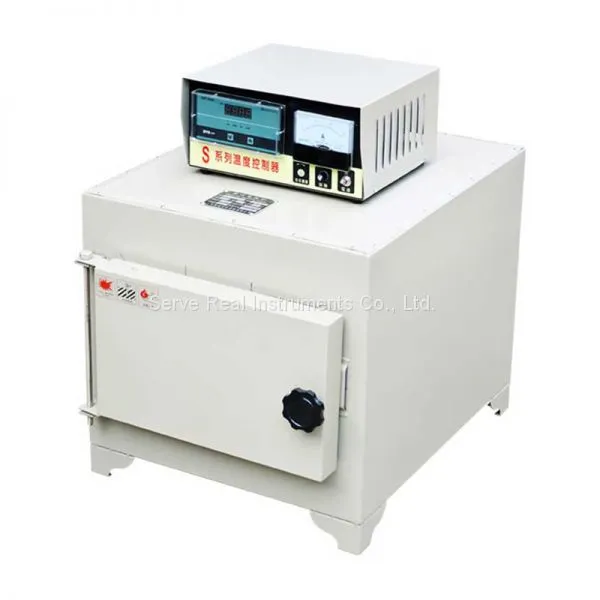

Help CenterSplit Muffle Furnace 1000C 1200C 1300C, Box Type Electric Resistance Furnace
Related Products
Description
Temperature controlled by controller and Ni-Cr - Ni-Si electric couple.
Furnace shell made of thin steel plate, Inner made of silicon refractory.
Spiral heating element (which is made of iron-chromium-aluminum alloy).
The door brick of programmable electric furnace are made of light refractory material.
The insulation layer between the inner furnace lining and the furnace shell is made of refractory fiber and expanded pearl products.
Features
Cuboid shape
The hearth is made of high-quality silicon carbide refractory materials.
High-quality insulation material used for insulation layer.
A heat shield made of high-quality refractory material is installed on the inside of the furnace door to reduce the heat loss of the mouth and improve the uniformity of the temperature in the furnace
XMT series temperature controller intelligently controls the measurement, indication and adjustment of the temperature inside the furnace.
A broken couple protection device is installed to keep electric furnace and the processed workpiece safe when the temperature measuring thermal couple is disconnected during the heating process.
Specifications
Model |
Power (KW) |
Voltage (V) |
Temperature rating (℃) |
Hearth size (cm) |
Overall size (cm) |
Gross weight (kg) |
SX2-2.5-10 |
2.5 |
220 |
1000 |
20×12×8 |
54×37×47 |
48 |
SX2-4-10 |
4 |
220 |
30×20×12 |
66×45×54 |
80 |
|
SX2-8-10 |
8 |
380 |
40×25×16 |
81×53×63 |
130 |
|
SX2-12-10 |
12 |
380 |
50×30×20 |
93×62×73 |
200 |
|
SX2-2.5-12 |
2.5 |
220 |
1200 |
20×12×8 |
54×37×47 |
48 |
SX2-5-12 |
5 |
220 |
30×20×12 |
66×46×55 |
80 |
|
SX2-10-12 |
10 |
380 |
40×25×16 |
81×53×63 |
130 |
|
SX2-12-12 |
12 |
380 |
50×30×20 |
93×62×73 |
200 |
|
SX2-4-13 |
4 |
380 |
1300 |
25×15×10 |
64×50×68 |
85 |
SX2-6-13 |
6 |
380 |
25×15×10 |
63×60×60 |
115 |
|
SX2-8-13 |
8 |
380 |
50×20×18 |
90×63×71 |
200 |
|
SX2-10-13 |
10 |
380 |
40×20×16 |
76×66×68 |
150 |
