Vacuum Sublimation Equipment for OLED Material

Power

5KW

Voltage

AC220V  50/60Hz

heating element

 resistance wire

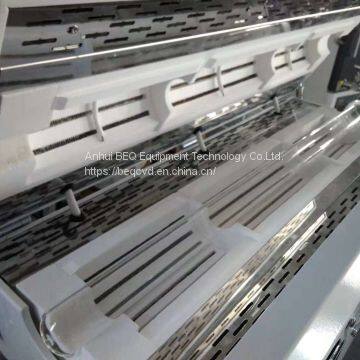

heating zone

 three zones,three points temp. control independently

 length of zone

200+300+200mm(customizable)

Sublimation area and insulation zone temperature

Continuously adjustable from room temperature to 800 ° C

Temperature Controller

PID automatic and double  control by digital  industrial instrument and PLC

Paperless record

Built-in storage record running process data, external USB interface, you can connect one-click copy data with computer.

Structure

1）half open

2）The feeding end is equipped with a high-precision mass flow meter to accurately control the gas flow, which can realize the expansion and adjustment of the production process.

3）Automated process flow is used to set the process for one-button operation. Reduce human factors and achieve a process reliability of 99.9%.

Filter

Multi-level filter protection device including Microporous metal filter ,condensation trap liquid nitrogen  embedded

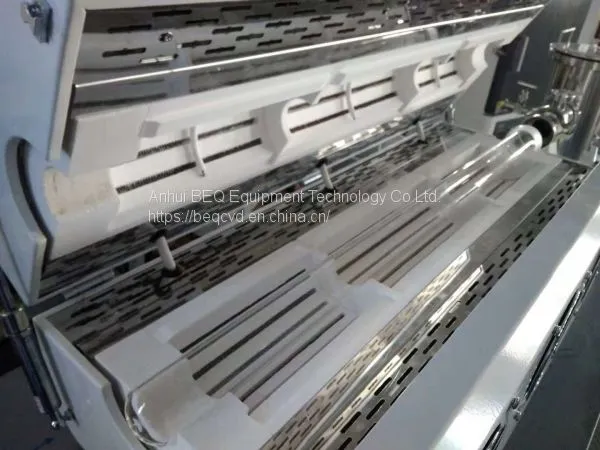

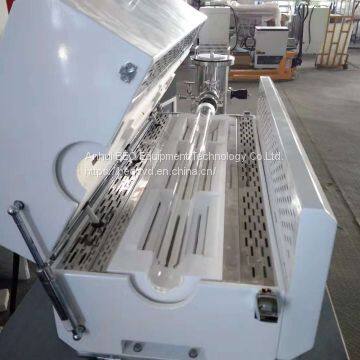

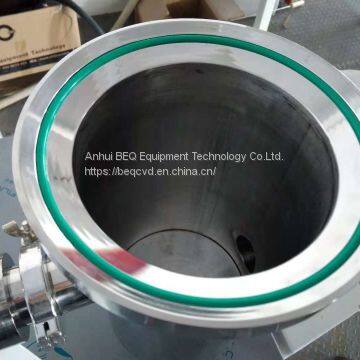

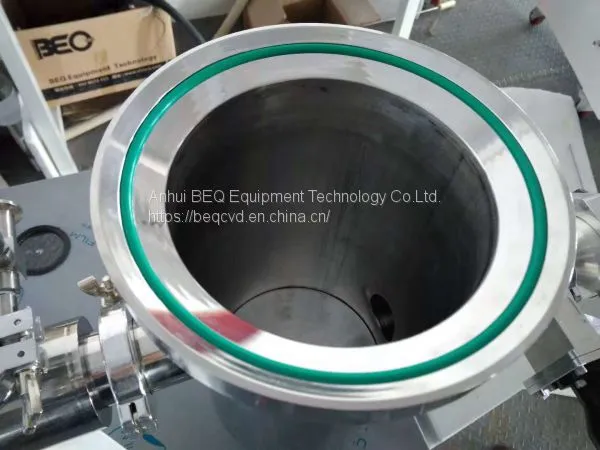

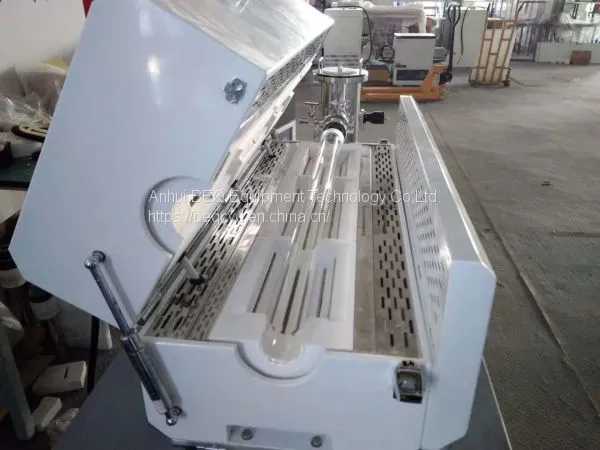

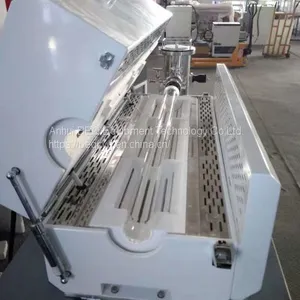

chamber

The inner and outer quartz tube devices ensure that the vacuum chamber tubes are free from contamination and are easy to clean.

After the inner layer tube is sublimated, the sections are easy to distinguish, which can ensure the purity and yield of the product to the utmost extent.

Outer tube (single-end sealing): 60/100*1000mm, the inner tube is customized according to requirements

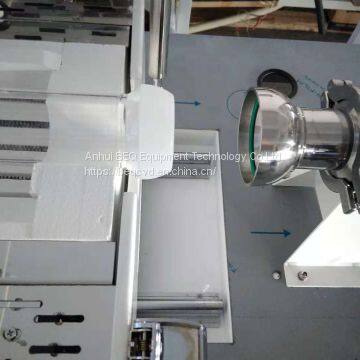

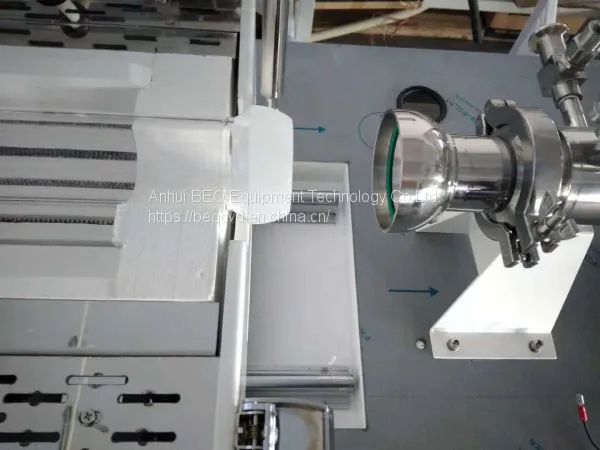

vacuum unit

Direct connection with the main tube and molecular pump to ensure high vacuum in the experiment, the vacuum can reach 10 -4Pa

Fore pump

pumping speed：165L/Min

Molecular pump

pumping speed：49L/S（KF40）

Rotating speed：81000rpm
