Super enameled copper clad aluminum wires provide aqua
1. Thermal Class:
130B/155F/180H/200C/220C+ centigrade
2.Performance features:
It has good electric conductivity.The density of aluminum is low(just 40% of that of copper enamelled wires). It is light and the length in each unit weight can reach 2.5--2.7 times than that of copper enamelled wires.By using this material, the cost can be reduced by 30% above.
3.Main Application:
The centigrade of 130/155/180 can be used as the winding wire demanding light weight,high conductivity, heat dispersion performance, especially for the winding wire transferring high frequency signal such as the winding wire of high frequency transformer, common transformer, electric induction coil, miniature electric machine and so on.
The centigrade of 200/220 can be used as the winding wire of electric machine or electric appliance working under high temperature, severe cold, radiated, over-loaded environment.
4.Supply scope
0.13--1.50mm
thin paint film,thick paint film, paint film requested by clients
The physical and mechanical performance of copper clad aluminum wire,
copper wire , aluminum wire
|
conductor Performance |
Copper Clad Aluminum Wire |
Copper Wire |
Aluminum Wire |
Volume ratio of copper (%) |
15 |
109 |
0 |
Specific gravity (g/cm3) |
3.63 |
8.89 |
2.70 |
Length ratio in same wire diameter and unit weight |
2.5: 1 |
1: 1 |
3.29: 1 |
Conductivity (IACS) |
70 |
100 |
62 |
Electric resistivity(Ωmm2) |
0.02462 |
0.01724 |
0.02740 |
Tensile strength (M pa ) |
95-135 |
215-266 |
68-107 |
Elongation (%) |
≥10 |
≥20 |
≥8 |
Winding performance |
good |
very good |
good |
Weight |
good |
bad |
very good |
Soldering performance |
very good |
very good |
bad |
Direct current resistance |
good |
very good |
good |

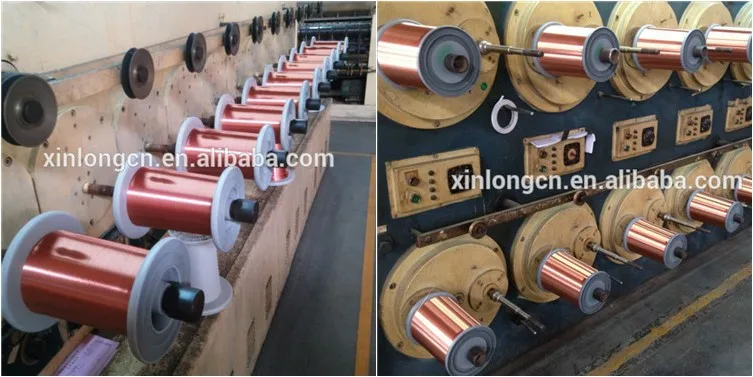

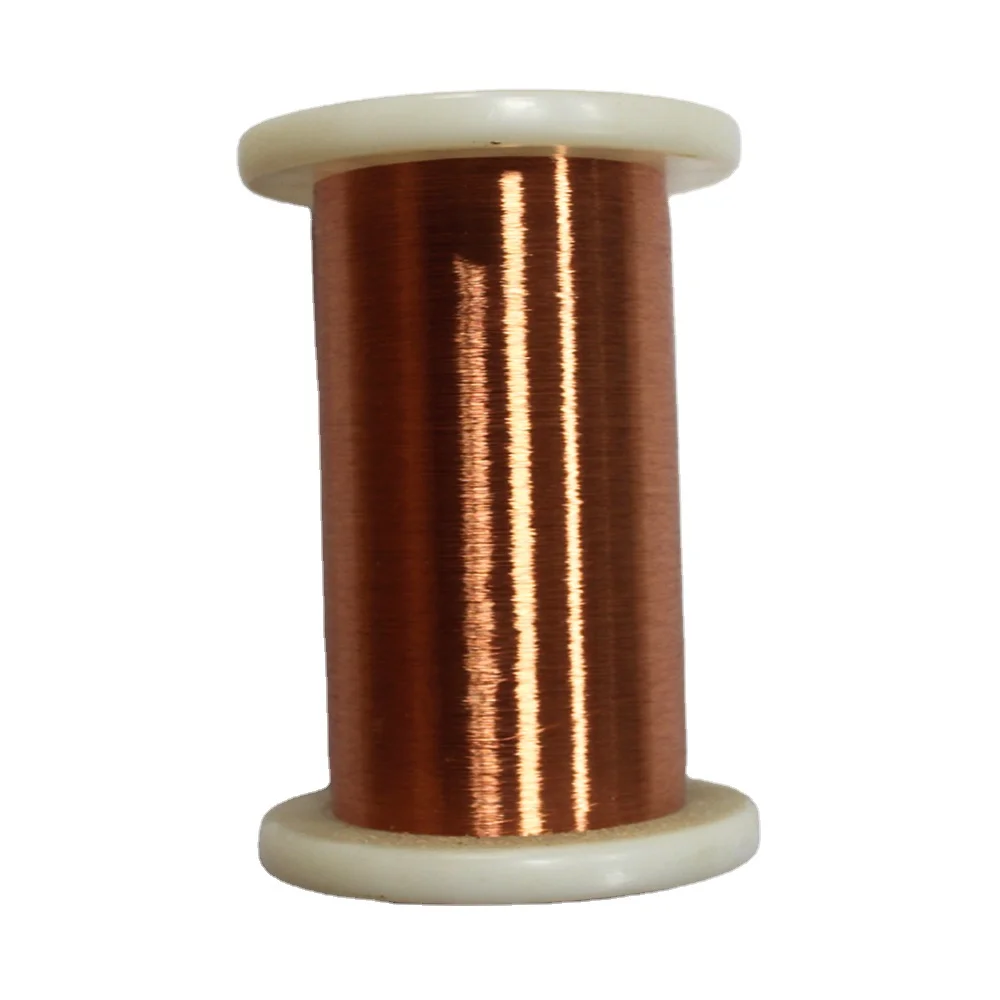

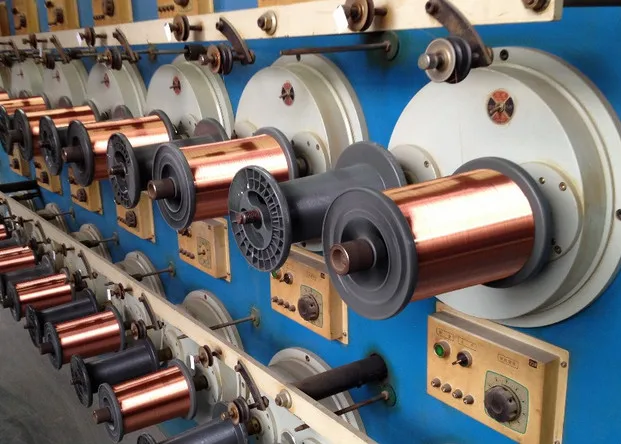

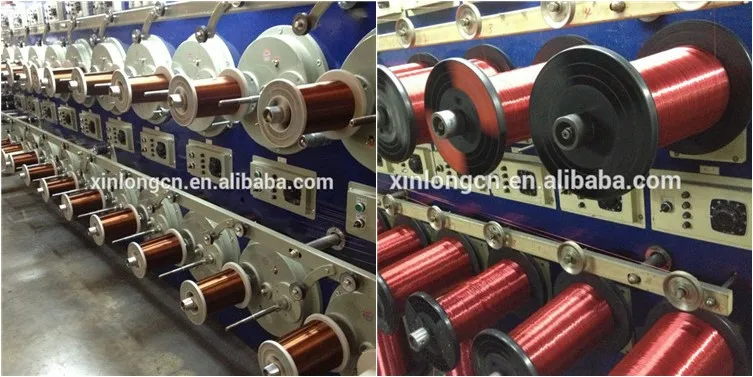

5.Model pictures

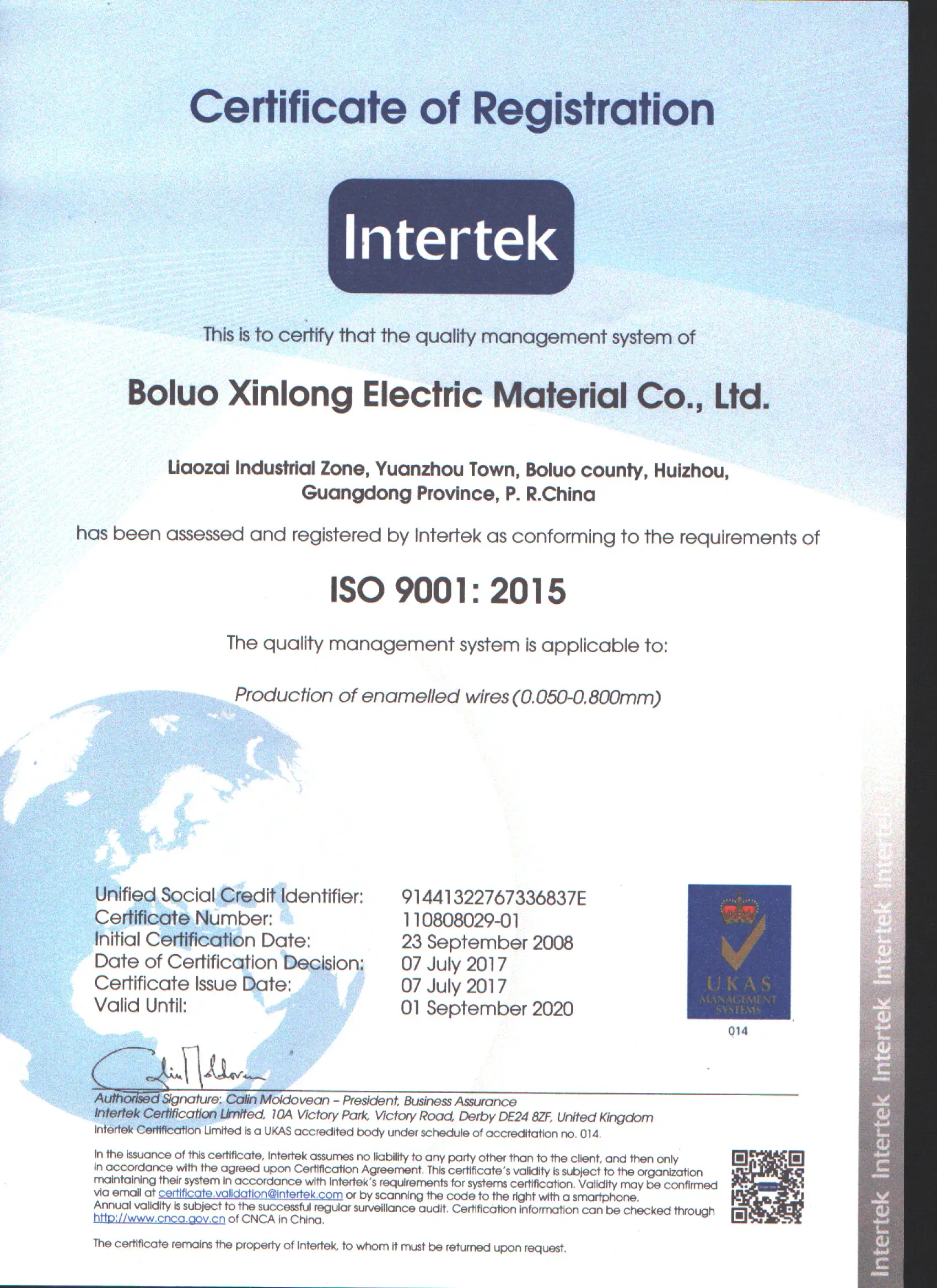

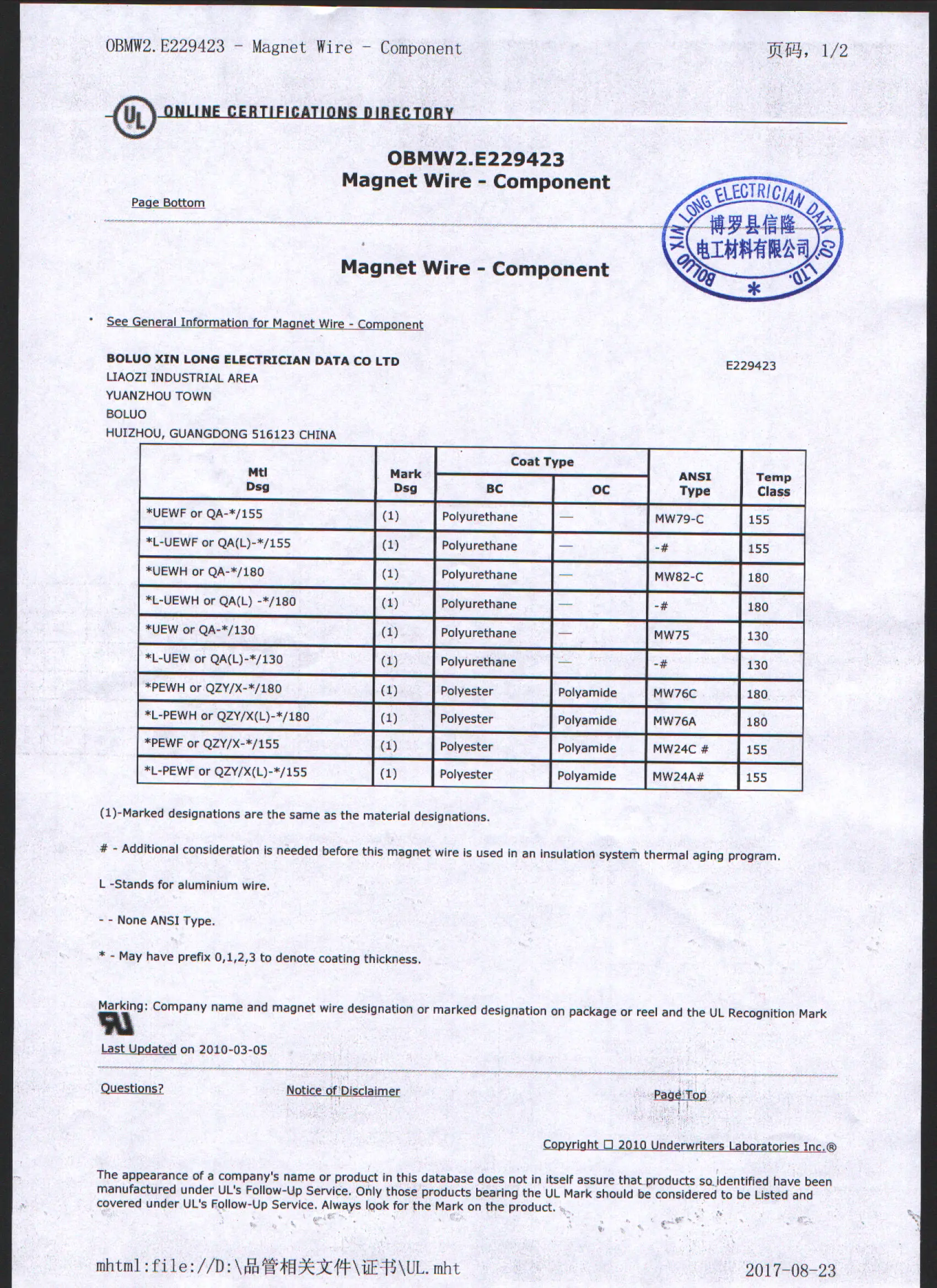

6.Identification
