Flight Laser Marking Machine Type: FST-20/30/50

Flight Laser Marking Machine Type: FST-20/30/50 photo-1

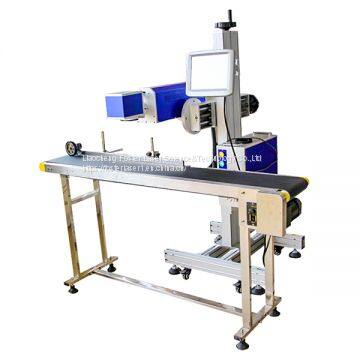

Flight Laser Marking Machine Type: FST-20/30/50 photo-2

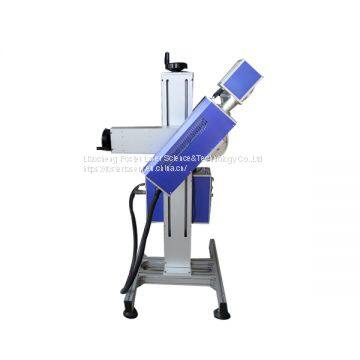

Flight Laser Marking Machine Type: FST-20/30/50 photo-3
US$ 100 - 1000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
FosterLaser
Place of Origin:
China
Certification:
CE, ISO
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
15 days
Brand Name FosterLaser
Place of Origin China
Certification CE, ISO
Condition New
Quick Information
  • Brand Name:FosterLaser

  • Place of Origin:China

  • :

Description


Flight Laser Marking Machine


Type: FST-20/30/50

Power: 10W/20W/30W/50W

Laser wavelength: 1064nm

Marking depth: ≤1.2mm

Marking speed: 800  standard  characters/second



Description:

• The laser output power is stable and the spot quality is good

• The marking speed is 2 - 3 times that of the traditional model

• Over - long life, up to more than 100,000 hours

• No operating system restrictions, easy operation, fully dosed optical path, stable, reliable and maintenance - free

• No pollution, no noise, no consumables. Power consumption is 5 % - 10 % of that of traditional models

• Overcomes the weakness of laser with high anti-material damage and can mark all metals

• Ultra - fine with 2540 dpi resolution.

Parameter:
TypeFST-20/30/50
Power10W/20W/30W/50W
Laser  Wavelength1064nm
Q-frequency20KHZ - 100KHZ
Optional  Marking  Area100mm*100mm  /  150mm*150mm/200mm*200mm  /  300mm*300mm
Marking  Depth≤1.2mm
Marking  Speed800  standard  characters/second
Minimum  Line  Width0.012mm
Minimum  Character0.15mm
Repeated  Precision±0.003mm
Life-span  of  Fiber  Laser  Module100  000hours
Beam  QualityM2  <1.5
Focus  Spot  Diameter<0.01mm
Output  Power  of  Laser10%~100%  continuously  to  be  adjusted
System  Operation  EnvironmentWindows  XP  /  W7--32/64bits  /  W8--32/64bits
Cooling  ModeAir  cooling--Built-in
Temperature  of  Operation  Environment15℃~35℃
Power  Input220V  /  50HZ  /  single  phase  or  110V  /  60HZ  /  single  phase
Power  Requirement<400W
Communication  InterfaceUSB
Machine  Dimension/after  package650mm*210mm*550mm/880*420*700mm
Net  Weight/gross  weight30KG/53kgs
Optional  (Not  free  of  charge)Rotary  Device,  Moving  Table,  other  customized  Automation



Factory:


Certification:


Service:

Pre-sale service:

Before the machine is shipped,we will complete the installation of the machine and commission it to the best working condition. You can use it directly after receiving the machine.If necessary,we have professional after-sales to provide you with machine support.

After-sale Service:

The whole machine warranty for one year(except the laser tube and mirrors lens).Any questions,24 hours online professional advice available.

FAQ:

1. How can I choose the most suitable machine?

Please tell us three questions, our customer service staff will recommend the most suitable product for you.

1) Which material is mainly used for? Cutting, engraving or marking?

2) What is the max thickness of the cut?

3) How big working area you need?

2. How long can deliver the machine?

Common machine can be delivered within 3~7 days. Custom-made machine needs 12~14 days.

3. Is there any after-sales service?

Yes, we have a perfect after-sale service team to supply technical support to our customers.

Our technicians can assist you to install the machine and give you free training after you receive machine.





Price
  • Delivery Port :Qingdao

Packaging & Delivery
  • Packing :According to customer requirements

  • Delivery Lead Time :7-15 Days

  • Supply Ability :500sets/month
