FST-1390 Laser Mixed Cutting Machine
- 500 Set / Sets per Month
- Qingdao
- T/T L/C
- 7 days
Product Details
Brand Name: | FosterLaser | Place of Origin: | China | Certification: | CE, ISO |
Condition: | New | Graphic Format Supported: | PLT | Applicable Material: | Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Stone, Wood |
Product Description
Brand Name:FosterLaser
Place of Origin:China
:

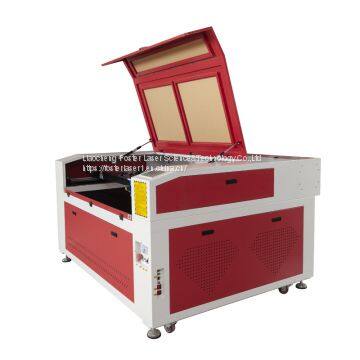

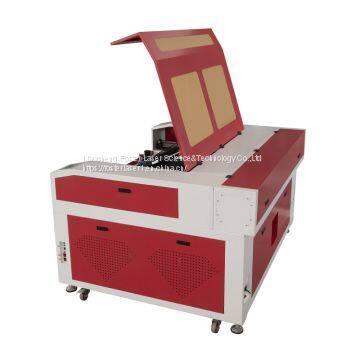

FST-1390 laser mixed cutting machine
1. Adopt the international advanced DSP control technology, it is the pioneer to fast continuously curving-cut and shortcut processing pathway optimizing function, accordingly increase greatly the decency.
2. It automatically equalizes the diminishing of light during the whole operating to ensure the same cutting effect ion different areas.
3. High-speed cutting control software and buffer function in high-speed movement can improve production efficiency.
4. The up-to-date software provides the direct output of original pictures; completely fit the graph foams such as CAD, CAM of CAD, and CorelDraw software, to meet the practical design requirement of the end-users.
5. The advanced colors and the toms of the cutting can realize the one-time output completely or partially.
6. It uses USB port to transmit data, equipped with large-capacity memory, improving working efficiency greatly.
Model | FST-1390 |
Worktable | honeycomb or blade |
Engraving area | 1300*900mm |
Laser Power | 60w/80w/ 100w/ 150w / 300w |
Engraving Speed | 500mm/s Max |
Engraving Depth | 5mm |
Cutting Speed | 60mm/s |
Cutting Depth (Acrylic) | 0-20mm (acrylic) |
Up and down work table | Ec Up and down 550mm adjustable |
Minimum Shaping Character | 1 X 1mm |
Resolution Ratio | 0.0254mm (1000dpi) |
Power Supply | 220V(or110V)+/-10% 50Hz |
Resetting Positioning | Accuracy less than or equal to 0.01mm |
Water protecting sensor and alarm | Yes |
Operating Temperature | 0-45℃ |
Operating Humidity | 35-70℃ |
Graphic Format Supported | PLT/DXF/BMP/JPG/GIF/PGN/TIF |
Operation System | Windows 98/ME/2000/XP/VISTA/Windows 7/8 |
Software | Ruda/AWC |
Engraving on Curve Surfaces(Yes/No) | No |
Control Configuration | DSP |
Water Cooling(Yes/No) | Yes |
Maximum Height Of Materials To Engrave(mm) | 120mm |
Laser Tube | Sealed CO2 glass laser tube |
Machine Dimension | 1840x1400x1030(mm) |
Packing Dimension | 2040×1600×1320mm |
Gross Weight | 410kg |
Delivery Port :Qingdao
Packing :According to customer requirements
Delivery Lead Time :7-15 Days
Supply Ability :500sets/month
