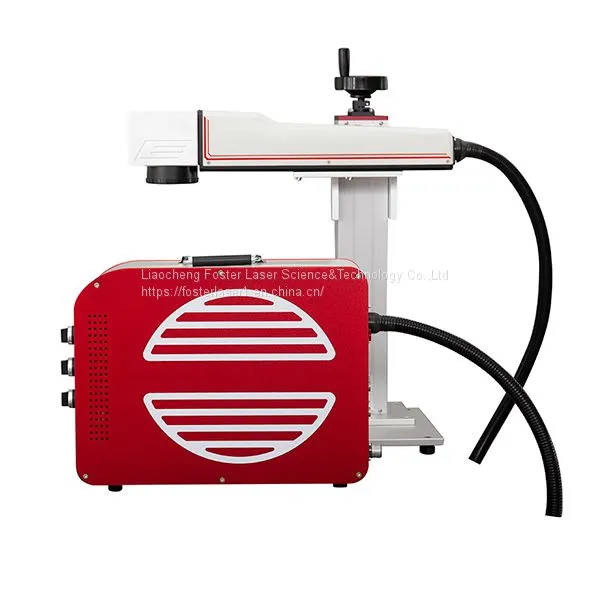

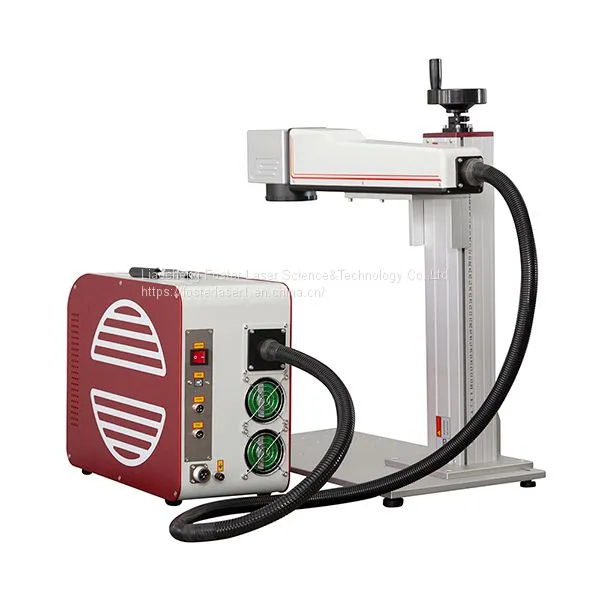

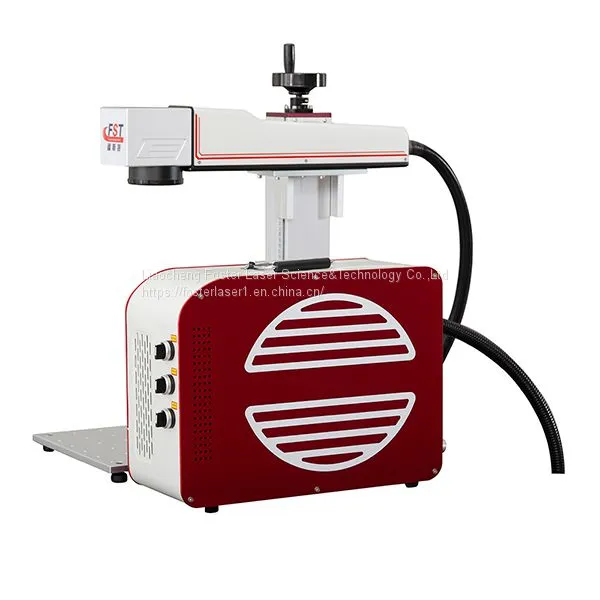

FST Split Red-white Portable Fiber Marking Machine
Brand Name:FosterLaser
Place of Origin:China
:
Model: FST Portable fiber marking machine
Laser type: Fiber Laser
Working area: 110*110/150*150(mm)
Laser power: 10W/20W/30W/50W
Repeated precision: ±0.003mm
Working voltage: 220V / 50HZ / single phase or 110V / 60HZ / single phase
| Model | FST Portable fiber marking machine |
| Laser Type | Fiber Laser |
| Working area | 110*110/150*150(mm) |
| Laser power | 10W/20W/30W/50W |
| Laser wavelength | 1060nm |
| Beam quality | m²<1.5 |
| Application | metal and nonmetal |
| Marking Depth | ≤1.2mm |
| Marking Speed | 800 standard characters/second |
| Minimum Line Width | Minimum Line Width |
| Minimum Character | 0.15mm |
| Repeated Precision | ±0.003mm |
| Focus Spot Diameter | <0.01mm |
| Communication Interface | USB |
| Working voltage | 220V / 50HZ / single phase or 110V / 60HZ / single phase |
| Cooling Mode | Air Cooling |
| Supported graphic formats | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT |
| Controlling software | EZCAD |
| Working temperature | 15°C-45°C |
| Rsolution ratio | <4500DPI |
| Optional parts | Rotary Device, other customized Automation |
| Color | Red and white |
| Warranty | 2 year |
| Package | Plywood |
Mobile phone keypad, Plastic translucent keys, Electronic components, Integrated circuits (IC), Electrical appliances, Communication products, Sanitary ware, Tools, Accessories, Knives, Eyeglasses and clocks, Jewelry, Auto parts, Luggage buckle, Cooking utensils, Stainless steel products, other industries, etc.
Metals (including rare metals), Engineering plastics, Electroplating materials, Coating materials, Coating materials, Plastics, Rubber, Epoxy resin, Ceramic, Plastic, ABS, PVC, PES, Steel, Titanium, Copper and other materials, etc.
Pre-sale service:
Before the machine is shipped,we will complete the installation of the machine and commission it to the best working condition. You can use it directly after receiving the machine.If necessary,we have professional after-sales to provide you with machine support.
After-sale Service:
The whole machine warranty for one year(except the laser tube and mirrors lens).Any questions,24 hours online professional advice available.
1. How can I choose the most suitable machine?
Please tell us three questions, our customer service staff will recommend the most suitable product for you.
1) Which material is mainly used for? Cutting, engraving or marking?
2) What is the max thickness of the cut?
3) How big working area you need?
2. How long can deliver the machine?
Common machine can be delivered within 3~7 days. Custom-made machine needs 12~14 days.
3. Is there any after-sales service?
Yes, we have a perfect after-sale service team to supply technical support to our customers.
Our technicians can assist you to install the machine and give you free training after you receive machine.
Delivery Port :Qingdao
Packing :According to customer requirements
Delivery Lead Time :7-15 Days
Supply Ability :500sets/month
