Product Details
| Brand Name | GOGO | Place of Origin | Zhejiang, China | |
| Model Number | 211B | Application | General | |
| Structure | Control | Standard or Nonstandard | Standard | |
| Power | Solenoid | Port Size | 1/4" | |
| Media | Water | Temperature of Media | Medium Temperature |
Product Description
1/4 inch miniature bi-stable solenoid valve, 3.6V-6V pulse valve water
Product parameters:
working voltage: DC3.6~6V
Coil resistance: 12 ohms
work form: positive pulse open valve, negative pulse off valve
pulse width: 30ms
working pressure: 0.02-1.0MPa
medium temperature: 1-80 ℃
life: ≥ 30 million times
Insulation performance: live and non-live conductor can withstand AC600V 1min without breakdown or produce arcing phenomenon

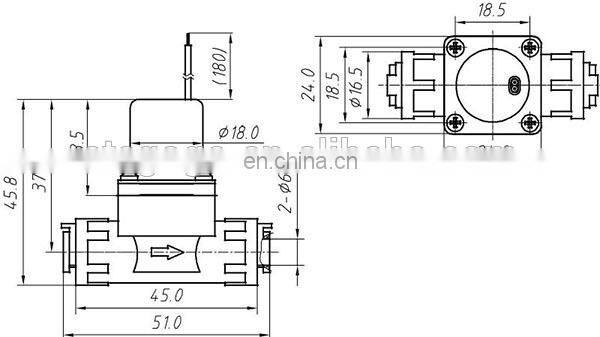

Dimensions:

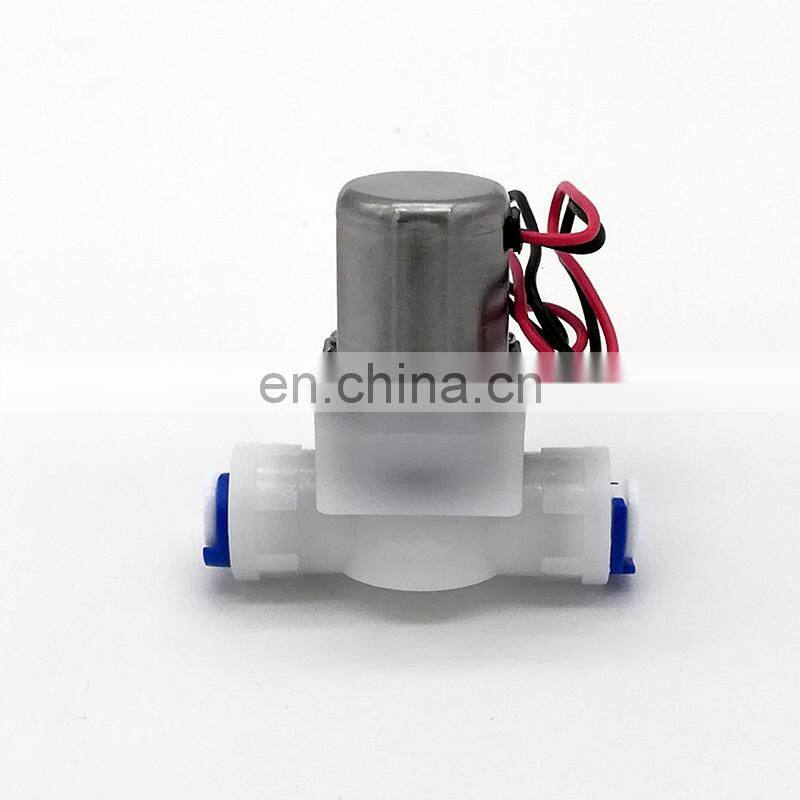

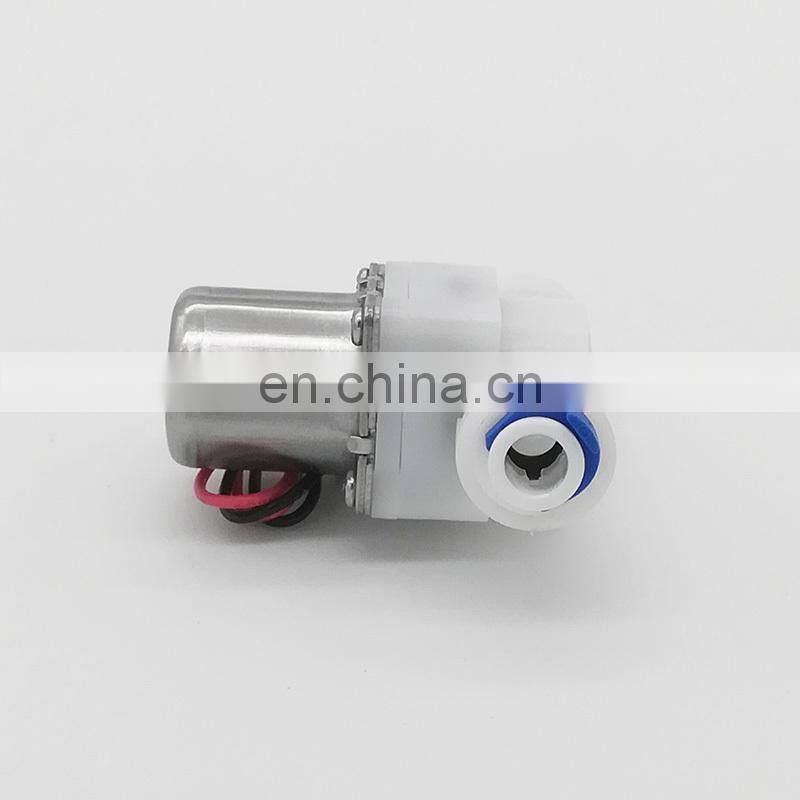

Picture:
Packaging & Shipping
1 piece per inner box, 450 pieces per master carton
1.Inner packing: opp bag, then carton box for each product 2.Outer packing: export standard carton, Foam outside protecting the goods against damage 3.Usually we ship your order by sea or by air... 4.We do our best to ship your order within 1 week after receiving your payment 5.We'll tell you the tracking number once your order has been sent 6.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
