Product Details
| Brand Name | GOGO | Place of Origin | Zhejiang, China | |
| Model Number | 372series | |||
| Application | General | Structure | Control | |
| Standard or Nonstandard | Standard | |||
| Power | Solenoid | Port Size | Standard | |
Product Description

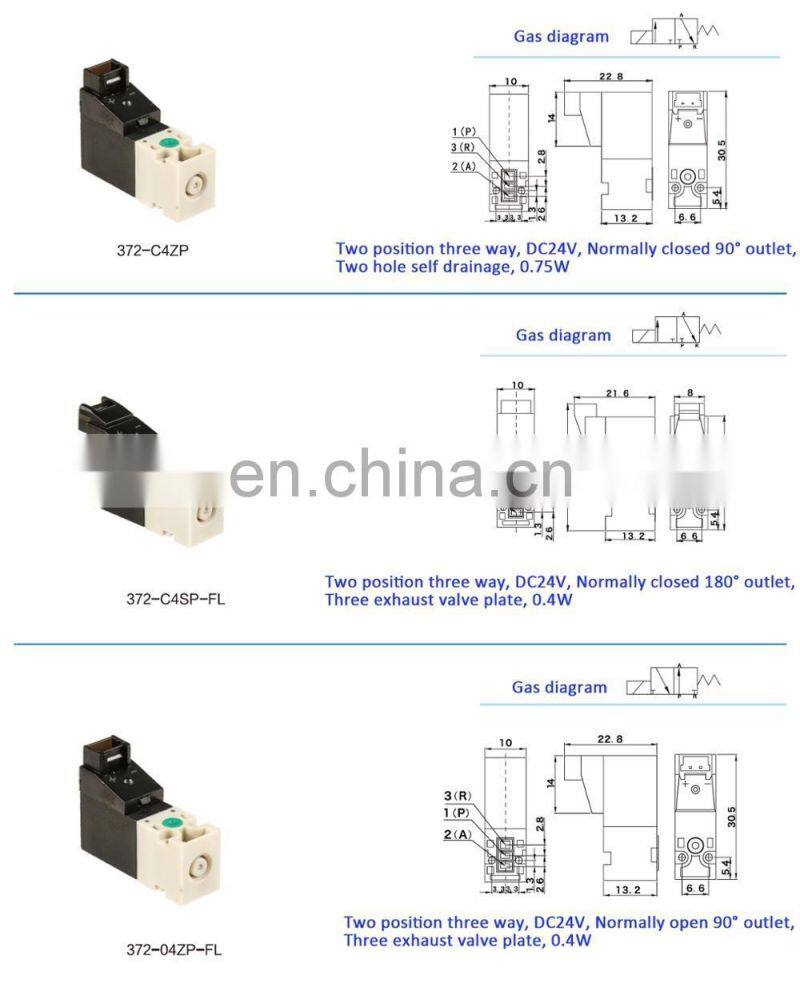

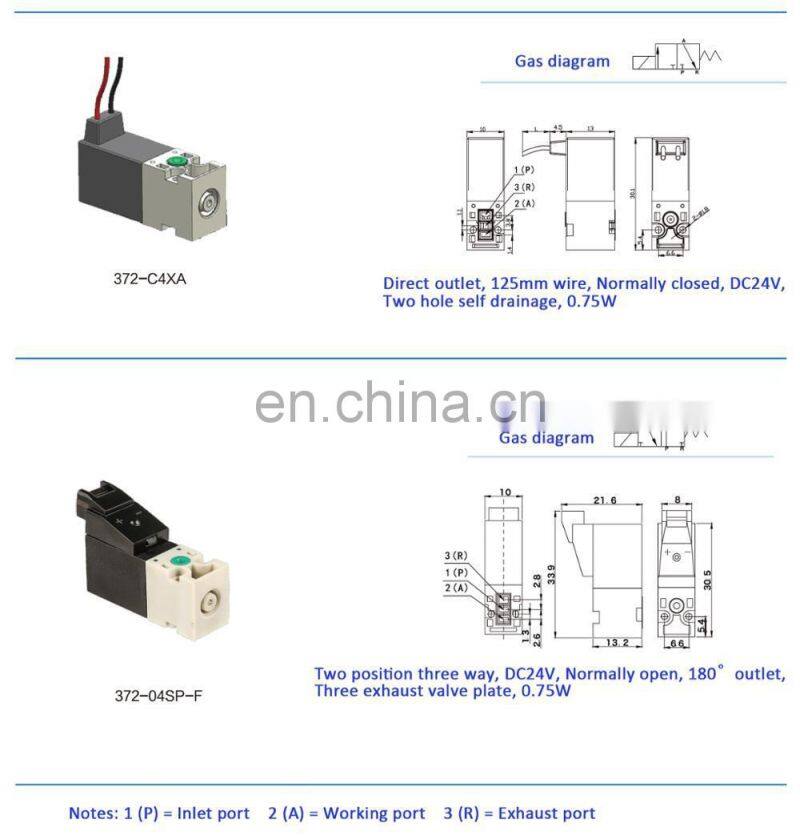

372 series 10mm Normally Closed free to install Voltage As Required pneumatic Miniature Solenoid Valve
More series click here
Comprehensive Parameter
Valve position function | Two position two/three way, Normally closed (NC) or Normally open (NO) |
Way of working | Cut-off type |
Installation method | Free to install |
Drift Diameter | 0.6mm, 0.8mm ( Large Flow Type) |
Nominal Flow | 14L/min (when 0.4w, 6 bar), 11.5L/min (when 0.75w, 6 bar) |
Work Pressure | 0-6 bar (NO), 0-7 bar (NC), -100kpa (Two functions of NC and NO) |
Medium and ambient temperature | -5℃ - 50℃ (But Unfrozen) |
Working medium | Filtered compressed air (Filtration level in line with ISO8573-15.4.4), Or inert gas |
Response time | on < 6ms, off < 8ms |
Manual device | Button-type manual switch |
Materials contact with medium
Body | Engineering plastics PA66, PA12 |
Seals | FKM (fluororubber), NBR (Nitrile Butadiene Rubber) |
Internal Parts | Stainless steel, Copper |
Electrical Parameters
Voltage | DC6V, DC12V, DC24V, AC110V, AC220V (As required) |
Voltage Tolerance | -5% - +10% |
Power Consumption | 0.4W, 0.75W (Large flow type), 1W (0.8 Drift diameter) |
Work cycle | 100% can work continuously |
Electrical connections | Outlet or lead directly |
Degree of protection | IP50, IP65 (Straight line type) |
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
4: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
1: Various style for each products and completely series automatic products for you to choose from.
3: High quality with competitive price
4: Sample order & small quantity order is ok
6: Provide free products information.
7. Reliable quality assured and active after-sell service
