Large Water Solenoid Valve Flange Type Cast Iron 12v 24v 110v 220v
US$ 40 - 700
/ Piece
1 Piece(Min. Order)
- Ningbo
- T/T Credit Card
You May Like
-
2 Inch Water Solenoid Valve Normall Close PU-50 50mm Original 2 Way NBR FKM
-
Normally Open Water Solenoid Valve 1 Inch PU-25K 25mm 220v
-
1/2 Inch Water Solenoid Valve 12 Volt PU-15 15mm
-
12v Electric Water Valve Low Pressure 1/2 Inch BSP
-
1 Inch Water Solenoid Valve High Temperature for Steam Hot Water
-
12v Water Solenoid Valves 3/8 Inch 2 Way Pneumatic Control Pilot Diaphragm Valve
Product Details
| Brand Name | large water solenoid valve | Place of Origin | Zhejiang, China | |
| Model Number | DF series | |||
| Standard or Nonstandard | Standard | Power | Solenoid | |
| Port Size | 1.5" 2" 2.5" 3" 4" 5" 6" 8" | |||
| Temperature of Media | Medium Temperature |
Product Description

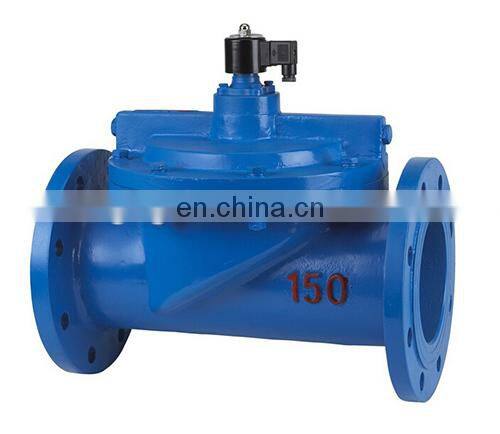

Large water solenoid valve flange type cast iron 12v 24v 110v 220v
1. Normally closed
2. Normally open
Specification
| Pattern: | Two-port two-position | |||
| Principium: | pilot diaphragm type | |||
| Control mode: | normally close / normally open | |||
| Valve body: | cast iron | |||
| Diaphragm material: | NBR: <80°C | |||
| Working pressure: | 0.5~8bar | |||
| Max pressure: | 10bar | |||
| Voltage: | AC220V AC110V DC12V DC24V | |||
| Medium: | air ,water , hot water ,oil ect | |||
| Application: | medium-pressure large-flow normally air water control system | |||
| Model | Pipe Flange | Orifice Diameter(mm) |
Principium | Work pressure ( bar ) |
Cv | Body material |
|
| PM-40F | 1.5" | 40 | pilot | NC | NO | 21 | Cast iron |
| 0.5-8 | 0.5-8 | ||||||
| PM-50F | 2" | 50 | 30 | ||||
| PM-65F | 2.5" | 65 | 52.5 | ||||
| PM-80F | 3" | 80 | 81.7 | ||||
| PM-100F | 4" | 100 | 128.4 | ||||
| PM-125F | 5" | 125 | 221.7 | ||||
| PM-150F | 6" | 150 | 291.7 | ||||
| PM-200F | 8" | 200 | 513.5 | ||||
Dimensions
(MM)
| Model | L | H | D | D1 | D2 |
| 40 | 169 | 196 | 150 | Φ110 | 4-Φ18 |
| 50 | 201 | 200 | 165 | Φ125 | 4-Φ18 |
| 65 | 259 | 280 | 185 | Φ145 | 4-Φ18 |
| 80 | 280 | 287 | 200 | Φ160 | 8-Φ18 |
| 100 | 352 | 330 | 220 | Φ180 | 8-Φ18 |
| 125 | 430 | 437 | 250 | Φ210 | 8-Φ18 |
| 150 | 454 | 460 | 285 | Φ240 | 8-Φ22 |
| 200 | 573 | 547 | 340 | Φ295 | 12-Φ22 |
| Materials of construction | |||
| Parts in contact with the medium | |||
| Valve of body | Brass | SS304 | |
| Seals | NBR ,EPDM ,FKM | ||
| Magnetic isolation pipe | SS304 | ||
| Core | Stainless steel alloy | ||
| Spring | SS304 | ||
| The shading | Copper | ||
