Normally Open 2 Inch Water Solenoid Valve for Irrigation
- Ningbo
- T/T Credit Card
You May Like
Product Details
| Brand Name | 2 inch water solenoid valve for irrigation | Place of Origin | Zhejiang, China | |
| Model Number | PU-50K | Structure | Control | |
| Standard or Nonstandard | Standard | Power | Solenoid | |
| Port Size | 1/8" 1/4" 3/8" 1/2" 1" 2" | |||
| Temperature of Media | Medium Temperature |
Product Description

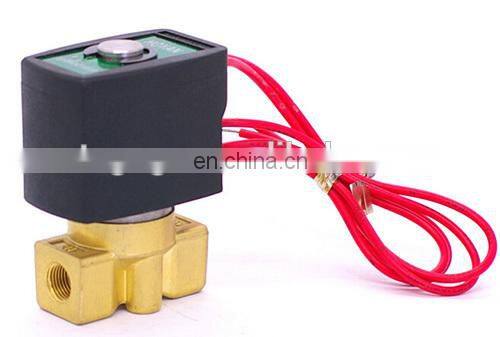

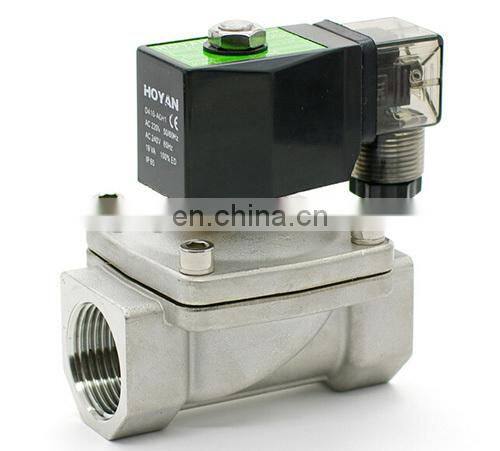

Normally open 2 inch water solenoid valve for irrigation
1. Brass ;
2. Stainless steel .
Specification
| Model | Pipe | Orifice Diameter(mm) | Principium | CV | Body material | Seal | Work Pressure |
| PU-03 | 1/8" 1/4" | 2.5 | direct acting type | 0.3 | Brass or SS304 | NBR | 0-10bar |
| PU-04 | 1/4" | 4 | 0.58 | 0-10bar | |||
| PU-05 | 1/4" | 5 | 0.65 | 0-7bar | |||
| PU-06 | 1/4" | 6 | 0.8 | 0-5bar | |||
| PU-10 | 3/8" | 15 | Kick pilot type | 4.6 | 0-10bar | ||
| PU-15 | 1/2" | 15 | 4.6 | 0-10bar | |||
| PU-20 | 3/4" | 20 | 8.5 | 0-10bar | |||
| PU-25 | 1" | 25 | 12 | 0-10bar | |||
| PU-35 | 1-1/4" | 35 | 24 | 0-10bar | |||
| PU-40 | 1-1/2" | 35 | 29 | 0-10bar | |||
| PU-50 | 2" | 50 | 48 | 0-10bar | |||
| PU-25F | Flange | 25 | 12 | 0-10bar | |||
| PU-35F | 35 | 24 | 0-10bar | ||||
| PU-40F | 40 | 29 | 0-10bar | ||||
| PU-50F | 50 | 48 | 0-7bar |
Dimensions
(mm)
| Size | A | B | C | D | E |
| DN2.5 | 40 | 26 | 66 | 27 | 30 |
| DN4/5/6 | 40 | 26 | 75 | 59.5 | 38 |
| DN10 | 65 | 47 | 93 | 59.5 | 38 |
| DN15 | 65 | 47 | 93 | 59.5 | 38 |
| DN20 | 72 | 54 | 100 | 59.5 | 38 |
| DN25 | 90 | 70 | 108 | 59.5 | 38 |
| DN35/40 | 120 | 90 | 131 | 64.5 | 48 |
| DN50 | 150 | 112 | 146 | 64.5 | 48 |
| DN35/40(DC) | 120 | 90 | 150 | 65.5 | 63 |
| DN50(DC) | 150 | 112 | 165 | 65.5 | 63 |
| Materials of construction | |||
| Parts in contact with the medium | |||
| Valve of body | Brass | SS304 | |
| Seals | NBR ,EPDM ,FKM | ||
| Magnetic isolation pipe | SS304 | ||
| Core | Stainless steel alloy | ||
| Spring | SS304 | ||
| The shading | Copper | ||
