Home > Instruments & Meters > Test Instrument > Test Machine > Digital Display Hydraulic Universal Testing Machine 300KN 600KN 1000KN

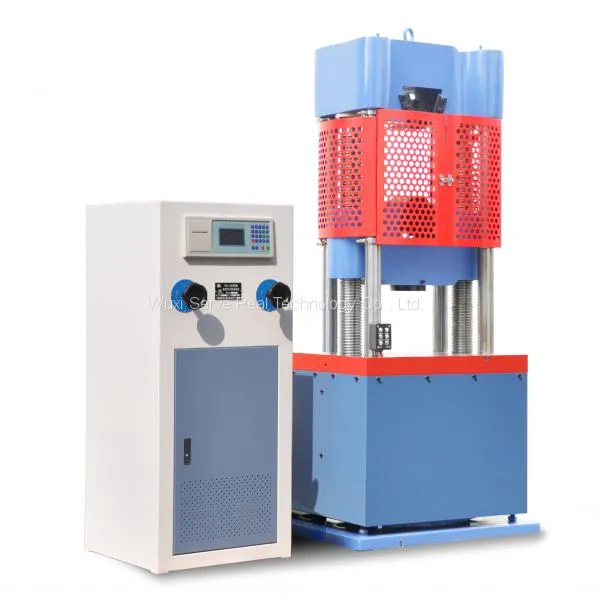

Digital Display Hydraulic Universal Testing Machine 300KN 600KN 1000KN

US$ 2000 - 2500 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

SRI

Place of Origin:

China

Model Number:

UTM-300/600/1000

Contact Supplier Request Quote Chat Now

Wuxi Serve Real Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI, SHENZHEN,NINGBO, QINGDAO

Delivery Detail:

5 days

Product Details
Company Profile
Contact Us

Brand Name SRI

Place of Origin China

Model Number UTM-300/600/1000

Description

This machine is mainly used to perform tension, compression, flexural test on metal materials under static force, also can be used for construction material mechanical test. Also equips cold bending accessories for metal process test.

Technical specifications

Term	Spec.
Max capacity(KN)	100		300	600	1000
Testing range(KN)	0~100		0-300	0-600	0-1000
Indication value accuracy	±1%		±1%	±1%	±1%
Pressure keeping time	≥30s		≥30s	≥30s	≥30s
Upper lower jaw seat max. distance(tension test)	450mm		500mm	500mm	600mm
Upper lower platen max. distance( compression test)	0~450mm		0-500mm	0-500mm	0-600mm
Two supporting points max. distance( flexural test)	100mm~300mm		100-360mm	100-360mm	100mm~420mm
Round sample clamping dia.( stretch test)	Ø6mm~Ø22mm		Ø8mm~Ø32mm	Ø13mm~Ø40mm	Ø20mm~Ø60mm
Flat sample clamp thickness( stretch test)	0~15mm		0~15mm	0~15mm	0~40mm
Piston stroke	150mm		150mm	200mm	200mm
Overall size	Main machine	665mm×485mm×153mm	740mm×460mm×1970mm	880mm×600mm×2020mm	960mm×620mm×2150mm
	Controller	550mm×600mm×1270mmm	550mm×600mm×1270mmm	550mm×600mm×1270mmm	550mm×600mm×1270mmm
Net weight	Main machine	600kg	1200kg	1700kg	2200kg
	Controller	250kg	250kg	250kg	250kg
