Home > Instruments & Meters > Test Instrument > Test Machine > Servo Hydraulic Universal Testing Machine 300KN 600KN 1000KN

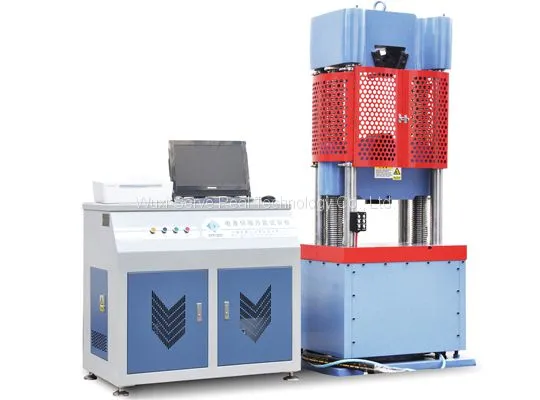

Servo Hydraulic Universal Testing Machine 300KN 600KN 1000KN

Wuxi Serve Real Technology Co., Ltd.

Servo Hydraulic Universal Testing Machine 300KN 600KN 1000KN thumbnail-1

Servo Hydraulic Universal Testing Machine 300KN 600KN 1000KN photo-1

US$ 12000 - 17000 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

SRI

Place of Origin:

China

Model Number:

UTM-300D/600D/1000D

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI, SHENZHEN,NINGBO, QINGDAO

Delivery Detail:

5 days

Product Details
Company Profile
Contact Us

Brand Name SRI

Place of Origin China

Model Number UTM-300D/600D/1000D

Description

The universal testing machine is used to perform stretch, compression, bending test of metal materials, also can be used for concrete and other construction materials strength test. Also equips cold-bending accessories for metal process test.

Features

1. Hydraulic loading, electric force test, computer for display and data process.

2. Easy operation, high accuracy.

Technical specifications

Term		Spec.
Max. Capacity		100KN	300	600	1000	2000
Testing range		0~100KN	0-300	0-600	0-1000	0-2000
Indication accuracy( from 20% F.S of each degree)		±1%	±1%	±1%	±1%	±1%
Pressure keeping time		≥30s	≥30s	≥30s	≥30s	≥30s
Upper lower jaw max. Distance ( stretch test, including piston stroke)		500mm	600mm	600mm	600mm	900mm
Upper lower platen distance ( compression test)		0~500m	0-600mm	0-600mm	0-600mm	750mm
Two supporting point max. Distance ( bending test)		100~270mm	100~350mm	100~400mm	100~400mm
Round sample clamping dia.( stretch)		φ6~φ22mm	Φ10~φ32mm	φ13~φ40mm	φ20~φ60mm	φ20~φ70mm
Flat sample clamping thickness( stretch test)		0~15mm	0~15mm	0~15mm	0~40mm	0~50mm
Piston max. Stroke		150mm	150mm	200mm	200mm
Motor power		2KW	2KW	2.5kW	2.5kW	3kW
Piston fastest lift speed( zero load)		100mm/min	80mm/min	80mm/min	80mm/min
Overall size	Main machine(mm)	60mm×490mm×1600mm	740mm×460mm×1900mm	850mm×560mm×2000mm	960×620×2150	1200×850×2900
	Control cabinet(mm)	1000mm×600mm×910mm	1000mm×600mm×910mm	1000mm×600mm×910mm	550×600×1270	1150×900×1270
Net weight	Main machine(kg)	600	1200	1750	2500	5500
	Dynamometer (kg)	250	250	250	250	250
