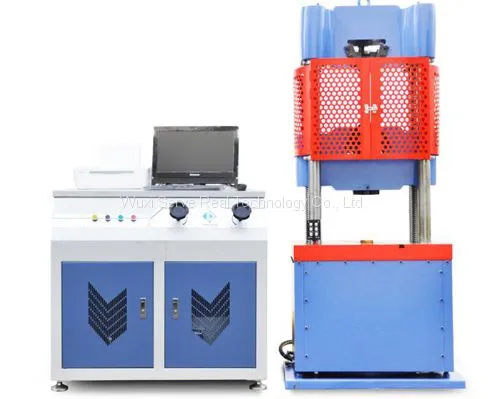

Computer Display Hydraulic Universal Testing Machine 300KN 600KN 1000KN
- SHANGHAI, SHENZHEN,NINGBO, QINGDAO
- T/T PayPal Other
- 5 days
You May Like
-
Servo Hydraulic Universal Testing Machine 300KN 600KN 1000KN
-
Servo Control Steel Strand Testing Machine
-
2000KN 3000KN Auto Rod Compression Testing Machine
-
2000KN 3000KN Computerized Compression Testing Machine
-
Los Angeles Abrasion Machine ASTM C131 EN1097-2 AASHTO T-96
-
Micro-Deval Abrasion Testing Machine
Product Details
| Brand Name | SRI | Place of Origin | China | |
| Model Number | UTM-300C/600C/1000C |
Product Description
Description
The universal testing machine is used to perform stretch, compression, bending test of metal materials, also can be used for concrete and other construction materials strength test. Also equips cold-bending accessories for metal process test.
Technical specifications
Term | Spec. | |||||
Max. Capacity(KN) | 100 | 600 | 1000 | |||
Testing range(KN) | 0-100 | 0-300 | 0-600 | 0~1000 | ||
Indication value accuracy(after 20% F.S of each degree) | ±1% | ±1% | ±1% | ±1% | ||
Pressure keeping time | ≥30s | ≥30s | ≥30s | ≥30s | ||
Upper lower jaw max. Distance ( stretch test, including piston stroke) | 500mm | 600mm | 600mm | 600mm | ||
Upper lower platen distance ( compression test) | 0~600m | 0~600m | ||||
Two supporting point max. Distance ( bending test) | 100~300mm | 100~360mm | 100~360mm | 100~420mm | ||
Round sample clamping dia.( stretch) | φ6~φ22mm | φ8~φ32mm | φ13~φ40mm | φ20~φ60mm | ||
Flat sample clamping thickness( stretch test) | 0~15mm | 0~15mm | 0~30mm | 0~40mm | ||
Piston max. Stroke | 150mm | 150mm | 200mm | |||
Overall size
| Main machine | 665mm×485mm×1536mm | 740mm×460mm×1970mm | 880mm×600mm×2020mm | 960mm×620mm×2150mm | |
Controller | 1550mm×900mm×1270mm | 550mm×600mm×1270mm | 550mm×600mm×1270mm | 500mm×600mm×1270mm | ||
Net weight
| Main machine | 600kg | 1200kg | 1700kg | 2200kg | |
Controller | 200kg | 250kg | 250kg | 250kg | ||
