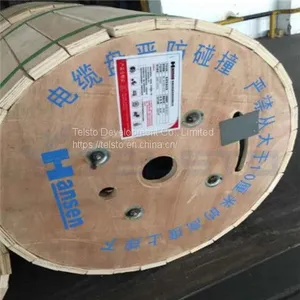

Low Loss 7/8 RF Coaxial Feeder Cable Supplier
US$ 1 - 2
MOQ: 2000 Meters
Key Specifications
Get Latest Price
Brand Name:
Hansen
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2 Meter Jumper Cable 1/2″ Superflex With 7/16 Male DIN ConnectorUS$ 1 - 2MOQ: 200 Meters -
Low PIM 1 Meter 1/2″ Super Flexible RF Jumper Cable With N Male to N Male ConnectorUS$ 1 - 2MOQ: 200 Meters
-
1/2″Superflex Jumper Cable, DIN Male to DIN Male Right Angle, 3mUS$ 1 - 2MOQ: 200 Meters
-
1/2″Superflex Jumper, 4.3-10 MINI DIN Male 2mUS$ 1 - 2MOQ: 200 Meters
-
rf Mini DIN 4.3-10 Female to 4.3-10 Female Connector for 1meter 1/2 Superflexible Jumper CableUS$ 1 - 2MOQ: 200 Meters
Brand Name
Hansen
Place of Origin
China
Product Description
Model Number: RF Feeder Cable
Construction Characteristics:
High physically foaming insulation, copper tape formed, welded and corrugated to manufacture the outer conductor.
Advantages:
Low attenuation, low standing wave, high shielding, damp-proof gas free maintenance, flexible, high anti tensile strength.
Application Range:
Broadcast and television, microwave telecommunication, military use, aerospace, vessel or other circumstance where RF cable is needed.
Inner Conductor: Smooth Copper Tube/ Copper Coating Aluminum/ Helix Copper Tube
Dielectric : Physical Foaming Polyethelene(PE)
Outer Conductor: Corrugated Copper Tube/ Annularity Copper Tube/ Helix Copper Tube
Jacket : Black PE or Low Smoke Halogen-free Fire-retardant
You can choose:
| Type | Characteristic Impendance(Ohm) |
Inner Conductor (mm) |
Insulation (mm) |
Outer Conductor (mm) |
Outer Sheath (mm) |
Attenuation at 900MHz (dB/100m) |
Attenuation at 1800MHz (dB/100m) |
| 1/4" SF | 50 | 1.90 | 5.00 | 6.40 | 7.60 | 18.40 | 27.10 |
| 1/4" | 50 | 2.60 | 6.00 | 7.70 | 8.90 | 13.10 | 19.10 |
| 3/8" SF | 50 | 2.60 | 7.00 | 9.00 | 10.20 | 13.50 | 19.70 |
| 3/8" | 50 | 3.10 | 8.00 | 9.50 | 11.10 | 10.90 | 16.00 |
| 1/2" SF | 50 | 3.55 | 9.00 | 12.00 | 13.70 | 10.00 | 14.50 |
| 1/2" | 50 | 4.80 | 12.00 | 13.90 | 16.00 | 7.15 | 10.52 |
| 5/8" | 50 | 7.00 | 17.00 | 19.70 | 22.00 | 5.07 | 7.54 |
| 7/8" F | 50 | 9.40 | 22.00 | 24.90 | 27.50 | 4.05 | 6.03 |
| 7/8" SF | 50 | 9.40 | 22.00 | 24.90 | 27.50 | 4.30 | 6.30 |
| 7/8" | 50 | 9.00 | 22.00 | 24.90 | 27.50 | 3.87 | 5.84 |
| 7/8" Low Loss | 50 | 9.45 | 23.00 | 25.40 | 28.00 | 3.68 | 5.45 |
| 1-1/4" | 50 | 13.10 | 32.00 | 35.80 | 39.00 | 2.82 | 4.27 |
| 1-5/8" | 50 | 17.30 | 42.00 | 46.50 | 50.00 | 2.41 | 3.70 |
