2090PG1S22C2 Pulp and Paper Pressure Transmitter
- SHANGHAI
- T/T
- 30 days
You May Like
Product Details
| Brand Name | Rosemount | Place of Origin | China | |
| Model Number | 2090PG1S22C2 |
Product Description

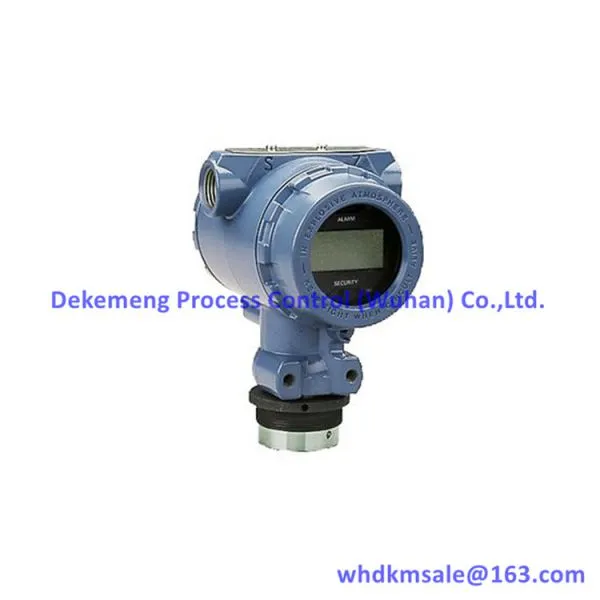

2090PG1S22C2 Pulp and Paper Pressure Transmitter
Introduction
With its compact size and rugged construction, the Rosemount 2090P Pulp and Paper Pressure Transmitter is ideal for the pulp and paper industries. This lightweight transmitter is engineered with a 1 in. flush mount compatible with PMC process connection or 1 1/2 in. threaded mounting connection. This transmitter can be calibrated to ranges as low as 0 to 1.5 psi (0.1 bar) and as high as 0 to 300 psi (20.7 bar) for reliable measurement capabilities.
Dekemeng Process Control (Wuhan) Co.,Ltd.
Alisa Peng Sales Representative
Tel: +86 27 5101 3708
MOB: +86 133 0711 1202(wechat&Skype)
Skype:whdkmsale@163.com
FAX:+86 27 8806 8180
Email:whdkm@qq.com/whdkmsale@163.com
Specifications
Accuracy
0.20%
Power Supply
10.5-42.4 V
Warranty
Up to 5-year limited warranty
Rangedown
Up to 20:1
Communication Protocol
4-20 mA HART
Measurement Range
Up to 300 psig (20,7 bar) Gage, Up to 300 psia (20,7 bar) Absolute
Process Wetted Material
316L SST
Diagnostics
Basic Diagnostics
Certifications/Approvals
Hazardous location, see full specs for complete list of certifications
