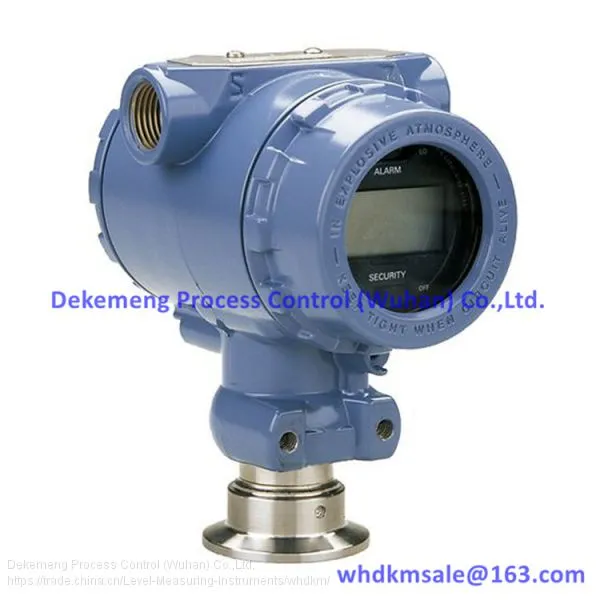

Rosemount 2090F Hygienic Pressure Transmitter

Dekemeng Process Control (Wuhan) Co.,Ltd.

Alisa Peng  Sales Representative

Tel： +86 027-51013708

Mob: +86 13307111202

FAX：+86 027-88068180

Email：whdkmsale@yahoo.com,whdkmsale@163.com

Http: //www.

Rosemount™ 2090F Hygienic Pressure Transmitter

Introduction

Designed for hygienic applications, the Rosemount 2090F Hygienic Pressure Transmitter is specifically engineered for the pharmaceutical and food and beverage industries. Built with industry standard process connections, this device connects to sanitary fittings without special mounting hardware. In addition, this hygienic pressure transmitter conforms to 3-A Sanitary Standards, allowing you to meet tough process requirements.

Specifications

Accuracy

     0.20%

Power Supply

10.5-42.4 V

Warranty

Up to 5-year limited warranty

Rangedown

Up to 20:1

Communication Protocol

4-20 mA HART

Measurement Range

Up to 300 psig (20,7 bar) Gage, Up to 300 psia (20,7 bar) Absolute

Process Wetted Material

316L SST

Diagnostics

Basic Diagnostics

Certifications/Approvals

3-A Sanitary Standards, hazardous location, see full specs for complete list of certifications

Features

Tri Clamp process connection designed for standard sanitary fittings

Conforms to 3-A Sanitary Standards for hygienic application compliance

Utilizes single-filled sensor system for reliability and accuracy

Features CIP/SIP service for process temperatures of up to 140 ℃

Fully configurable LCD displays process variable, percent of range and diagnostic messages

Normal Models

2090FA1S2DE1B4M5

2090FA2S2DE1B4M5

2090FA3S2DE1B4M5

2090FG1S2DE1B4M5

2090FG2S2DE1B4M5

2090FG3S2DE1B4M5

2090FA1S2DF1B4M5

2090FA2S2DF1B4M5

2090FA3S2DF1B4M5

2090FG1S2DF1B4M5

2090FG2S2DF1B4M5

2090FG3S2DF1B4M5

2090FA1S2DE2B4M5

2090FA2S2DE2B4M5

2090FA3S2DE2B4M5

2090FG1S2DE2B4M5

2090FG2S2DE2B4M5

2090FG3S2DE2B4M5

2090FA1S2DF2B4M5

2090FA2S2DF2B4M5

2090FA3S2DF2B4M5

2090FG1S2DF2B4M5

2090FG2S2DF2B4M5

2090FG3S2DF2B4M5
