IEC 61215 IEC61646 Standard Solar Panel PV Module UV Aging Preconditioning System Environment Test Chamber Testing Machine

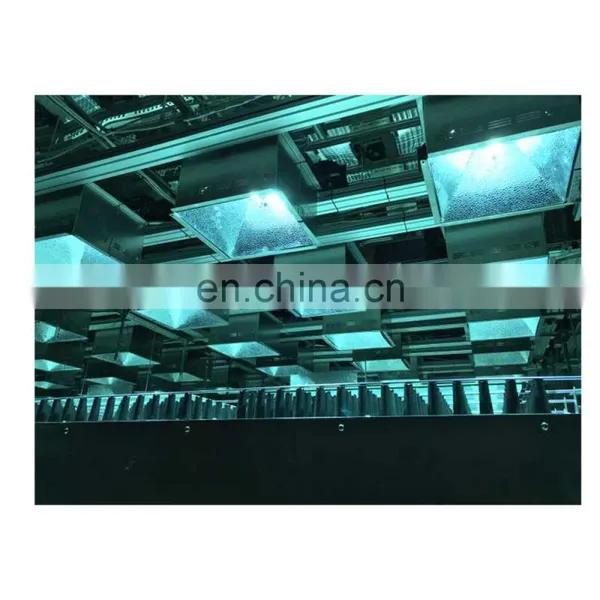

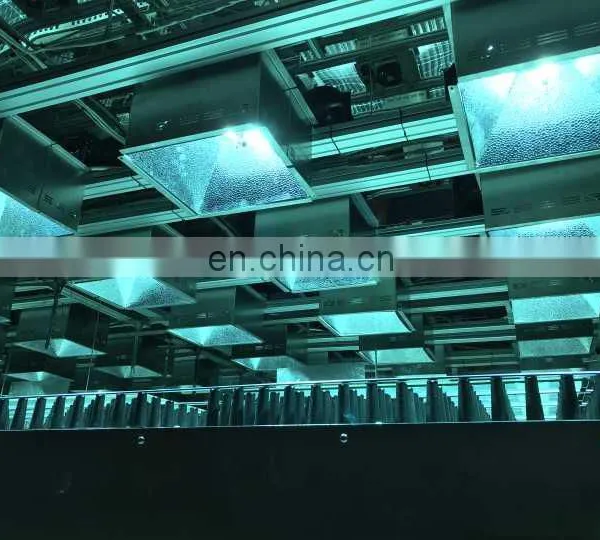

IEC 61215 IEC61646 Standard Solar Panel PV Module UV Aging Preconditioning System Environment Test Chamber Testing Machine photo-1

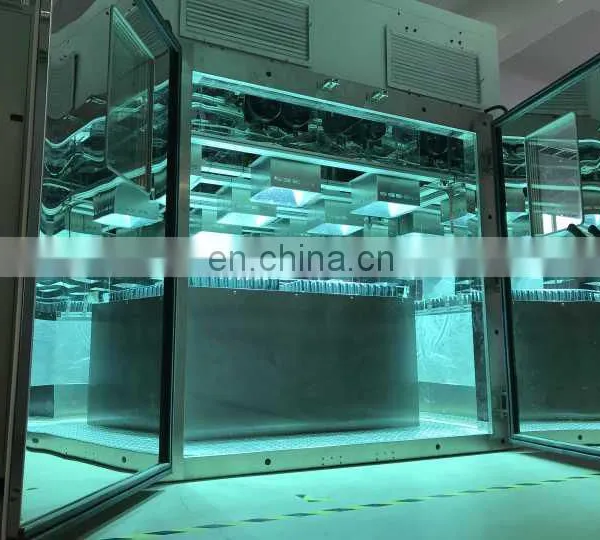

IEC 61215 IEC61646 Standard Solar Panel PV Module UV Aging Preconditioning System Environment Test Chamber Testing Machine photo-2

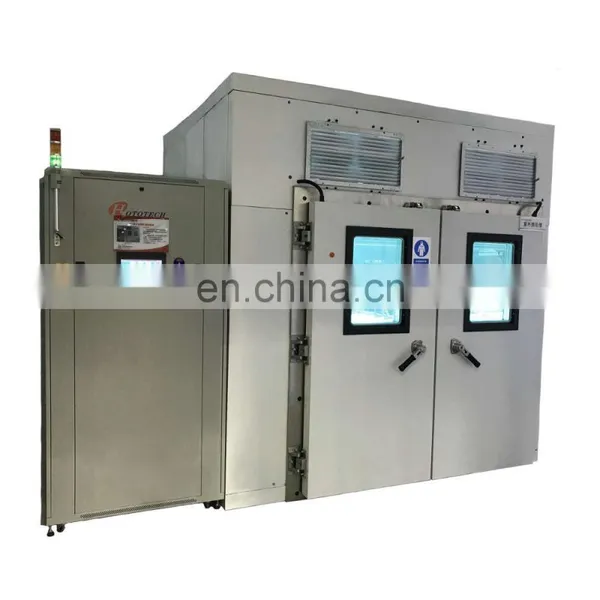

IEC 61215 IEC61646 Standard Solar Panel PV Module UV Aging Preconditioning System Environment Test Chamber Testing Machine photo-3

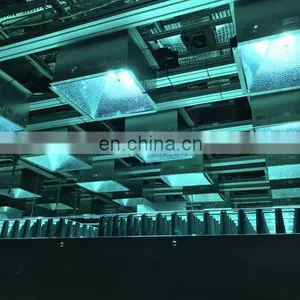

IEC 61215 IEC61646 Standard Solar Panel PV Module UV Aging Preconditioning System Environment Test Chamber Testing Machine photo-4

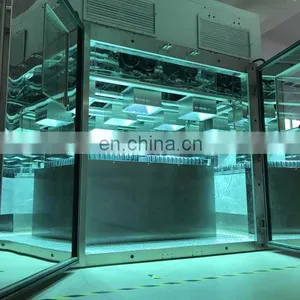

IEC 61215 IEC61646 Standard Solar Panel PV Module UV Aging Preconditioning System Environment Test Chamber Testing Machine photo-5

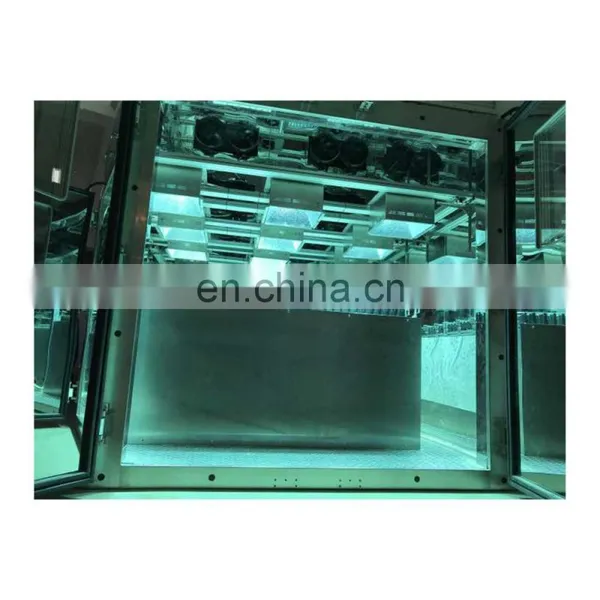

IEC 61215 IEC61646 Standard Solar Panel PV Module UV Aging Preconditioning System Environment Test Chamber Testing Machine photo-6
US$ 47,058.82 - 51,470.58 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HOTOTECH
Place of Origin:
Guangdong, China
Model Number:
HTPV-25
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Brand Name HOTOTECH
Place of Origin Guangdong, China
Model Number HTPV-25
Power Electronic
Product Description



 IEC 61215 IEC61646 standard Solar panel PV Module UV  aging Preconditioning system environment test chamber Testing Machine



Standard :

Accoording to IEC61215-2:2016, IEC61646 etc standard



Purpose:

to precondition the module with ultra-violet (UV) radiation before the thermal cycle/humidity freeze tests to identify those materials and adhesive bonds that are susceptible to UV degradation



Specifications

1.Use material:can completely obstruct ultraviolet rays,tightness,good thermal insulation’s high quality materials

2.Machine UV total irradiation area:more than 2000mm×2000mm,meanwhile satisfy 2 pcs module (2m×1m)

3.Light source life :system use Xenon lamp single lamp life is 1000 hours , delivery offer one set of spare part, use the life at above 2000 hours

4.Single lamp UVA and UVA relative energy rate:UVB approx occupy total energy 3%~10%

5.Irradiation strength:wavelength 280nm~385nm’s irradiation strength can reach about 100W/m²,280nm~320nm

6.Irradiance uniformity:be better than ±15%

7.Real-time monitor and show UVA and UVB strength

8.UVA (320nm~385nm), UVB(280~320nm) Each one of the fiber optic probes

9.Module surface temperature:60℃±5℃

10.Temperature resolution:0.1℃

11.Ozone: almost no ozone is produced

12.Light ways :upper light, module test plane vertical light source

13.Touch screen operate and real-time monitor , when reached the set value will automatic cut off the light source

14.Real-time figure show module surface temperature, measurement accurate±0.1℃
