PV Module Mechanical Load Tester Pv Module Loading Compressive Strength Tester
US$ 888 - 888
/ Set
1 Set(Min. Order)
- ShenZhen YanTian
- T/T Credit Card
You May Like
-
IEC61215 UL1703 PV Module Hail Impact Testing Machine /Hail Impact Testing Equipment /Hail Impact Tester
-
85%RH And 85 Celsius Damp-heating Environment Chamber Power Failure Procedural Memory
-
IEC61215 IEC61646 UV Preconditioning Testing Machine UV Radiation Testing Machine UV Aging Test Chamber for PV Module
-
Visual Inspection Testing Equipment/PV Module Appearance Testing Machine
-
Peeling Strength Testing Machine Solar Panel Peeling Strength Tester PV Module Back Strip Strength Testing Machine
-
Wet Leakage Current Testing Machine Solar Panel Leakage Current Test Equipment pv Module Current Testing System
Product Details
| Brand Name | HOTOTECH | Place of Origin | Guangdong, China | |
| Model Number | HTPV-08, HTPV-12 | Power | Electronic |
Product Description
Product Description
HTPV-08

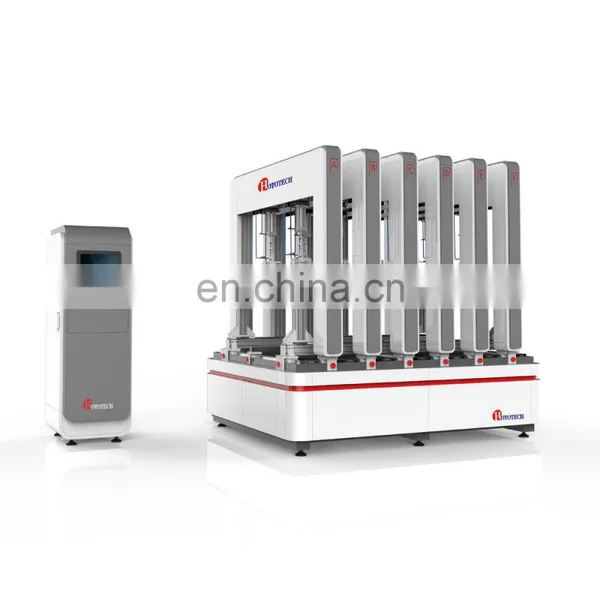

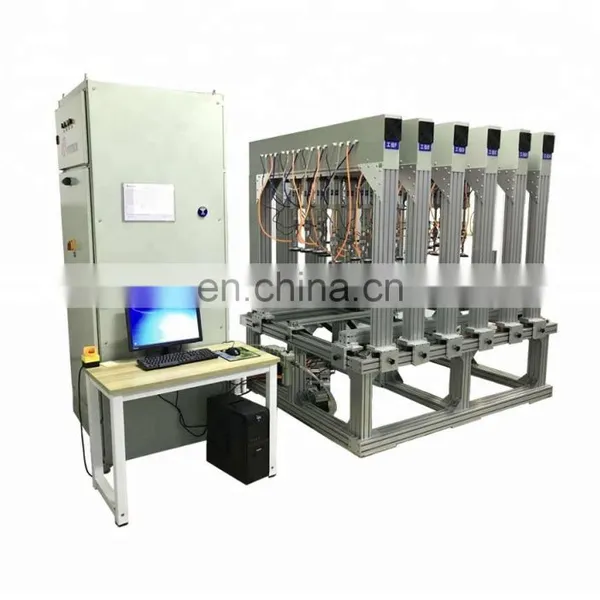

Name:PV Module Mechanical Load Tester
Mechanical load testing equipment
Pv module loading compressive strength tester
Standard:According to IEC 61215, UL1703, IEC62782 standard requirement
Purpose:
This test is to determine the ability of the module to withstand wind , snow , static or ice loads
Technical specifications:
| dimension | L 280 × D 180 × H 195 cm |
| load | Positive load 5400Pa, reverse load :2400Pa (Pressure can setting) |
| Cycle times | free setting |
| Dynamic load test frequency | 7s±3s |
| Dynamic load | 1000Pa,1000tims |
| Pressure control accurate | 5% |
| Pneumatic and force value feedback ways | low friction force cylinder,tensile pressure sensor(accurate:0.1N) |
| The maximum test dimension | 2000mm×1000mm(can Customized) |
| Current continuity system | DC power, DC 120V/20A |
| Cylinder | 4 groups , in total 8 pieces |
| Single the maximum output | > 200 kg |
| Telescopic stroke | 150mm |
| Sucker diameter | 120mm |
| Sucker(with cylinder) space | horizontal and vertical≤200mm |
| rotation angle | ≥15° |
| Report support output | World, Excel, PDF , JPG etc format |
