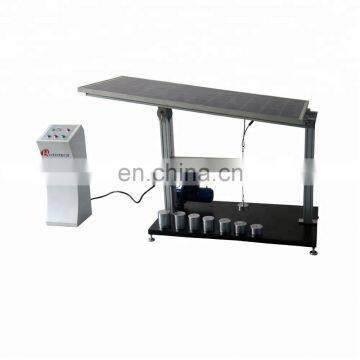

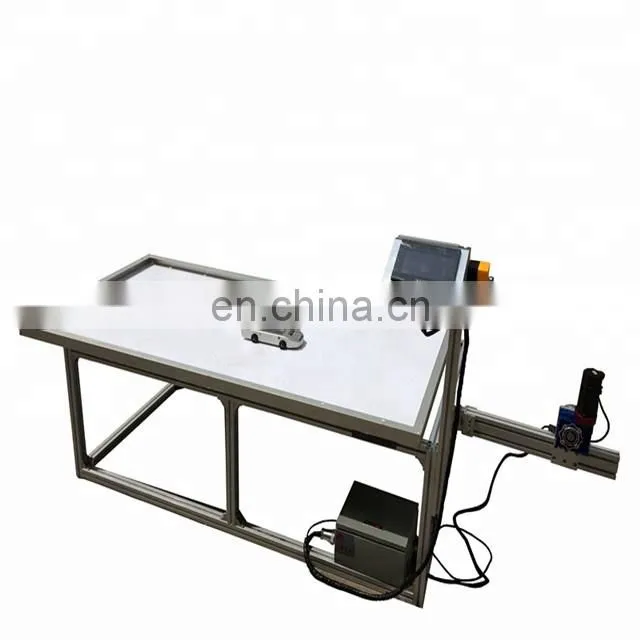

PV Module Cut Susceptibility Testing Machine Solar Panel Cut Susceptibility Testing Machine PV Module Scratch Resistance Tester
US$ 599 - 599
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HOTOTECH
Place of Origin:
Guangdong, China
Model Number:
HTPV-02, HTPV-02
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen Zhen YanTian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PV Module Mechanical Load Tester Pv Module Loading Compressive Strength TesterUS$ 888 - 888MOQ: 1 Set -
IEC61215 UL1703 PV Module Hail Impact Testing Machine /Hail Impact Testing Equipment /Hail Impact TesterUS$ 26,086.96 - 31,884.06MOQ: 1 Set
-
85%RH and 85 Celsius Damp-heating Environment Chamber Power Failure Procedural MemoryUS$ 1,423 - 1,423MOQ: 1 Set
-
IEC61215 IEC61646 UV Preconditioning Testing Machine UV Radiation Testing Machine UV Aging Test Chamber for PV ModuleUS$ 200 - 800MOQ: 1 Set
-
Visual Inspection Testing Equipment/PV Module Appearance Testing MachineUS$ 300 - 900MOQ: 1 Set
Brand Name
HOTOTECH
Place of Origin
Guangdong, China
Model Number
HTPV-02, HTPV-02
Power
Electronic
Product Description
HTPV-02
Name:PV Module cut Susceptibility testing machine
Solar panel Cut Susceptibility Testing Machine
PV module scratch resistance tester
Standard:According to IEC61730-2 , UL1703 standard requirement
Purpose:
to determine whether any front and rear surfaces of the module of polymeric materials are capable of withstanding routine handling during installation and maintenance without exposing personnel to the danger of electric shock
Technical specifications:
| operate table | Aluminum alloy material |
| size | approx 1.4m×0.65m |
| Operate table include | tracking pulley wheel, tracking head slide and moving convenience |
| test fixture | |
| Adopt carbon steel blade | |
| thick requirement | 0.64mm±0.05mm |
| blade radius requirement | 0.115±0.025mm |
| Distance and angle | can adjust |
| saw bar | weights box |
| standard | IEC61730-2 |
| the point suffer gravity | 8.9N±0.5N |
| test fixture speed | 150±30mm/s |
