Solar Panel Wet Leakage Current Testing Machine/Solar Panel Testing Equipment/PV Module Testing Apparatus
US$ 5,000 - 6,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HOTOTECH
Place of Origin:
Guangdong, China
Model Number:
HTPV-08CD
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen YanTian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IEC61215-2:2016 the Newest Standard Dynamic Mechanical Load Tester /Testing Machine for PV ModuleUS$ 1,200 - 1,800MOQ: 1 Set -
Dynamic Mechanical Load Testing Machine/Dynamic Pressure Strength Testing Equipment/testing Apparatus for pv ModuleUS$ 40,000 - 45,000MOQ: 1 Set
-
PV Module Static Mechanical Load Tester/PV Module High Uniformity Staitc Mechanical Load Tester/ Solar Panel Testing MachineUS$ 1,500 - 1,800MOQ: 1 Set
-
Static Mechanical Load Testing Machine/Dynamic Mechanical Load Tester /PV Module Testing MachineUS$ 41,176.47 - 47,058.82MOQ: 1 Set
-
Solar Panel Mechanical Load Tester /PV Module Static Load Testing Machine / Testing Equipment for IEC61215-2:2016 StandardUS$ 60,000 - 80,000MOQ: 1 Set
Brand Name
HOTOTECH
Place of Origin
Guangdong, China
Model Number
HTPV-08CD
Power
Electronic
Company logo
Product Description

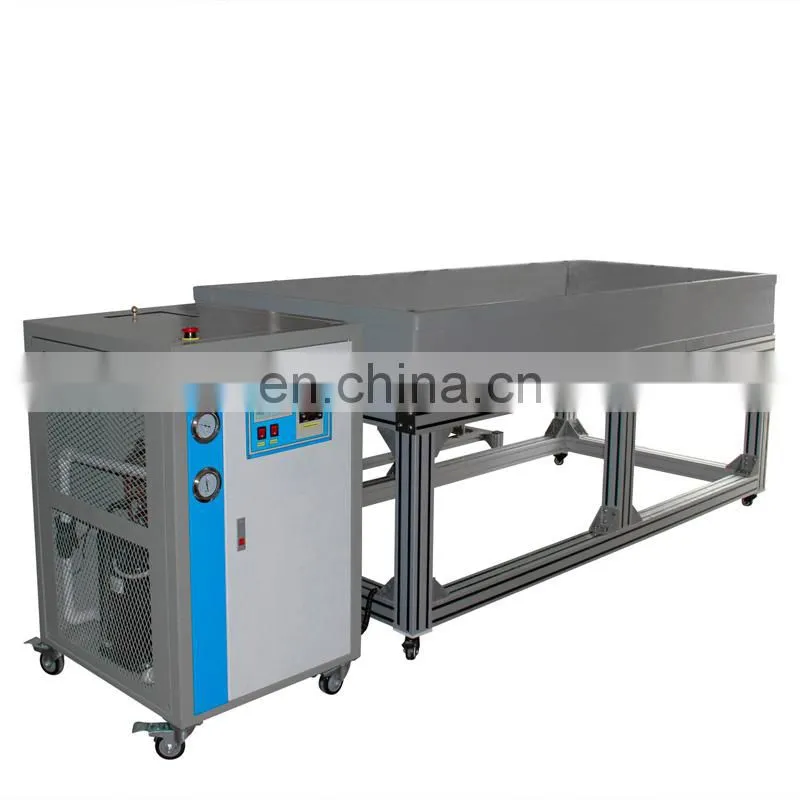

Solar panel wet leakage current testing machine/Solar panel testing equipment/PV Module testing apparatus
Standard
It's according to the IEC61215-2:2016 testing standard
Purpose
It's to evaluate the insulation of the module under wet operating conditions and verify that moisture from rain, fog, dew or melted snow does not enter the active parts of the module circuitry , where it might cause corrosion , a gound fault or a safety hazard
The Main Technical Specificatios
| Product Name | Solar panel wet leakage current testing machine/Solar panel testing equipment/PV Module testing apparatus |
| Test tank size | 2100×1000×250mm (W×D×H), thickness 15mm, material:plexiglass |
| Temperature control | Water constant temperature system reserached and development by HOTOTECH, temperature:22±3℃ |
| Liquid resistivity | Less than 3500Ω.cm |
| Spray system | nozle adopt UL laboratory special nozzle , multi direction adjustment spray the water pressure and flow amount can adjustable |
| Programmable insulation withstand voltage tester |
1. output voltage the maximum:0-5000V (adjustable) 2.leakage current the maximum limit value:5mA 3.Output speeed rate:500V/s 4.Insulation resistance test range :1MΩ~9999MΩ |
| The Main configuration |
1.Insulation withstand voltage tester 2.Water constant temperature system(control box) 3.Spray frame 4.Insulation water tank 5.Conductivity meter 6.Sample frame |
Products images show
