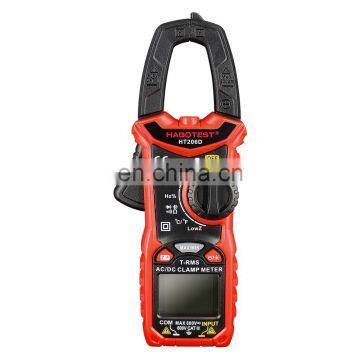

HT206D non contact Auto-ranging Multimeter on and off beep Portable Digital Clamp Multimeter
- 50000 Set / Sets per Month
- shenzhen
- T/T Credit Card
You May Like
-
High Quality AC Clamp Meter/clamp ammeter/leakage clamp meter
-
Cable Tester Underground Fiber Optic Cable Locator Lan Cable Tester
-
Multi-function digital clamp meter AC DC clamp meter
-
1000V/750V Auto Power Off Cheap Multimeter with T-RMS
-
1000VDC or 700VAC LCD,1999 countsDigital Multimetro-UK-830LN
-
Mini Digital Multimeter Universal Meter 0-600V Test AC DC Voltage Meters
Product Details
| Brand Name | HOTOTECH | Place of Origin | Guangdong, China | |
| Model Number | HT206D | Weight | Approx.260g | |
| Operating Temperature | normal temperature | Dimensions | 193mm*73mm*34mm | |
| Measuring Inductance Range | NO | Measuring Capacitance Range | 10nF-100mF | |
| Measuring Resistance Range | 6KΩ/60KΩ | Measuring Voltage Range | 600mV/6V/60V/600V/600V | |
| Measuring Current Range | 6A/60A/600A | Display Type | Digital Only |
Product Description
HT206D
True-RMS AC Clamp Meter
Introduction of functions
1. Intelligent anti-burning and overload protection
Full - range intelligent overload protection to prevent damage to license issuing instruments during measurement.
2. Automatic measuring range
The matching of engineering switch keys and dial plate effectively reduces the wear of dial plate and prolongs the service life of instrument.
The dial is not required to switch the measuring range and the resolving range, thus improving the measuring accuracy.
3. High - definition display screen with clear handwriting, clear display and convenient use in dark places
4. NCV non-contact measurement
NCV gear automatically detects the voltage intensity when the non-contact voltage sensing area is close to the circuit.
specifications
specifications | range | accuracy |
HT206A | ||
DC Voltage | 600V | ±(0.5%+3) |
| 600mV/6V/60V/600V/600V |
|
AC Voltage | 600V | ±(1.0%+5) |
| 6V/60V/600V/600V |
|
AC Current | 6A/60A/600A | ±(2.5%+5) |
Resistance | 6KΩ/60KΩ | ±(1.0%+3) |
| 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ |
|
Capacitance | 10nF/100nF/1uF/10uF/100uF/1mF/10mF |
|
Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
|
Duty | 1%~99% |
|
Temperature(℃/°F) | -40℃~1000℃ |
|
-40°F~1832°F |
| |
Counters | 6000 counters | |
Auto/manual range | Manual | |
Continuity (sound and light alarm) | √ | |
Diode test |
| |
Data hold | √ | |
NCV (sound and light alarm) |
| |
Backlight | √ | |
Flashlight | √ | |
Low battery indication | √ | |
Auto power off | √ | |
True RMS |
| |
LPF |
| |
Max/MIN | √ | |
LowZ |
| |
Power | 2*AAA(1.5V)batteries | |
Weight | Appro*.260g | |
Size | 193mm*73mm*34mm | |
Safety rating | EN61010-1,-2-030 EN61010-2-033,EN61326-1 CAT III 600V | |
